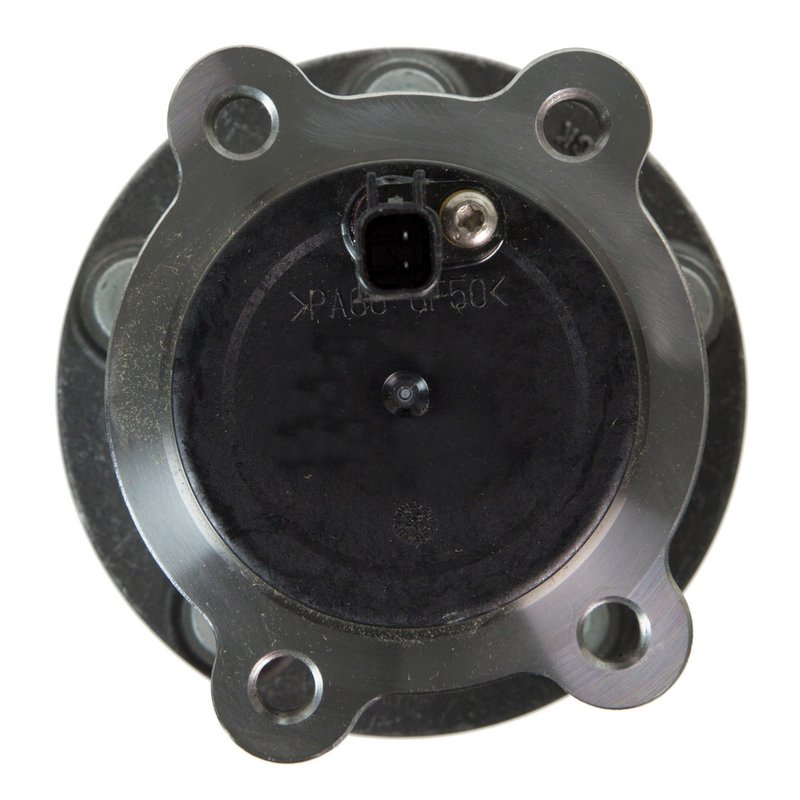

Moog 512499 Wheel Bearing and Hub Assembly - Rear

Overview of Moog 512499 Wheel Bearing and Hub Assembly

The Moog 512499 wheel bearing and hub assembly is engineered for reliable performance in Ford and Lincoln vehicles, including the C-Max, Escape, and MKC models. Designed to meet OEM specifications, this assembly integrates essential features such as an anti-lock brake sensor to support vehicle safety systems.

• Includes 5 wheel studs for secure wheel mounting
• Equipped with an anti-lock brake sensor for ABS compatibility
• Flange bolt hole quantity: 4 with a rectangular flange shape
• Wheel pilot diameter: 63.200 mm and brake pilot diameter: 63.400 mm
• Hub pilot diameter measures 81.300 mm for precise fitment
• Flange diameter of 136.500 mm and flange offset of 73.000 mm
• Bolt circle diameter of 107.900 mm (4.232 inches) ensures proper alignment

Technical Details and Specifications

The Moog 512499 hub assembly is designed with a 4-hole flange bolt pattern and a rectangular flange shape, providing a stable mounting surface. The 5 wheel studs accommodate standard lug nuts, ensuring compatibility with factory wheels. The wheel pilot diameter of 63.200 mm and brake pilot diameter of 63.400 mm allow for accurate centering of the wheel and brake components. The hub pilot diameter of 81.300 mm ensures a precise fit on the axle shaft. Additionally, the included anti-lock brake sensor integrates seamlessly with the vehicle’s ABS system, maintaining safety and control during braking.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with select Ford and Lincoln models, specifically the Ford C-Max, Ford Escape, and Lincoln MKC. The part number 512499 corresponds directly to these applications, ensuring proper fit and function for driveline and axle repairs or replacements.

• Eliminates wheel bearing noise and vibration
• Resolves ABS sensor faults related to hub assembly
• Corrects wheel wobble or looseness issues
• Addresses uneven brake rotor wear caused by hub misalignment
• Prevents premature bearing failure due to worn components

Installation Notes and Tips

When installing the Moog 512499 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify the flange bolt hole alignment and torque specifications according to the manufacturer’s guidelines. The anti-lock brake sensor wiring should be carefully connected to avoid damage. It is recommended to inspect related suspension and brake components during installation to ensure overall system integrity.

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards, providing dependable performance and durability. The 512499 part includes a built-in anti-lock brake sensor and is backed by Moog’s limited warranty, covering defects in materials and workmanship under normal use conditions.
