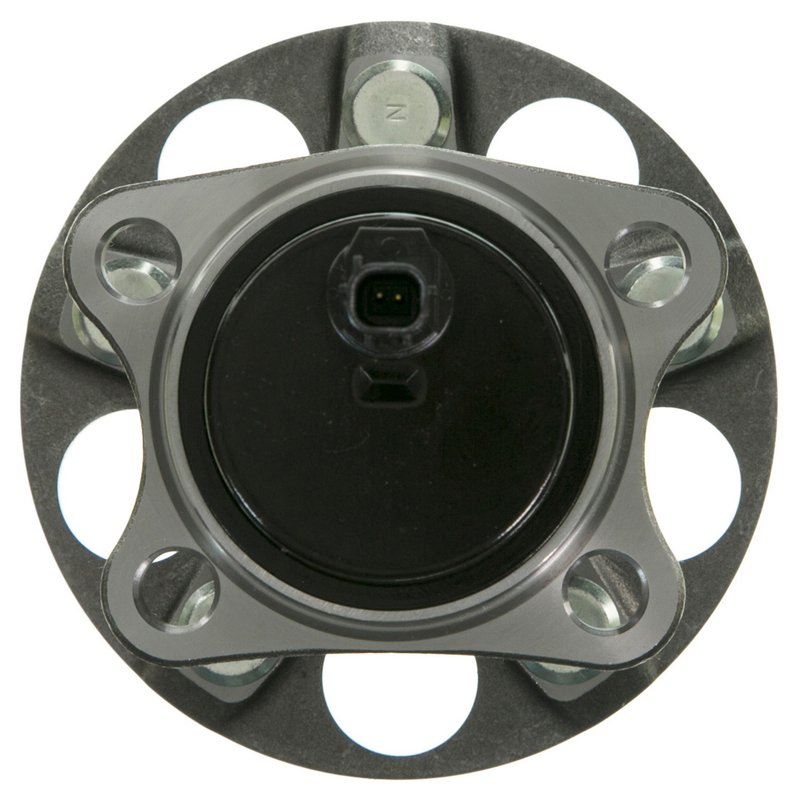

Moog 512505 Wheel Bearing and Hub Assembly - Rear

Moog 512505 Wheel Bearing and Hub Assembly Overview

The Moog 512505 wheel bearing and hub assembly is designed specifically for Toyota Prius and Prius Plug-In models. This component integrates essential features such as an anti-lock brake sensor and precise flange dimensions to ensure proper fit and function.

• Flange bolt hole quantity: 4
• Wheel pilot diameter: 54.000 mm
• Brake pilot diameter: 55.000 mm
• Wheel stud quantity: 5
• Hub pilot diameter: 73.900 mm
• Anti-lock brake sensor included
• Flange offset: 60.000 mm
• Flange diameter: 135.000 mm
• Bolt circle diameter: 100.000 mm

Technical Details of Moog 512505 Wheel Bearing and Hub Assembly

This wheel bearing and hub assembly from Moog is engineered to meet the exact specifications required for Toyota Prius and Prius Plug-In vehicles. The assembly features a 5-stud wheel configuration and a 4-hole flange bolt pattern, ensuring compatibility with the vehicle’s wheel mounting system. The included anti-lock brake sensor supports the ABS system, maintaining vehicle safety and performance. Precise pilot diameters for the wheel (54.000 mm), brake (55.000 mm), and hub (73.900 mm) provide accurate alignment and secure fitment. The flange offset of 60.000 mm and flange diameter of 135.000 mm are designed to match the original equipment dimensions, contributing to proper wheel positioning and handling characteristics.

Compatible Vehicles and Applications

• Designed for Toyota Prius models
• Compatible with Toyota Prius Plug-In models
• Used in driveline and axle systems requiring wheel bearing and hub assembly replacement
• Supports anti-lock brake system functionality
• Addresses wheel hub noise, vibration, and wheel play issues

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before installation
• Verify the part number 512505 matches the vehicle’s OEM specifications
• Inspect the axle and surrounding components for wear or damage during replacement
• Torque flange bolts to manufacturer specifications to avoid premature failure
• Check ABS sensor connections for proper operation after installation

Quality Assurance and Warranty Information

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards. The 512505 part number undergoes rigorous testing to ensure durability and performance under normal operating conditions. This assembly includes an integrated anti-lock brake sensor to maintain system integrity. Moog typically offers a limited warranty on their wheel bearing and hub assemblies; please refer to official Moog documentation for specific warranty terms related to part number 512505.
