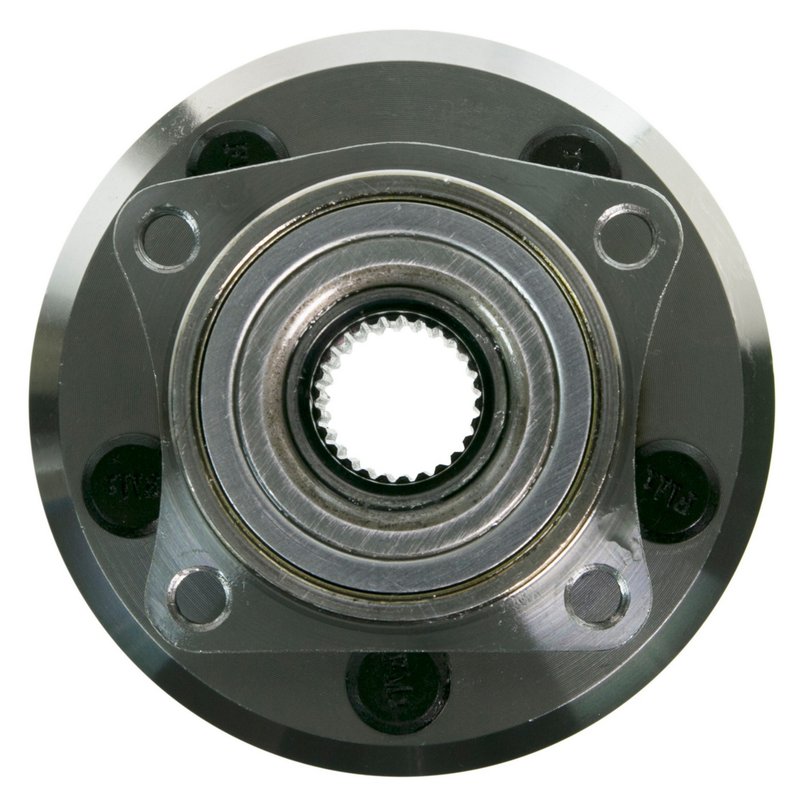

Moog 512512 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512512 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | No |
| Bolt Circle Diameter | 3.927 |
| Bolt Circle Diameter | 100.000 |
| Brake Pilot Diameter | 55.000 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 134.900 |
| Flange Offset | 54.500 |
| Flange Shape | MODIFIED |
| Hub Pilot Diameter | 73.900 |
| Spline Quantity | 26 |
| Wheel Pilot Diameter | 54.000 |
| Wheel Stud Quantity | 5 |
| Fits | Pontiac and Toyota · 8 vehicles |
Fast installation. Problem-solving design helps make installation hassle-free.
Superior materials. Built with rigorous testing for reliable performance.
Hub assembly. Wheel bearing and hub assembly for driveline and axle applications.
Cross-references SKF BR930920, Timken HA590002 and 061-6333 for the same application. See all 6.
Rear Wheel Bearing Hub Assembly for Matrix and Vibe
MOOG 512512 is a rear wheel bearing and hub assembly built for 2003-2006 Pontiac Vibe and 2003-2006 Toyota Matrix applications. It combines the hub, bearing, and mounting interface in one service part for a direct rear axle repair on these vehicles.
Key Features
- Rear wheel bearing and hub assembly for Pontiac Vibe and Toyota Matrix
- 26-spline hub design
- 5 wheel studs with a 100.000 mm bolt circle diameter
- 4 flange bolt holes for mounting
- Modified flange shape with 134.900 mm flange diameter
- Hub pilot diameter: 73.900 mm
- Wheel pilot diameter: 54.000 mm
- Brake pilot diameter: 55.000 mm
- Flange offset: 54.500 mm
- ABS sensor not included
Product Details
MOOG 512512 is engineered with superior materials and tested for dependable service in rear hub applications. The assembly is built to support smooth wheel rotation and accurate wheel mounting on the rear of the Pontiac Vibe and Toyota Matrix. For shoppers searching for a rear wheel bearing hub assembly for 2003-2006 Toyota Matrix or a rear hub assembly for 2003-2006 Pontiac Vibe, this part number provides the key dimensions needed for a proper match. Cross-reference part numbers include Timken HA590002 and SKF BR930920 for the same application.
What It Helps Address
- Rear wheel noise caused by worn bearing surfaces
- Wheel looseness or play at the hub
- Uneven wheel mounting from a damaged hub flange
- Vibration related to hub wear or runout
- ABS service concerns when the original sensor is separate from the hub assembly
Installation Notes and Tips
Verify rear position, spline count, bolt circle diameter, flange offset, and pilot diameters before installation. Confirm that the vehicle uses a 26-spline rear hub configuration and that the mounting pattern matches the listed dimensions. Because the ABS sensor is not included, transfer or service the sensor separately if the vehicle requires one.
Quality Assurance
MOOG hub assemblies are built from tested materials and validated through rigorous product testing to support reliable service life and consistent fitment on the specified Pontiac Vibe and Toyota Matrix rear applications.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Pontiac | Vibe | AWD | Rear | — |
| 2006 | Toyota | Matrix | AWD | Rear | — |
| 2005 | Pontiac | Vibe | AWD | Rear | — |
| 2005 | Toyota | Matrix | AWD | Rear | — |
| 2004 | Pontiac | Vibe | AWD | Rear | — |
| 2004 | Toyota | Matrix | AWD | Rear | — |
| 2003 | Pontiac | Vibe | AWD | Rear | — |
| 2003 | Toyota | Matrix | AWD | Rear | — |
