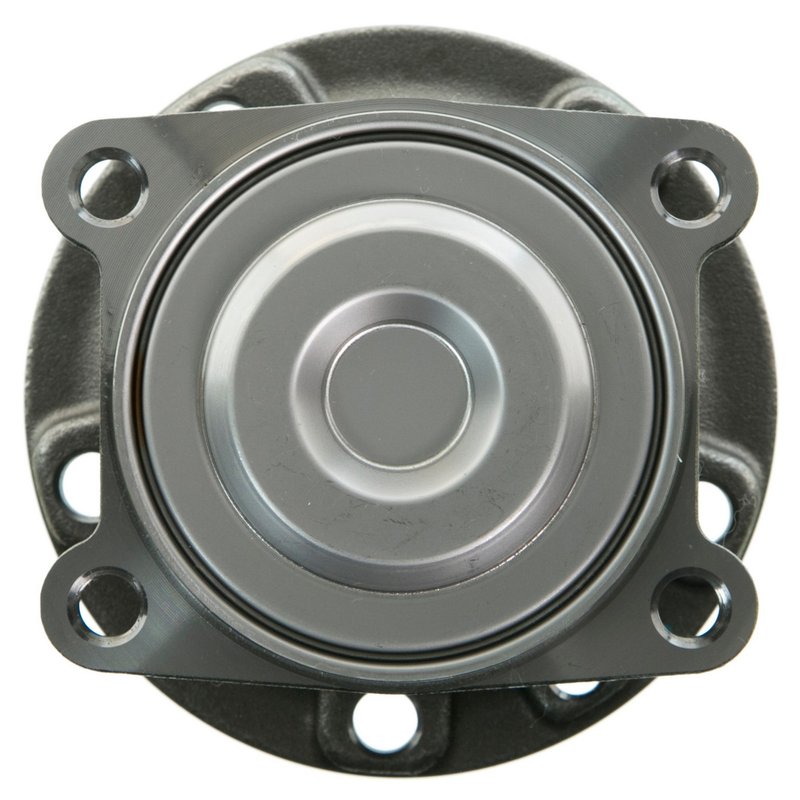

Moog 512514 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512514 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 4.330 |
| Bolt Circle Diameter | 110.000 |
| Brake Pilot Diameter | 69.900 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 130.200 |
| Flange Offset | 48.600 |
| Flange Shape | RECTANGLE |
| Hub Pilot Diameter | 91.900 |
| Wheel Pilot Diameter | 65.000 |
| Wheel Stud Quantity | 5 |
| Fits | Jeep and Chrysler · 12 vehicles |
Problem Solver design. Enhancements help extend product life and simplify installation and replacement.
Wheel bearing and hub assembly. A complete hub unit for dependable wheel support and rotation.
ABS sensor included. Built with an integrated anti-lock brake sensor for added convenience.
Cross-references SKF BR930609, 68155868AA and 68155868AB for the same application. See all 3.
Rear Wheel Bearing and Hub Assembly for Jeep Cherokee and Chrysler 200
Moog 512514 is a rear wheel bearing and hub assembly built for specific Jeep Cherokee and Chrysler 200 applications. It combines hub, bearing, and ABS sensor integration in one service part to support accurate wheel mounting and consistent rear-wheel operation.
Key Features
- Rear wheel bearing and hub assembly for 2014-2022 Jeep Cherokee and 2015-2017 Chrysler 200
- Includes anti-lock brake sensor
- 5 wheel studs with a 4-bolt flange pattern
- Flange diameter: 130.200 mm; flange offset: 48.600 mm
- Wheel pilot diameter: 65.000 mm; brake pilot diameter: 69.900 mm; hub pilot diameter: 91.900 mm
- Bolt circle diameter: 110.000 mm / 4.330 in
- Rectangle flange shape for the specified rear hub application
Detailed Description
Moog 512514 is engineered as a rear hub assembly for vehicles that require a direct-fit wheel bearing and hub replacement with ABS sensor integration. It is listed for 2014-2022 Jeep Cherokee rear applications and 2015-2017 Chrysler 200 rear applications, making it a focused service part for rear-end wheel support and brake system signal retention. Moog’s Problem Solver approach centers on design updates that improve service life and make installation and replacement more straightforward. This part cross-references SKF BR930609 for the same application.
What It Helps Address
- Rear wheel bearing noise or roughness
- Wheel hub play or looseness at the rear axle
- ABS warning light concerns related to hub sensor function
- Uneven rear wheel rotation caused by worn hub components
- Service replacement for a damaged rear hub assembly on Jeep Cherokee or Chrysler 200
Installation Notes and Tips
Verify rear fitment by year and model before installation. Confirm the flange bolt hole pattern, bolt circle diameter, and pilot dimensions against the original hub assembly. Inspect the mating surfaces, axle area, and brake components for wear or corrosion before mounting the new unit. Because this assembly includes an ABS sensor, make sure the electrical connection and sensor routing match the vehicle’s original configuration.
Quality Assurance
Moog positions this hub assembly within its Problem Solver chassis line, with design enhancements aimed at extending service life and simplifying replacement. Part number 512514 also cross-references OE numbers 68155868AA and 68155868AB for the same rear application.
Compatible Vehicles
- Fits 2014-2022 Jeep Cherokee, rear
- Fits 2015-2017 Chrysler 200, rear
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2022 | Jeep | Cherokee | FWD | Rear | — |
| 2021 | Jeep | Cherokee | FWD | Rear | — |
| 2020 | Jeep | Cherokee | FWD | Rear | — |
| 2019 | Jeep | Cherokee | FWD | Rear | — |
| 2018 | Jeep | Cherokee | FWD | Rear | — |
| 2017 | Chrysler | 200 | FWD | Rear | — |
| 2017 | Jeep | Cherokee | FWD | Rear | — |
| 2016 | Chrysler | 200 | FWD | Rear | — |
| 2016 | Jeep | Cherokee | FWD | Rear | — |
| 2015 | Chrysler | 200 | FWD | Rear | — |
| 2015 | Jeep | Cherokee | FWD | Rear | — |
| 2014 | Jeep | Cherokee | FWD | Rear | — |
