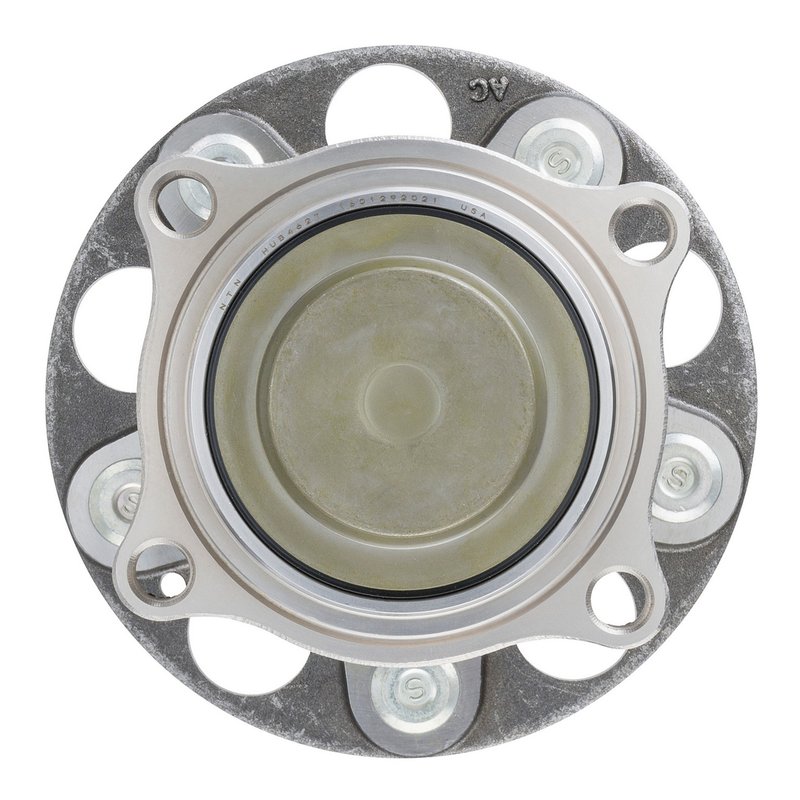

Moog 512527 Wheel Bearing and Hub Assembly - Rear
OE Quality 60-Day Returns
Moog

Moog 512527 Wheel Bearing and Hub Assembly - Rear

Brand Moog 512527
Position Rear
Flange Bolt Hole Quantity 4
Wheel Pilot Diameter 64.000
Brake Pilot Diameter 64.000
Wheel Stud Quantity 5
Hub Pilot Diameter 89.000
Anti Lock Brake Sensor Included Yes
Flange Offset 62.200
Flange Diameter 143.700
Bolt Circle Diameter 114.200
Fits Acura · 3 vehicles

OE-style service part. Wheel bearing and hub assembly for streamlined rear replacement.

Integrated ABS sensor. Supports wheel speed signal service in one assembly.

Problem Solver line. MOOG design updates focus on easier replacement and longer life.

Cross-references 42200-TZ5-A11 and HA590383 for the same application. See all 2.

$162.52Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $162.52
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options

Wheel Bearing and Hub Assembly Overview

The MOOG 512527 wheel bearing and hub assembly is built for rear service on select Acura MDX applications. It combines hub and bearing service in one unit and includes an ABS sensor, helping streamline replacement on the vehicle.

  • Fits 2014-2016 Acura MDX, rear.
  • Includes an anti-lock brake sensor for integrated wheel speed signal service.
  • Five wheel studs with a 114.2 mm bolt circle diameter.
  • 64 mm wheel pilot and brake pilot diameters for hub alignment.
  • MOOG 512527 is part of the brand’s Problem Solver line of chassis components.

Detailed Product Information

MOOG 512527 is a rear wheel bearing and hub assembly engineered for the 2014-2016 Acura MDX. The assembly is specified with a 143.7 mm flange diameter, 62.2 mm flange offset, 89 mm hub pilot diameter, and 64 mm wheel and brake pilot diameters. Those dimensions matter when replacing a worn hub because they support proper wheel mounting, brake component location, and consistent fitment. This part cross-references 42200-TZ5-A11 and HA590383 for the same application.

Common Replacement Reasons

  • Wheel bearing noise or roughness from the rear hub area.
  • ABS warning light caused by a failed integrated sensor.
  • Wheel looseness or play from hub wear.
  • Improper wheel mounting caused by damaged studs or pilot surfaces.

Installation Notes

Verify rear fitment before installation and compare the hub dimensions, bolt circle, and stud count to the original part. Inspect the mating surfaces, axle area, and brake components for wear before assembly. Because this unit includes an ABS sensor, confirm connector routing and sensor alignment during installation.

Quality Assurance

MOOG is known for ongoing chassis design updates that focus on longer service life and easier replacement. The 512527 follows that approach as a Problem Solver wheel bearing and hub assembly.

Related reading

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2016AcuraMDXFWDRear—
2015AcuraMDXFWDRear—
2014AcuraMDXFWDRear—
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
42200-TZ5-A11HA590383
