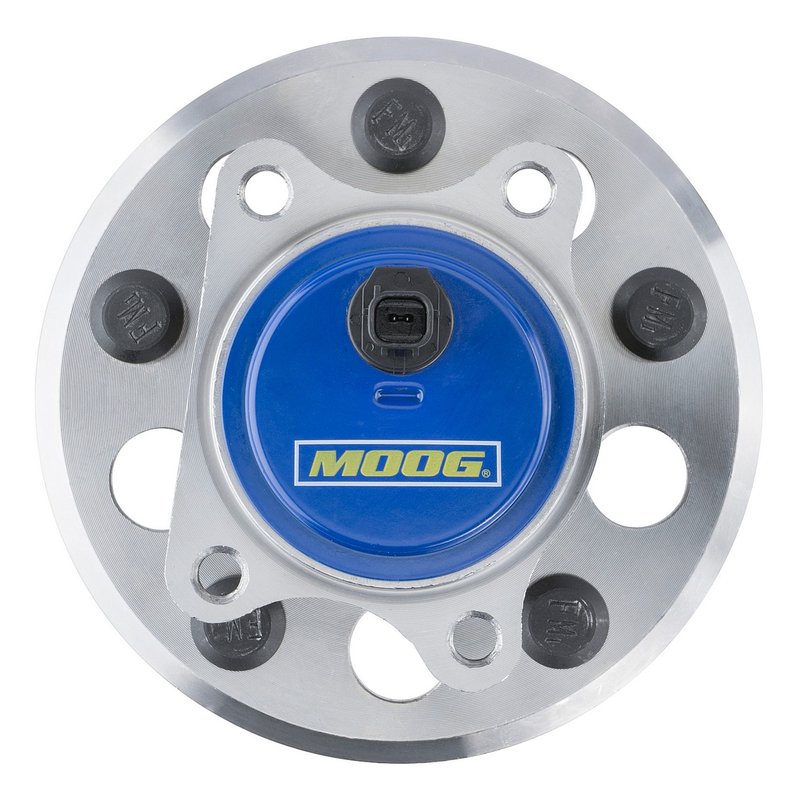

Moog 512541 Wheel Bearing and Hub Assembly - Rear Right

Rear Right Wheel Bearing Hub Assembly

Moog 512541 is a rear right wheel bearing and hub assembly for select Lexus ES models. It is built with design updates that help extend service life and make installation and replacement more straightforward, while supporting the wheel speed sensor function required by ABS-equipped vehicles.

Key Features

• Fits 2013-2020 Lexus ES300h, rear right
• Fits 2013-2018 Lexus ES350, rear right
• Integrated anti-lock brake sensor included
• 5 wheel studs with a 4-bolt flange design
• Flange diameter: 152.000 mm; flange offset: 67.500 mm
• Hub pilot diameter: 73.900 mm; wheel pilot diameter: 60.000 mm
• Brake pilot diameter: 62.000 mm; bolt circle diameter: 114.300 mm / 4.500 in.
• Moog part number 512541 for rear right hub replacement

Detailed Description

This wheel bearing and hub assembly is engineered for rear right service on Lexus ES300h and Lexus ES350 applications. Moog 512541 combines the hub, bearing, and ABS sensor interface in one assembly to support accurate wheel speed signal delivery and proper wheel mounting geometry. The design details, including the trapezoid flange shape, pilot diameters, and bolt circle dimensions, are important for correct fitment on the specified Lexus ES rear right position. This part cross-references Monroe Shocks & Struts (e.g., 4245033050) for the same application.

What It Helps Address

• Wheel bearing noise from a worn rear hub assembly
• ABS warning light concerns related to hub sensor function
• Wheel looseness or play at the rear right corner
• Uneven wheel mounting caused by hub wear or damage
• Replacement needs after corrosion or bearing failure

Installation Notes and Tips

Confirm rear right position, wheel stud pattern, and pilot dimensions before installation. Because this assembly includes an ABS sensor, inspect the connector, wiring, and tone-ring-related surfaces during service. Clean the mounting face and verify torque specifications against the vehicle service information for the exact Lexus ES300h or Lexus ES350 model year.

Quality Assurance

Moog is known for ongoing design improvements that focus on longer service life and easier replacement. Part number 512541 reflects that engineering approach for rear hub service on select Lexus ES applications.
