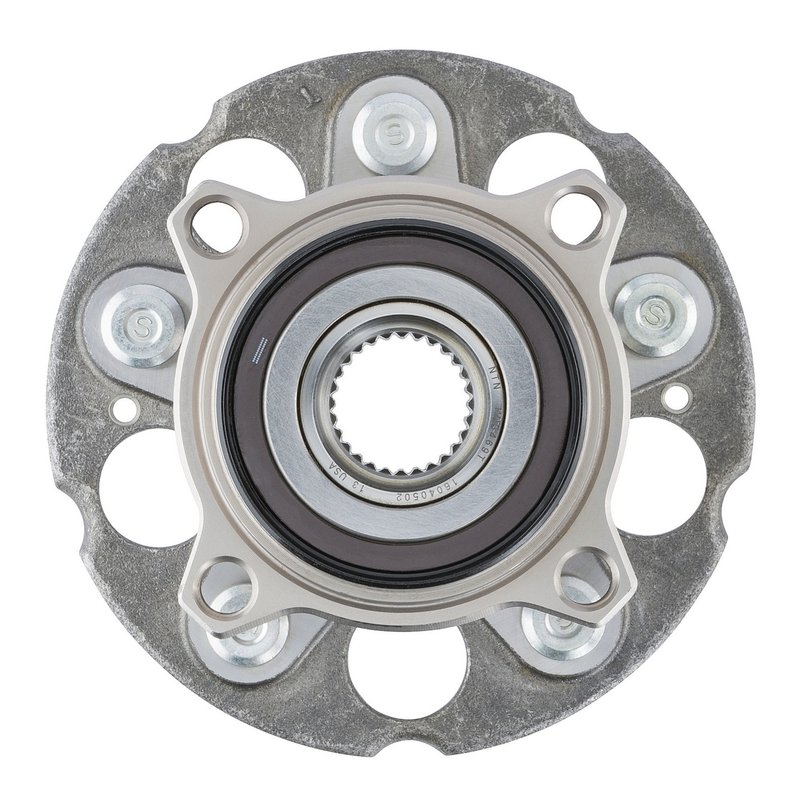

Moog 512562 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub for Acura TLX

MOOG 512562 is a rear wheel bearing and hub assembly for 2015-2020 Acura TLX models. It combines hub and bearing service into one direct-fit driveline component, with ABS sensor integration for vehicles equipped with electronic wheel speed monitoring.

Key Features

• Fits 2015-2020 Acura TLX, rear
• Wheel bearing and hub assembly for rear axle service
• ABS sensor included for proper wheel speed signal support
• 28 spline design
• 5 wheel studs with 4 flange bolt holes
• Hub pilot diameter: 81.800 mm
• Wheel pilot diameter: 64.000 mm
• Brake pilot diameter: 64.000 mm
• Bolt circle diameter: 114.800 mm
• Flange diameter: 151.700 mm
• Flange offset: 58.800 mm

Detailed Description

This MOOG 512562 rear hub assembly is built for Acura TLX rear-wheel service across the 2015-2020 model years. MOOG focuses on design updates that improve service life and make replacement easier, which is valuable when replacing a worn rear hub on an Acura TLX with ABS-equipped rear suspension. The part cross-references 42200-TZ7-A01 for the same application.

For buyers searching for a rear wheel bearing and hub assembly for 2015-2020 Acura TLX, MOOG 512562 provides the key dimensions needed for proper fitment, including the 28-spline hub, 5-stud wheel mounting pattern, and 114.800 mm bolt circle. It is a practical OE-style replacement for rear hub noise, looseness, or ABS-related wheel speed issues on the Acura TLX.

Common Problems This Part Can Address

• Rear wheel bearing noise or growling
• Excessive play or looseness at the rear hub
• ABS warning light caused by a failing wheel speed sensor interface
• Uneven rear wheel rotation from hub wear
• Vibration or roughness from a worn rear bearing assembly

Installation Notes and Tips

Confirm rear fitment by matching the vehicle year, model, and hub dimensions before installation. Inspect the mating surfaces, axle splines, and brake components during service, and verify ABS connector routing and sensor seating after installation. Torque fasteners to the vehicle manufacturer’s specifications and check wheel end play after assembly.

Quality Assurance

MOOG is known for ongoing chassis and driveline design improvements that focus on longer service life and easier replacement. Part number 512562 is engineered as a service replacement for the rear hub application on the Acura TLX.
