Moog 512566 Wheel Bearing and Hub Assembly - Front or RearOE Quality 60-Day Returns

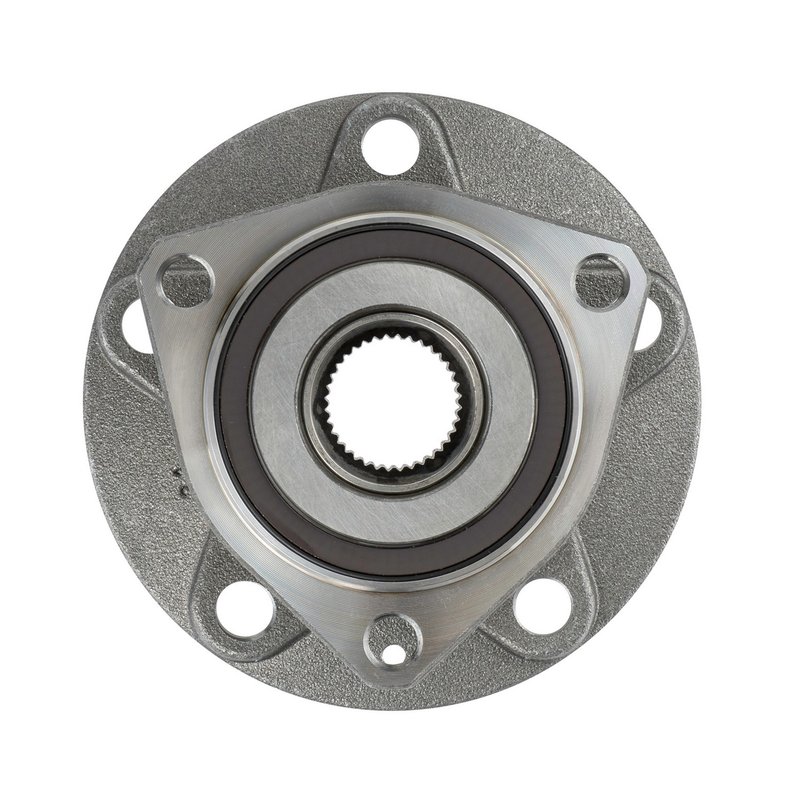

Moog 512566 Wheel Bearing and Hub Assembly - Front or Rear - view 1
Moog 512566 Wheel Bearing and Hub Assembly - Front or Rear - view 2
Moog 512566 Wheel Bearing and Hub Assembly - Front or Rear - view 3
Part #: 512566

Moog 512566 Wheel Bearing and Hub Assembly - Front or Rear

Rear and Front
⚙️ 41 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$343.44Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Audi and Volkswagen, A3, A3 Quattro, A3 Sportback e-tron, Golf Alltrack, Golf R, Golf SportWagen, RS3, and S3
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
Moog 512566 Wheel Bearing and Hub Assembly - Front or Rear
BrandMoog
Part Number512566
Spline Quantity36
Flange Bolt Hole Quantity3
Wheel Pilot Diameter57.000
Brake Pilot Diameter64.900
Wheel Stud Quantity5
Hub Pilot Diameter79.900
Anti Lock Brake Sensor IncludedYes
Flange Offset47.900
Flange Diameter136.400
Bolt Circle Diameter112.300

This part fits 41 vehicles. Search below:

YearMakeModelSubmodelDrive TypePositionNotes
2020AudiA3Frontwith 80 (mm) Bearing Outside Diameter
2020AudiA3 QuattroRear
2020AudiRS3Rear
2020AudiS3Rear
2019AudiA3Frontwith 288 (mm) Diameter Rotor
2019AudiA3 QuattroRear
2019AudiRS3Rear
2019AudiS3Rear
2019VolkswagenGolf AlltrackAWDRear
2019VolkswagenGolf RAWDRear
2019VolkswagenGolf SportWagenAWDRear
2018AudiA3Frontwith 288 (mm) Diameter Rotor
2018AudiA3 QuattroRear
2018AudiA3 QuattroFrontwith 288 (mm) Diameter Rotor
2018AudiA3 Sportback e-tronFrontwith 288 (mm) Diameter Rotor
2018AudiRS3Rear
2018AudiS3Rear
2018VolkswagenGolf AlltrackAWDRear
2018VolkswagenGolf RAWDRear
2018VolkswagenGolf SportWagenAWDRear
2017AudiA3Frontwith 80 (mm) Bearing Outside Diameter
2017AudiA3 QuattroRear
2017AudiA3 QuattroFrontwith 80 (mm) Bearing Outside Diameter
2017AudiA3 Sportback e-tronFrontwith 80 (mm) Bearing Outside Diameter
2017AudiRS3Rear
2017AudiS3Rear
2017AudiS3Frontwith 80 (mm) Bearing Outside Diameter
2017VolkswagenGolf AlltrackAWDRear
2016AudiA3Frontwith 80 (mm) Bearing Outside Diameter
2016AudiA3 QuattroRear
2016AudiA3 QuattroFrontwith 80 (mm) Bearing Outside Diameter
2016AudiA3 Sportback e-tronFront
2016AudiS3Rear
2016AudiS3Frontwith 80 (mm) Bearing Outside Diameter
2016VolkswagenGolf RBaseRear
2015AudiA3Frontwith 80 (mm) Bearing Outside Diameter
2015AudiA3 QuattroRear
2015AudiA3 QuattroFrontwith 80 (mm) Bearing Outside Diameter
2015AudiS3Rear
2015AudiS3Frontwith 80 (mm) Bearing Outside Diameter
2015VolkswagenGolf RBaseRear

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

8V0-598-6258V0-598-625B

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
