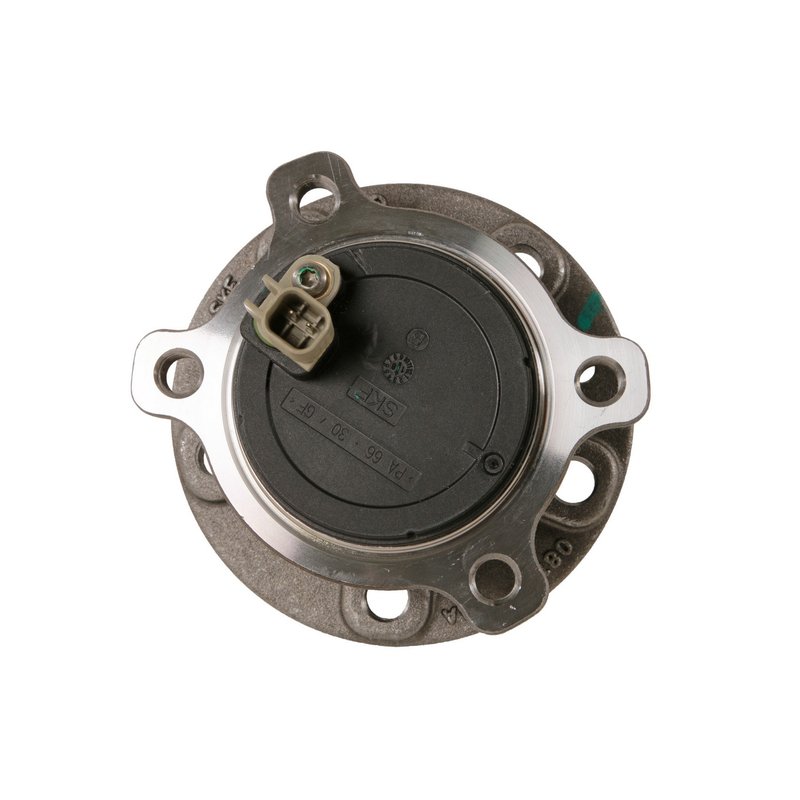

Moog 512625 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub for Volvo S60

Moog 512625 is a rear wheel bearing and hub assembly for 2016-2018 Volvo S60 models. It combines hub and bearing service in one unit and includes an ABS sensor for direct replacement on the rear axle.

Key Features

• Fits 2016-2018 Volvo S60, rear
• Wheel bearing and hub assembly for rear driveline service
• Anti-lock brake sensor included
• 5 wheel studs with 108.000 bolt circle diameter
• Flange bolt hole quantity: 4
• Wheel pilot diameter: 63.180; brake pilot diameter: 63.420
• Hub pilot diameter: 81.340 and flange diameter: 135.980
• Flange offset: 63.050

Detailed Description

Moog 512625 is built for rear wheel-end service on the Volvo S60 and is listed for 2016, 2017, and 2018 model years. As a wheel bearing and hub assembly, it supports the rear wheel mounting point while helping restore proper wheel rotation and sensor function. Moog’s product development focuses on design updates that improve service life and make replacement easier, which is useful when replacing a worn rear hub on a Volvo S60.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Rear wheel bearing noise or rough rotation
• ABS warning light concerns related to the hub sensor
• Wheel looseness or play at the rear hub
• Uneven rear wheel-end operation from a worn assembly
• Service replacement for a damaged rear hub on a Volvo S60

Installation Notes and Tips

Verify rear-position fitment before ordering and match the hub dimensions, bolt circle, and pilot diameters to the original part. Inspect the mounting surface, fasteners, and surrounding brake components during replacement, and confirm ABS sensor connection and routing after installation. For best results, compare the old unit to Moog 512625 before final assembly.

Quality Assurance

Moog is known for ongoing chassis and driveline design improvements that focus on longer service life and easier installation. This rear hub assembly is engineered as a direct replacement for the listed Volvo S60 applications.
