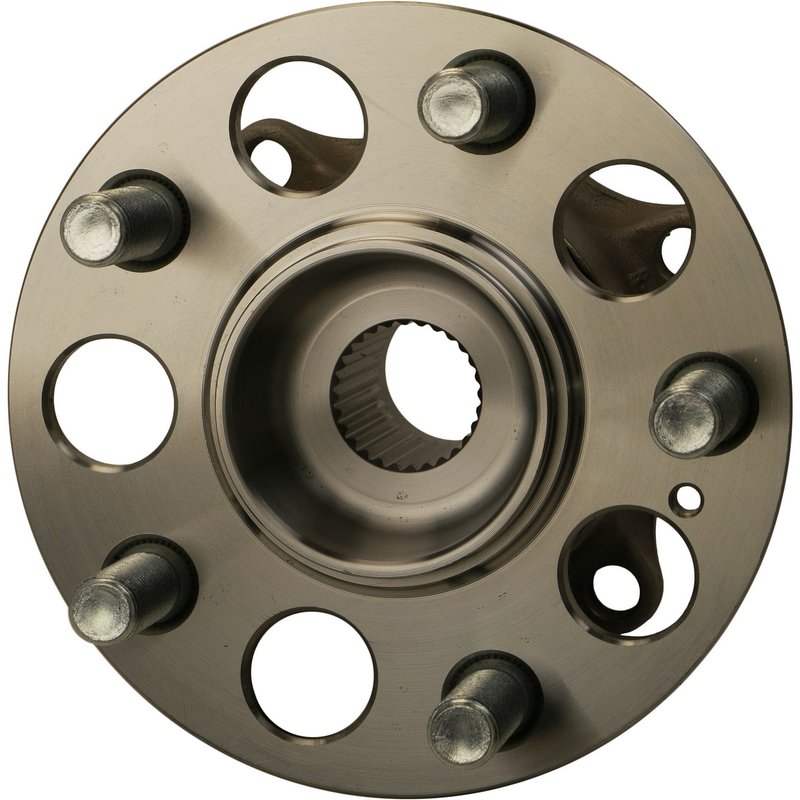

Moog 512629 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Honda and Acura

The Moog 512629 wheel bearing and hub assembly is built for rear axle service on select Honda and Acura applications. It combines hub, bearing, and ABS sensor integration in one replacement unit to support accurate wheel rotation and straightforward service on the rear of the vehicle.

Compatible With 2016-2023 Honda Pilot, 2019-2023 Honda Passport, and 2017-2020 Acura MDX, this rear hub assembly is a direct-fit option for drivers searching for a Honda Pilot rear wheel bearing hub assembly or Acura MDX rear hub replacement. The Moog 512629 is engineered with design updates that help extend service life and simplify replacement.

Key Features

• Rear wheel bearing and hub assembly for select Honda and Acura models
• ABS sensor included for integrated wheel speed signal service
• 28 spline hub design
• 5 wheel studs with 4 flange bolt holes
• Hub pilot diameter: 89.100 mm
• Wheel pilot diameter: 64.030 mm
• Brake pilot diameter: 70.050 mm
• Bolt circle diameter: 120.100 mm
• Flange diameter: 152.220 mm with 62.220 mm flange offset

Detailed Description

Moog 512629 is a rear wheel bearing and hub assembly for 2016-2023 Honda Pilot, 2019-2023 Honda Passport, and 2017-2020 Acura MDX. It is built around the dimensions and mounting points needed for rear hub service, including a 28-spline interface, 5 wheel studs, and an integrated ABS sensor. This makes it a practical choice when replacing a worn rear hub on a Honda Passport rear wheel bearing hub assembly or a Honda Pilot rear hub assembly.

This part cross-references Timken HA590639 for the same application. It also cross-references Honda 42200TG7A01 for the same application.

What It Helps Fix

• Rear wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness or play at the rear hub
• Uneven rear wheel support from a worn bearing unit
• Service issues tied to a damaged hub flange or mounting surface

Installation Notes and Tips

Verify rear fitment by year, make, and model before ordering. Confirm spline count, bolt circle diameter, flange offset, and sensor configuration against the original part to ensure proper installation on the Honda Pilot, Honda Passport, or Acura MDX. Clean the mounting surface and inspect related brake and axle components during replacement.

Quality Assurance

MOOG is known for continual design improvements that focus on longer service life and easier installation and replacement. The 512629 follows that approach with a service-ready rear hub design for select Honda and Acura vehicles.
