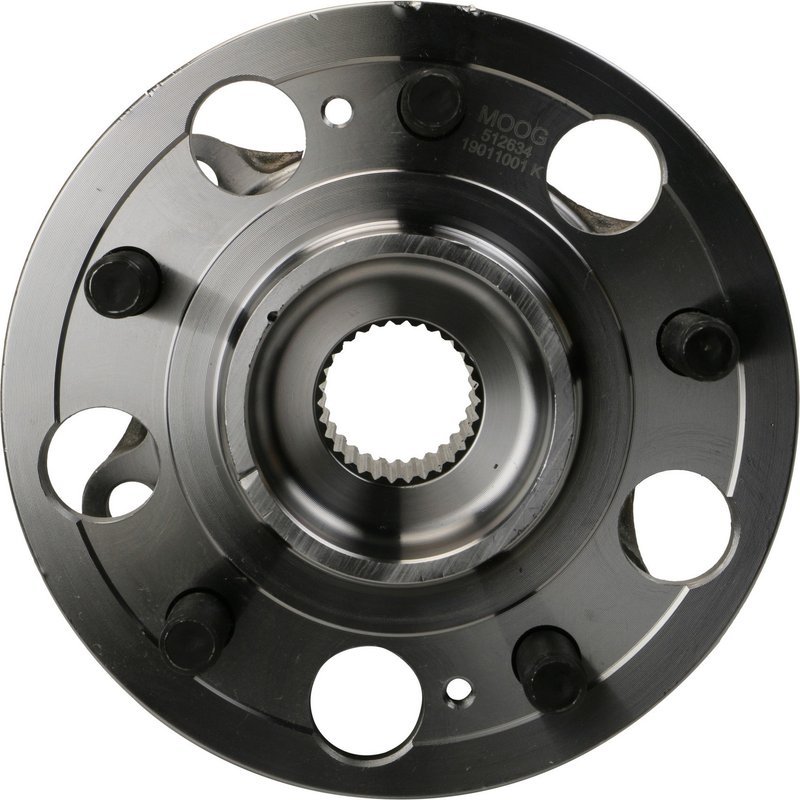

Moog 512634 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub for Genesis G90

MOOG 512634 is a rear wheel bearing and hub assembly for the 2017-2019 Genesis G90. Built for direct replacement service, it combines hub and bearing functions in one unit to support smooth wheel rotation and consistent rear-end performance.

Key Features

• Fits 2017-2019 Genesis G90, rear
• 30 spline quantity for the specified driveline application
• 5 wheel studs with a 114.300 bolt circle diameter
• 4 flange bolt holes for mounting
• Wheel pilot diameter: 66.890
• Brake pilot diameter: 68.910
• Hub pilot diameter: 96.850
• Flange diameter: 154.060 with 53.270 flange offset
• ABS sensor not included

Detailed Description

MOOG 512634 is engineered as a rear wheel bearing and hub assembly for Genesis G90 models from 2017 through 2019. MOOG focuses on design updates that improve service life and make replacement easier, which is valuable when servicing a rear hub on a luxury sedan platform. This part number, 512634, is a direct-fit option for rear wheel service and is listed for the Genesis G90 rear application only.

This part cross-references OE number 52730D2001 for the same application.

What It Helps Address

• Rear wheel noise caused by worn hub or bearing components
• Wheel play or looseness at the rear axle
• Uneven rear wheel rotation from bearing wear
• Hub mounting issues related to flange or pilot wear
• ABS-related service concerns when the original sensor is not reused from this assembly

Installation Notes and Tips

Verify rear fitment by matching the vehicle year, make, model, and mounting dimensions before installation. Confirm spline count, bolt circle diameter, flange bolt hole quantity, and pilot diameters against the original part. Because the ABS sensor is not included, transfer or source the sensor as required by the vehicle setup. Professional installation is recommended for proper hub seating and torque specification.

Quality Assurance

MOOG is known in the chassis and driveline market for ongoing design improvements that support easier service and longer part life. Part number 512634 is built to meet the rear hub requirements for the 2017-2019 Genesis G90 and is backed by MOOG product engineering standards.
