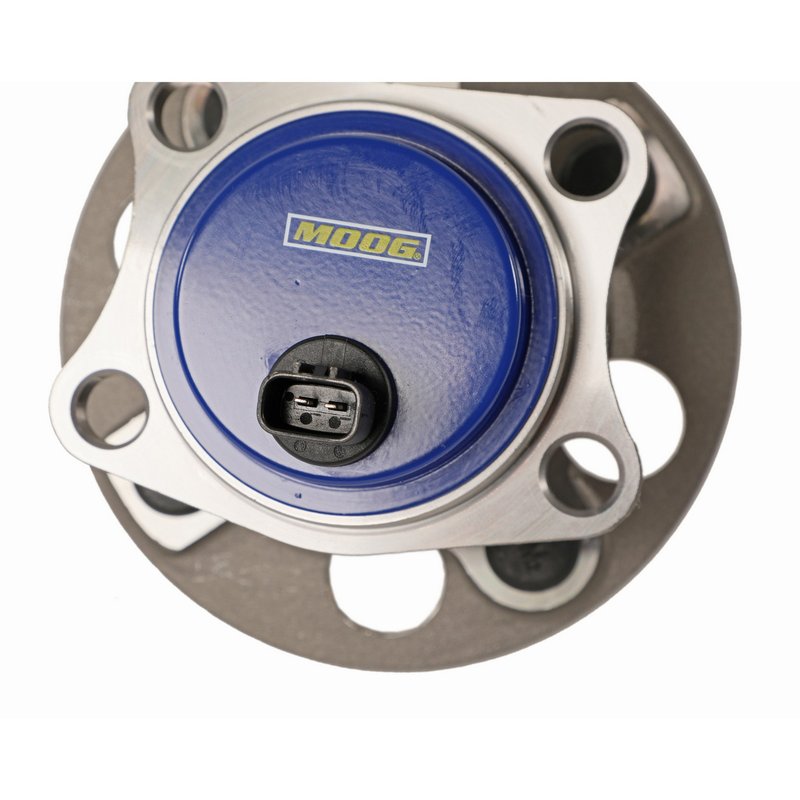

Moog 512636 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 512636 |
|---|---|
| Position | Rear |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 100.000 |
| Brake Pilot Diameter | 54.970 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 134.910 |
| Flange Offset | 60.010 |
| Hub Pilot Diameter | 73.870 |
| Wheel Pilot Diameter | 53.990 |
| Wheel Stud Quantity | 4 |
| Fits | Toyota · 5 vehicles |
Simplified installation. Design enhancements help extend product life and make replacement easier.
Wheel bearing and hub assembly. Combines the hub and bearing in one serviceable unit.
ABS sensor included. Built with an anti-lock brake sensor for a complete replacement.
Cross-references 424500D110, 424500D111 and 424500D112 for the same application. See all 3.
Rear Wheel Bearing Hub for Toyota Yaris
MOOG 512636 is a rear wheel bearing and hub assembly for 2015-2019 Toyota Yaris models. It is built with integrated ABS sensor support and OE-style dimensions to match the rear hub mounting and wheel interface on the vehicle.
Key Features
- Fits 2015-2019 Toyota Yaris, rear
- Wheel bearing and hub assembly for rear axle service
- Anti-lock brake sensor included
- 4-bolt flange design with 4 wheel studs
- Bolt circle diameter: 100.000 mm
- Hub pilot diameter: 73.870 mm
- Wheel pilot diameter: 53.990 mm
- Brake pilot diameter: 54.970 mm
- Flange diameter: 134.910 mm
- Flange offset: 60.010 mm
Detailed Description
MOOG 512636 is a rear wheel bearing and hub assembly engineered for the 2015-2019 Toyota Yaris. The assembly uses a 4-bolt flange, 4 wheel studs, and a 100.000 mm bolt circle diameter to match the rear hub interface, while the included ABS sensor support helps maintain proper wheel speed signal integration. MOOG focuses on design updates that improve service life and make replacement easier, which is why this part is a practical choice for Toyota Yaris rear hub repair work. This part cross-references Toyota OE numbers 424500D110 and 424500D111 for the same application.
Common Repair Symptoms
- Rear wheel noise or humming that changes with speed
- Excessive play at the rear wheel hub
- ABS warning light related to wheel speed signal issues
- Uneven rear wheel rotation or rough hub operation
- Hub wear affecting rear brake and wheel mounting stability
Installation Notes and Tips
Verify rear fitment by year before ordering: Fits 2015-2019 Toyota Yaris, rear. Confirm the hub pilot, wheel pilot, brake pilot, and bolt circle dimensions against the original part before installation. Inspect the mounting surface, fasteners, and surrounding brake components for wear or corrosion during replacement. For best results, follow factory service procedures and torque specifications during installation.
Quality Assurance
MOOG is known for continual chassis and driveline design improvements that focus on longer service life and easier replacement. MOOG 512636 is built to meet the dimensional and functional requirements of the rear hub application on the Toyota Yaris.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2019 | Toyota | Yaris | Hatchback | Rear | — |
| 2018 | Toyota | Yaris | Hatchback | Rear | — |
| 2017 | Toyota | Yaris | Hatchback | Rear | — |
| 2016 | Toyota | Yaris | Hatchback | Rear | — |
| 2015 | Toyota | Yaris | Hatchback | Rear | — |
