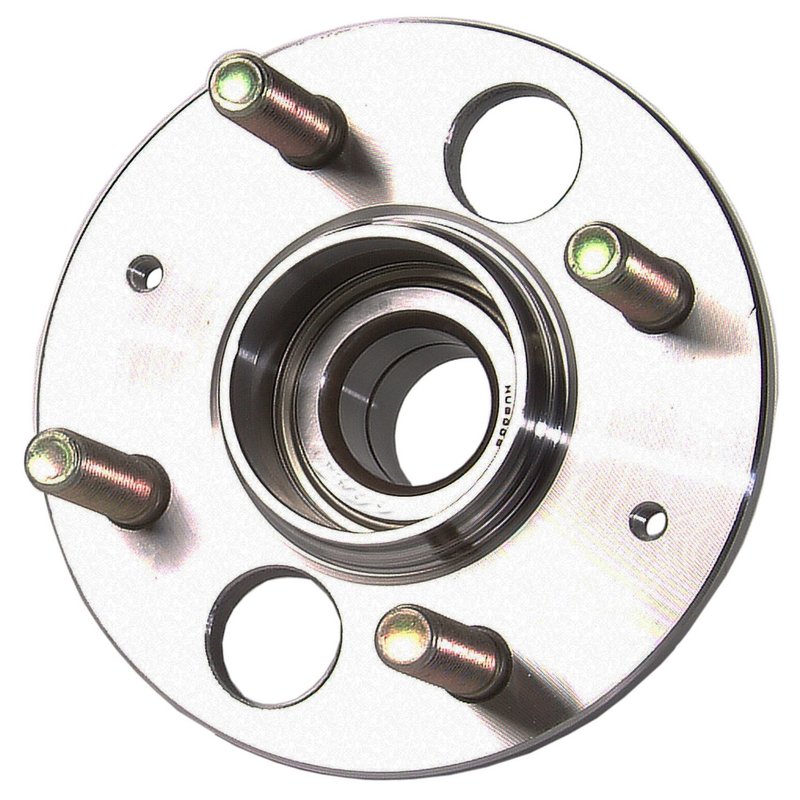

Moog 513050 Wheel Bearing and Hub Assembly - Rear
| Brand | Moog 513050 |
|---|---|
| Position | Rear |
| Wheel Pilot Diameter | 56.100 |
| Brake Pilot Diameter | 61.000 |
| Wheel Stud Quantity | 4 |
| Hub Pilot Diameter | 55.000 |
| Anti Lock Brake Sensor Included | No |
| Flange Diameter | 133.800 |
| Bolt Circle Diameter | 100.000 |
| Bolt Circle Diameter | 3.940 |
| Fits | Acura · 4 vehicles |
OE-style replacement. Wheel bearing and hub assembly built for direct service use.
Dimensional accuracy. Includes pilot and bolt circle specifications for proper hub alignment.
Problem Solver line. MOOG adds design enhancements focused on service life and replacement ease.
Cross-references MOOG Hub Assemblies 513050, Raybestos Brakes 713050 and SKF BR930032 for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Wheel Bearing and Hub Assembly
MOOG 513050 is a wheel bearing and hub assembly for rear applications on select Acura Integra models. It is built around hub and pilot dimensions that support proper wheel mounting and brake interface alignment, with no ABS sensor included.
Key Features
- Wheel bearing and hub assembly for driveline and axle service
- Rear fitment for select Acura Integra models
- 4 wheel studs with a 100 mm bolt circle diameter
- 56.100 mm wheel pilot diameter and 61.000 mm brake pilot diameter
- 55.000 mm hub pilot diameter and 133.800 mm flange diameter
- No anti-lock brake sensor included
Detailed Description
MOOG 513050 is engineered as a replacement wheel bearing and hub assembly for 1986-1989 Acura Integra rear applications. The dimensional specifications are important for correct wheel centering, brake rotor location, and hub-to-wheel interface fitment. This part cross-references Raybestos Brakes (e.g., 713050) and SKF (e.g., BR930032) for the same application.
MOOG’s Problem Solver line is known for design updates that focus on longer service life and easier replacement. For Acura Integra rear hub service, that means a part built with fitment and serviceability in mind while matching the required mounting geometry for the application. The part number 513050 is the reference to use when verifying this hub assembly for the listed vehicle coverage.
What It Is Used For
- Replacing a worn or noisy rear wheel hub assembly
- Restoring proper wheel mounting surface alignment
- Addressing hub play or bearing roughness
- Correcting brake interface fitment concerns
- Servicing rear hub components on the Acura Integra
Installation Notes and Tips
Confirm rear fitment before ordering: Fits 1986-1989 Acura Integra, rear. Verify wheel pilot, brake pilot, bolt circle, and stud count against the original part before installation. The part number 513050 should be matched to the vehicle application and hub dimensions during service.
Quality Assurance
MOOG positions this hub assembly within its Problem Solver line, which emphasizes design improvements that extend product life and simplify replacement. Use the listed dimensions and fitment data to confirm application accuracy for the Acura Integra rear hub service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1989 | Acura | Integra | Rear | — |
| 1988 | Acura | Integra | Rear | — |
| 1987 | Acura | Integra | Rear | — |
| 1986 | Acura | Integra | Rear | — |
