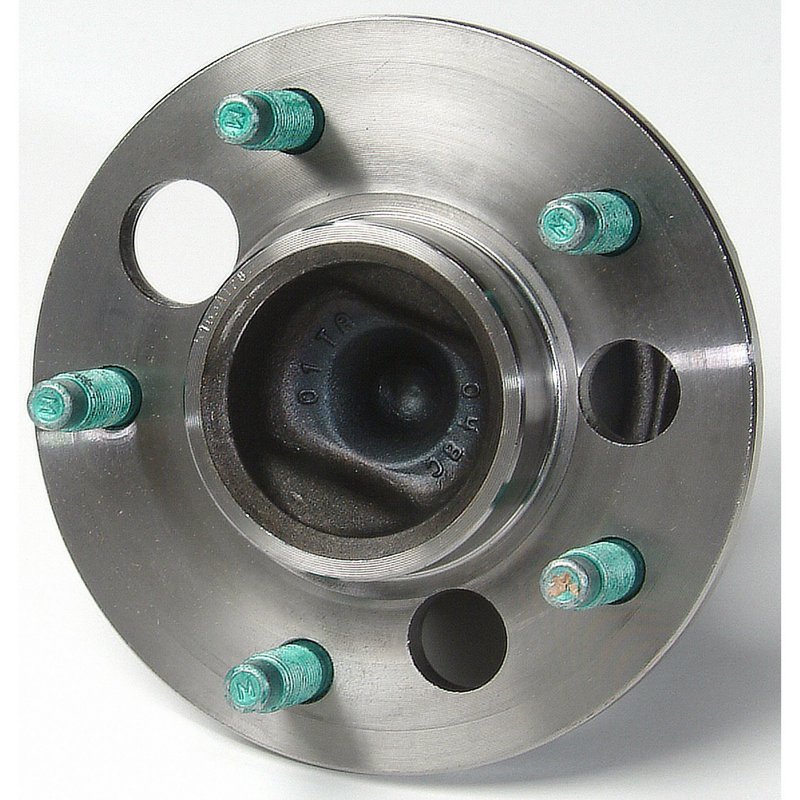

Moog 513062 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for GM Full-Size Cars

The Moog 513062 rear wheel bearing and hub assembly is built for select rear-wheel applications on Buick, Oldsmobile, Pontiac, and Cadillac full-size cars. It combines the hub, bearing, and ABS sensor in one service part for a direct rear axle repair on vehicles such as the Buick LeSabre, Pontiac Bonneville, and Cadillac DeVille.

Key Features

• Rear wheel bearing and hub assembly with 5 wheel studs
• ABS sensor included for vehicles equipped with rear wheel speed sensing
• 4 flange bolt holes with a rectangular flange shape
• Flange offset: 65.000 mm
• Flange diameter: 150.000 mm
• Wheel pilot diameter: 70.100 mm
• Brake pilot diameter: 70.600 mm
• Hub pilot diameter: 71.800 mm
• Bolt circle diameter: 115.000 mm / 4.530 in
• Moog part number 513062

Product Details

Moog 513062 is a rear wheel bearing and hub assembly engineered for service on 1991-1999 Buick LeSabre, 1992-1999 Oldsmobile 88, 1996-1999 Oldsmobile LSS, 1991-1999 Pontiac Bonneville, 1997-1998 Oldsmobile Regency, 1991-1996 Buick Park Avenue, 1991-1996 Oldsmobile 98, 1993 Cadillac 60 Special, 1991-1993 Cadillac Commercial Chassis, 1991-1993 Cadillac DeVille, 1991-1992 Cadillac Fleetwood, and 1991 Oldsmobile Delta 88, rear. MOOG focuses on design updates that improve service life and make replacement easier, which is valuable when servicing older GM rear hub assemblies. This part cross-references SKF BR930068 for the same application.

Common Repair Uses

• Rear wheel bearing noise on GM full-size sedans
• Wheel play or looseness at the rear hub
• ABS warning light caused by a failing rear hub sensor
• Uneven rear wheel rotation from worn hub components
• Service replacement for a damaged rear hub flange or bearing unit

Installation Notes

Verify rear position, bolt circle, pilot diameters, and ABS sensor configuration before installation. Confirm the vehicle’s year, make, and model against the listed fitment for Buick LeSabre, Pontiac Bonneville, Oldsmobile 88, and related Cadillac applications. Inspect the mating surfaces, axle area, and fastener condition during service, and follow the vehicle manufacturer’s torque specifications during assembly.

Quality Assurance

MOOG is known in chassis and driveline service for ongoing design improvements that support longer part life and simpler replacement. Part number 513062 is built as a service-ready rear hub assembly for the listed applications.
