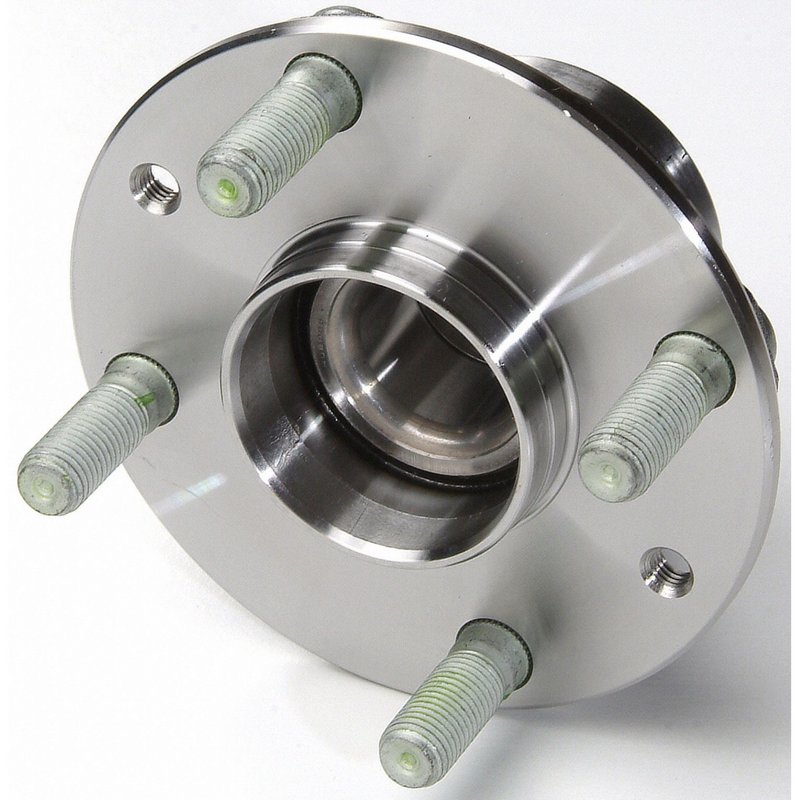

Moog 513152 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Mazda Miata

Restore smooth front wheel rotation and proper hub support with this MOOG wheel bearing and hub assembly, part number 513152. It is built for 1990-1997 and 1999-2005 Mazda Miata front applications, with OE-style dimensions that support accurate wheel mounting and consistent fitment.

Key Features

• MOOG wheel bearing and hub assembly for front axle service
• Fits 1990-1997 Mazda Miata, front, and 1999-2005 Mazda Miata, front
• Wheel stud quantity: 4
• Bolt circle diameter: 100.000 mm / 3.940 in
• Wheel pilot diameter: 54.000 mm
• Brake pilot diameter: 55.000 mm
• Hub pilot diameter: 61.000 mm
• Flange diameter: 122.000 mm
• Flange offset: 54.000 mm
• Anti-lock brake sensor included: No
• Cross-reference: SKF BR930143

Detailed Description

MOOG 513152 is a front wheel bearing and hub assembly engineered for Mazda Miata models from 1990-1997 and 1999-2005. MOOG is known for refining chassis components with design updates that improve service life and make replacement easier, and this hub assembly follows that approach with precise mounting dimensions for the wheel, brake, and hub interfaces. The result is a direct-fit replacement for Miata front hub service where correct pilot diameters, bolt circle, and flange measurements matter.

This part number 513152 is a practical choice when servicing a Mazda Miata front hub assembly and replacing a worn wheel bearing and hub unit. It also cross-references SKF BR930143 for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• Uneven wheel mounting caused by worn hub surfaces
• Vibration related to hub wear on Mazda Miata front suspension
• Brake and wheel fitment issues tied to damaged pilot surfaces

Installation Notes and Tips

• Verify front application and model year before ordering; this part fits 1990-1997 Mazda Miata and 1999-2005 Mazda Miata.
• Confirm the 4-lug bolt pattern and pilot diameters match the vehicle before installation.
• Inspect the knuckle, axle area, and mounting surfaces for wear or damage before pressing in the new hub assembly.
• Because the anti-lock brake sensor is not included, reuse or source the correct sensor setup as needed for the vehicle.
• Follow factory torque specifications and bearing service procedures during installation.

Quality Assurance

MOOG chassis and driveline components are developed with ongoing design improvements focused on durability and easier service. Part number 513152 is built to meet the dimensional requirements of the listed Mazda Miata front applications and support reliable replacement service.
