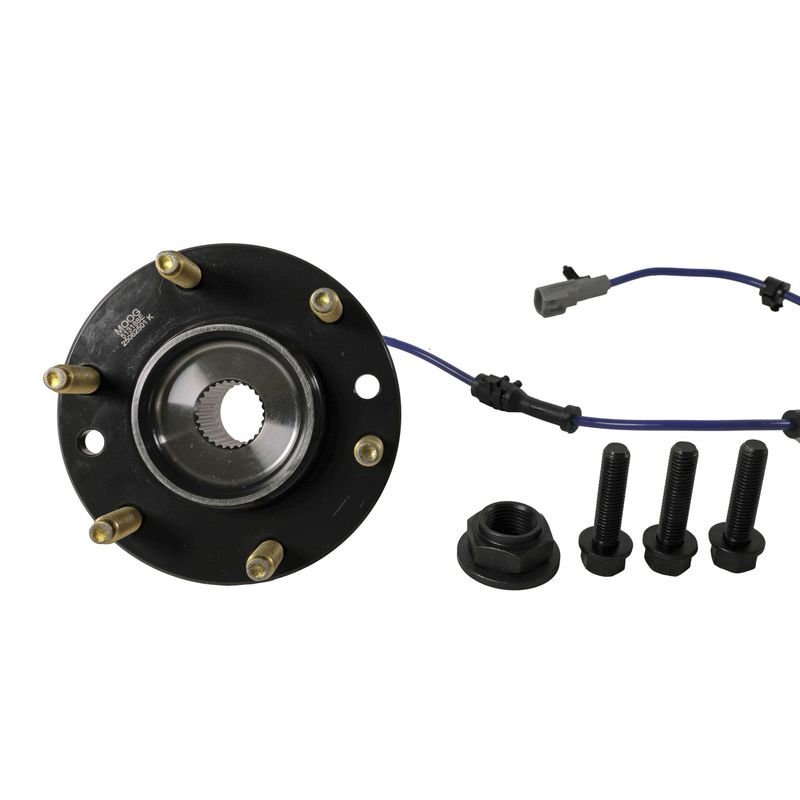

Moog 513188E Wheel Bearing and Hub Assembly - Front
| Brand | Moog 513188E |
|---|---|
| Position | Front |
| Spline Quantity | 27 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 77.800 |
| Brake Pilot Diameter | 79.000 |
| Wheel Stud Quantity | 6 |
| Hub Pilot Diameter | 83.500 |
| Flange Shape | Triangular |
| Anti Lock Brake Sensor Included | Yes |
| Flange Offset | 46.900 |
| Flange Diameter | 150.300 |
| Bolt Circle Diameter | 127.000 |
| Bolt Circle Diameter | 5.000 |
| Fits | Buick, Chevrolet, GMC, Isuzu, Oldsmobile, and Saab · 50 vehicles |
Coated hub assembly. Helps resist corrosion and supports longer service life.
ABS sensor included. Built for sensor-equipped hub replacement service.
Hardware in the box. Includes the parts needed to complete the repair.
Cross-references Beck/Arnley 051-6171, Centric Parts 402.62004 and Centric Parts 402.62004E for the same application. See all 30.
Wheel Bearing and Hub Assembly
MOOG 513188E is a coated wheel bearing and hub assembly for front applications. It is built for vehicles that use a 6-lug hub with an integrated ABS sensor, and it includes the hardware needed for the repair.
Key Features
- Coated hub assembly for added corrosion resistance.
- Integrated ABS sensor included for direct replacement service.
- Triangular flange design with 3 flange bolt holes.
- 6 wheel studs, 27 spline quantity, and a 5.000 bolt circle diameter.
- MOOG 513188E is engineered with defined pilot diameters for accurate hub fit.
Detailed Description
This wheel bearing and hub assembly is a fitment-based replacement for front hub service on Chevrolet Trailblazer, GMC Envoy, Saab 9-7x, Isuzu Ascender, Buick Rainier, Chevrolet SSR, Chevrolet Trailblazer EXT, GMC Envoy XL, GMC Envoy XUV, and Oldsmobile Bravada applications. The coated construction helps protect the assembly during service, while the integrated ABS sensor supports vehicles that require sensor-equipped hub replacement. MOOG 513188E is a practical choice when replacing a worn front hub on Chevrolet Trailblazer or GMC Envoy platforms that use this specific hub configuration.
What It Is Used For
- Wheel bearing noise from a worn front hub assembly.
- ABS warning light caused by a failed hub sensor.
- Loose or rough wheel rotation from hub wear.
- Hub replacement on vehicles with the specified bolt pattern and pilot dimensions.
- Corrosion-related service issues on the hub mounting surface.
Installation Notes and Tips
Verify spline count, bolt circle diameter, flange offset, and pilot diameters before installation. Confirm front fitment for the exact vehicle application and compare the existing hub configuration to MOOG 513188E before removal. Because this assembly includes an ABS sensor, inspect the related wiring and connector condition during service.
Quality Assurance
MOOG describes this coated hub assembly as a problem-solving replacement designed to extend product life and simplify service. The included hardware helps technicians complete the repair with the parts needed in the box.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2009 | Chevrolet | Trailblazer | Front | — |
| 2009 | GMC | Envoy | Front | — |
| 2009 | Saab | 9-7x | Front | — |
| 2008 | Chevrolet | Trailblazer | Front | — |
| 2008 | GMC | Envoy | Front | — |
| 2008 | Isuzu | Ascender | Front | — |
| 2008 | Saab | 9-7x | Front | — |
| 2007 | Buick | Rainier | Front | — |
| 2007 | Chevrolet | Trailblazer | Front | — |
| 2007 | GMC | Envoy | Front | — |
| 2007 | Isuzu | Ascender | Front | — |
| 2007 | Saab | 9-7x | Front | — |
| 2006 | Buick | Rainier | Front | — |
| 2006 | Chevrolet | SSR | Front | — |
| 2006 | Chevrolet | Trailblazer | Front | — |
| 2006 | Chevrolet | Trailblazer EXT | Front | — |
| 2006 | GMC | Envoy | Front | — |
| 2006 | GMC | Envoy XL | Front | — |
| 2006 | Isuzu | Ascender | Front | — |
| 2006 | Saab | 9-7x | Front | — |
| 2005 | Buick | Rainier | Front | — |
| 2005 | Chevrolet | SSR | Front | — |
| 2005 | Chevrolet | Trailblazer | Front | — |
| 2005 | Chevrolet | Trailblazer EXT | Front | — |
| 2005 | GMC | Envoy | Front | — |
| 2005 | GMC | Envoy XL | Front | — |
| 2005 | GMC | Envoy XUV | Front | — |
| 2005 | Isuzu | Ascender | Front | — |
| 2005 | Saab | 9-7x | Front | — |
| 2004 | Buick | Rainier | Front | — |
| 2004 | Chevrolet | SSR | Front | — |
| 2004 | Chevrolet | Trailblazer | Front | — |
| 2004 | Chevrolet | Trailblazer EXT | Front | — |
| 2004 | GMC | Envoy | Front | — |
| 2004 | GMC | Envoy XL | Front | — |
| 2004 | GMC | Envoy XUV | Front | — |
| 2004 | Isuzu | Ascender | Front | — |
| 2004 | Oldsmobile | Bravada | Front | — |
| 2003 | Chevrolet | SSR | Front | — |
| 2003 | Chevrolet | Trailblazer | Front | — |
| 2003 | Chevrolet | Trailblazer EXT | Front | — |
| 2003 | GMC | Envoy | Front | — |
| 2003 | GMC | Envoy XL | Front | — |
| 2003 | Isuzu | Ascender | Front | — |
| 2003 | Oldsmobile | Bravada | Front | — |
| 2002 | Chevrolet | Trailblazer | Front | — |
| 2002 | Chevrolet | Trailblazer EXT | Front | — |
| 2002 | GMC | Envoy | Front | — |
| 2002 | GMC | Envoy XL | Front | — |
| 2002 | Oldsmobile | Bravada | Front | — |
| No rows match your filter. | ||||
