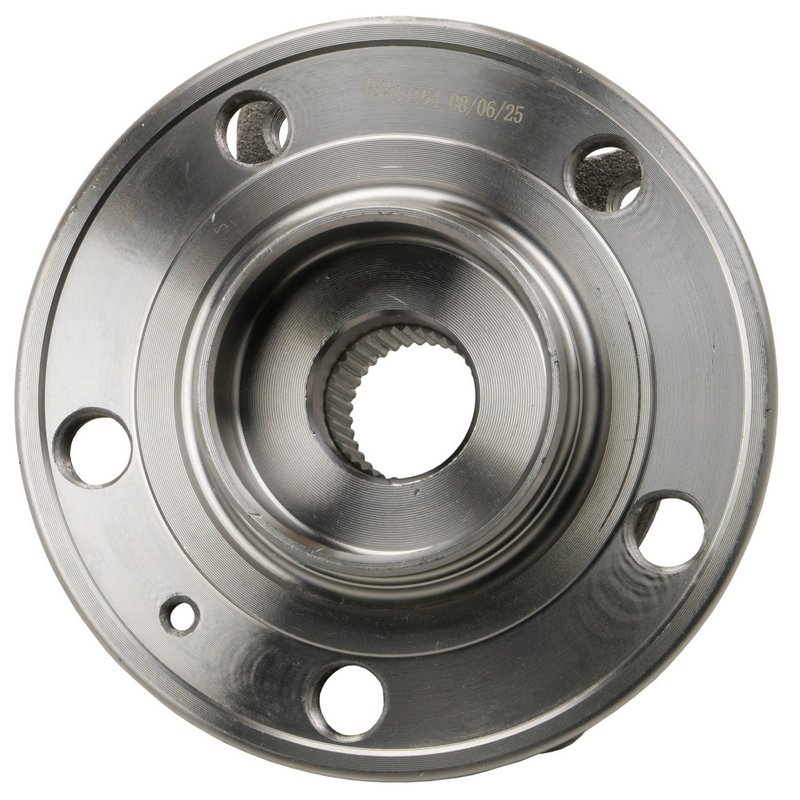

Moog 513194 Wheel Bearing and Hub Assembly - Front

Overview of Moog 513194 Wheel Bearing and Hub Assembly

The Moog 513194 wheel bearing and hub assembly is engineered for reliable performance in Volvo vehicles, including the S60, S80, V70, and XC70 models. Designed to meet precise specifications, this component ensures proper wheel alignment and smooth rotation.

• 36 spline quantity for secure axle engagement
• 5 wheel studs for stable wheel mounting
• 4 flange bolt holes with a bolt circle diameter of 108 mm (4.250 inches)
• Wheel pilot diameter of 65.000 mm and brake pilot diameter of 68.000 mm
• Hub pilot diameter of 85.700 mm for accurate fitment
• Flange diameter of 135.600 mm and flange offset of 42.900 mm
• Does not include an anti-lock brake sensor

Detailed Product Description

The Moog 513194 wheel bearing and hub assembly is designed specifically for Volvo S60, S80, V70, and XC70 models, providing a precise fit and reliable operation. The assembly features a 36-spline axle interface, ensuring a secure connection to the drivetrain. With 5 wheel studs and 4 flange bolt holes arranged on a 108 mm bolt circle diameter, this hub assembly supports stable wheel mounting and proper torque distribution. The wheel pilot diameter of 65 mm and brake pilot diameter of 68 mm help maintain correct alignment of the wheel and brake components, while the hub pilot diameter of 85.7 mm ensures the assembly seats accurately on the axle. The flange diameter of 135.6 mm combined with a flange offset of 42.9 mm is engineered to match factory specifications, maintaining vehicle handling characteristics. This assembly does not include an anti-lock brake sensor, so it is compatible with vehicles that have separate ABS sensor components.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings causing noise or vibration
• Fixes wheel hub looseness or play affecting steering stability
• Resolves uneven tire wear due to improper wheel alignment
• Addresses ABS sensor issues by providing a compatible hub without integrated sensor
• Restores proper wheel mounting and brake rotor alignment

Installation Notes and Tips

• Ensure compatibility with Volvo S60, S80, V70, and XC70 models before installation
• Verify spline count and bolt pattern match the vehicle’s axle and wheel hub
• Use proper torque specifications on flange bolts and wheel studs to avoid premature wear
• Inspect related suspension and brake components during installation for overall system integrity
• ABS sensor wiring and components must be handled separately as this assembly does not include an ABS sensor

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for durability and performance. The 513194 part number undergoes rigorous quality control to ensure precise fitment and long service life. While specific warranty details may vary, Moog typically offers coverage against defects in materials and workmanship, providing confidence in the product’s reliability for Volvo S60, S80, V70, and XC70 owners.
