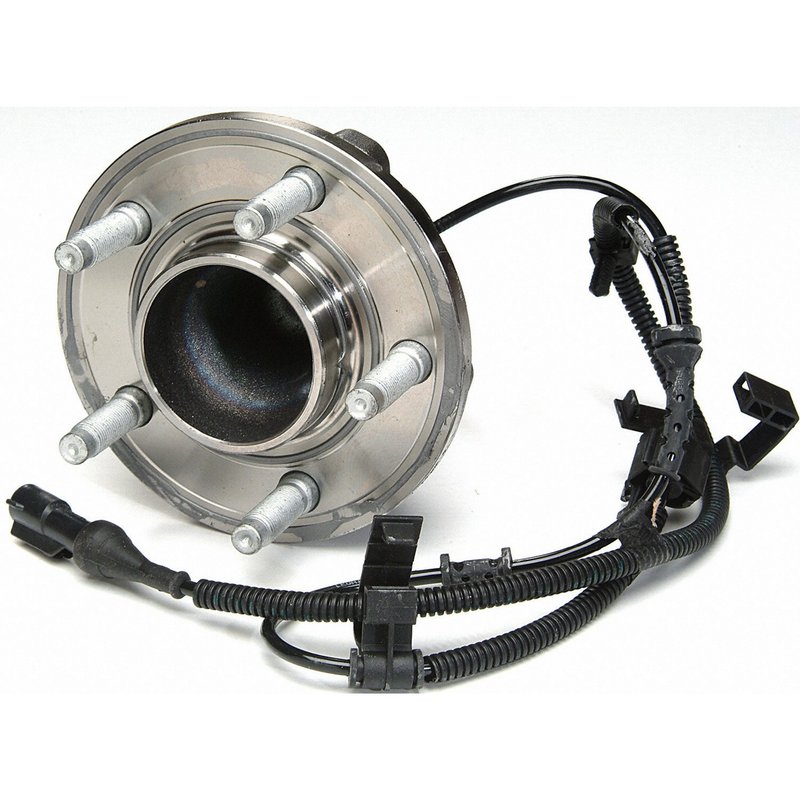

Moog 513196 Wheel Bearing and Hub Assembly - Front

Moog 513196 Wheel Bearing and Hub Assembly Overview

The Moog 513196 wheel bearing and hub assembly is engineered for reliable performance on Ford, Lincoln, and Mercury vehicles. Designed specifically for models like the Crown Victoria, Grand Marquis, Marauder, and Town Car, this assembly ensures precise fitment and durability.

• Flange bolt hole quantity: 4 for secure mounting
• Wheel pilot diameter: 70.500 mm for accurate wheel alignment
• Brake pilot diameter: 71.600 mm to support brake component fitment
• Wheel stud quantity: 5 for stable wheel attachment
• Hub pilot diameter: 87.000 mm ensuring proper hub centering
• Rectangular flange shape with 37.500 mm flange offset
• Flange diameter: 151.000 mm and bolt circle diameter: 114.300 mm (4.5 inches)
• Includes anti-lock brake sensor for ABS functionality

Technical Details and Compatibility

This Moog wheel bearing and hub assembly (part number 513196) is designed to meet the exact specifications required by Ford, Lincoln, and Mercury vehicles, including the Crown Victoria, Grand Marquis, Marauder, and Town Car. The assembly features a 5-stud wheel configuration and a rectangular flange shape, providing a secure and precise fit. The included anti-lock brake sensor integrates seamlessly with the vehicle’s ABS system, maintaining safety and performance standards.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings causing noise or vibration
• Fixes wheel hub looseness or play affecting vehicle handling
• Restores proper ABS sensor function to prevent brake system warnings
• Addresses wheel alignment issues related to hub pilot diameter wear
• Resolves brake component misalignment due to flange or brake pilot diameter inconsistencies

Installation Notes and Tips

When installing the Moog 513196 wheel bearing and hub assembly, ensure the flange bolt holes align correctly with the vehicle’s mounting points. Verify the wheel pilot and brake pilot diameters match the existing components to avoid fitment issues. Proper torque specifications should be followed for the 4 flange bolts and 5 wheel studs to maintain safety and performance. It is recommended to inspect the ABS sensor wiring during installation to ensure proper connection and function.

Quality Assurance and Warranty

Moog manufactures the 513196 wheel bearing and hub assembly to meet OEM standards, providing reliable durability and performance. This part includes an integrated anti-lock brake sensor to maintain vehicle safety systems. Moog typically offers a limited warranty on their wheel bearing and hub assemblies; please refer to the specific warranty terms provided at purchase for coverage details.
