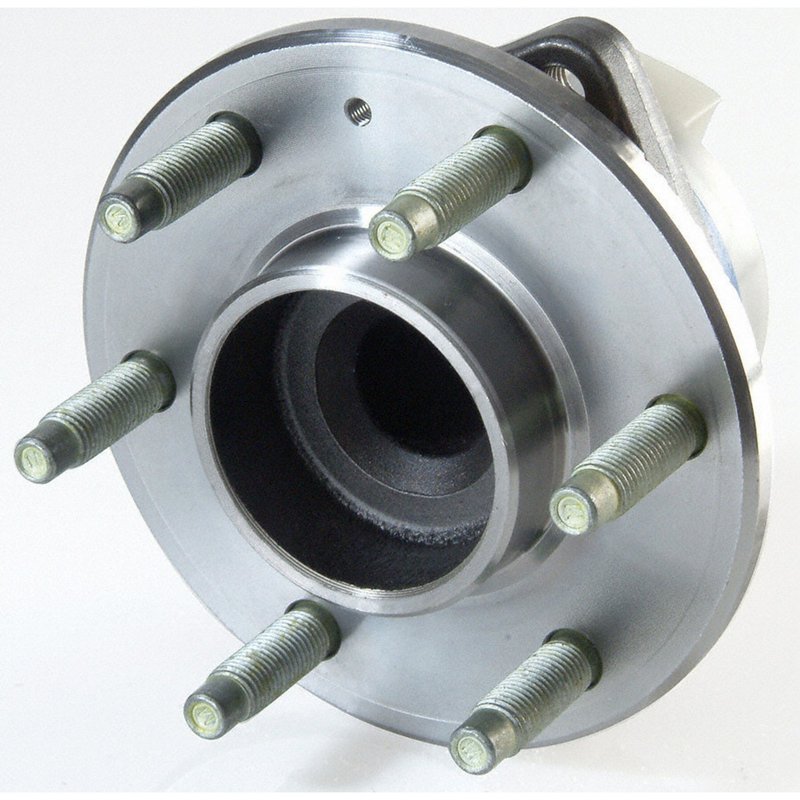

Moog 513197 Wheel Bearing and Hub Assembly - Front or Rear

Moog Wheel Bearing and Hub Assembly Overview

The Moog 513197 wheel bearing and hub assembly is engineered for reliable performance in select Buick, Cadillac, Chevrolet, and Pontiac vehicles. Designed to meet OEM specifications, this assembly ensures proper fit and function for models including the CTS, Montana, SRX, STS, Terraza, and Uplander.

• Flange bolt hole quantity: 3 for secure mounting
• Wheel pilot diameter: 70.100 mm for precise wheel alignment
• Brake pilot diameter: 70.600 mm to support brake component fitment
• Wheel stud quantity: 6 for stable wheel attachment
• Hub pilot diameter: 91.200 mm ensuring correct hub positioning
• Modified flange shape with 42.000 mm flange offset
• Flange diameter: 145.000 mm and bolt circle diameter: 115.000 mm (4.527 inches)
• Includes anti-lock brake sensor for ABS functionality

Technical Details and Compatibility

The Moog 513197 wheel bearing and hub assembly is designed with a modified flange shape and a flange offset of 42.000 mm, providing a precise fit for the specified GM vehicles. The assembly includes six wheel studs and three flange bolt holes, supporting secure wheel mounting and alignment. The integrated anti-lock brake sensor ensures compatibility with ABS systems, maintaining vehicle safety and performance. This part is compatible with Buick CTS, Cadillac SRX and STS, Chevrolet Montana and Uplander, and Pontiac Terraza models, making it a suitable replacement for worn or damaged wheel hubs in these vehicles.

Common Applications and Problem Resolution

• Replaces worn or noisy wheel bearings causing vibration or humming sounds
• Restores proper wheel alignment and reduces uneven tire wear
• Resolves ABS sensor faults related to hub assembly issues
• Eliminates wheel play or looseness for improved handling
• Addresses brake component misalignment due to hub damage

Installation Notes and Tips

Installation of the Moog 513197 wheel bearing and hub assembly requires proper torque specifications for the three flange bolts and six wheel studs. Ensure the brake pilot diameter and wheel pilot diameter align correctly with the vehicle’s brake and wheel components. Verify ABS sensor connections are secure to maintain anti-lock brake system functionality. It is recommended to inspect related suspension and brake components during installation for optimal performance.

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards, providing reliable durability and performance. The 513197 part number is backed by Moog’s quality assurance processes, including rigorous testing for fit, form, and function. Warranty coverage details can be obtained from Moog or authorized distributors to ensure confidence in your replacement part.
