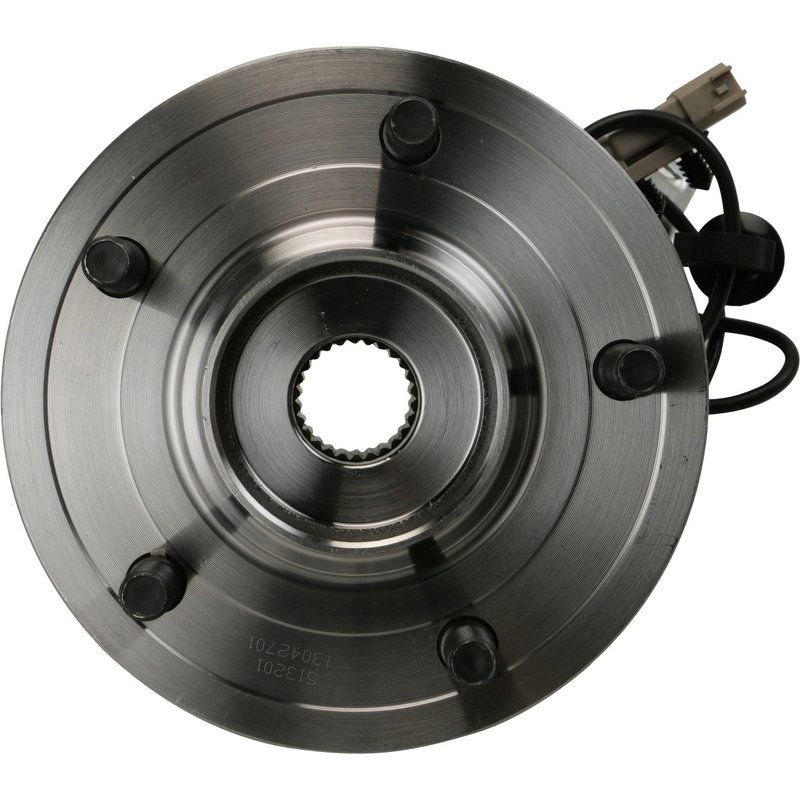

Moog 513201 Wheel Bearing and Hub Assembly - Front

Moog 513201 Wheel Bearing and Hub Assembly Overview

The Moog 513201 wheel bearing and hub assembly is engineered for precise fitment on Chrysler Pacifica models. Designed to meet OEM specifications, this assembly ensures reliable performance and durability for your vehicle's driveline system.

• 26 spline quantity for secure axle engagement
• 5 wheel studs and 4 flange bolt holes for stable mounting
• Wheel pilot diameter of 71.4 mm and brake pilot diameter of 81.9 mm
• Hub pilot diameter measures 84.4 mm for accurate alignment
• Modified flange shape with a flange diameter of 166.9 mm
• Flange offset of 48.6 mm to maintain proper wheel positioning
• Includes anti-lock brake sensor for ABS functionality
• Bolt circle diameter of 127 mm with 5.0 mm bolt size

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 513201) is specifically designed for Chrysler Pacifica vehicles, providing a direct replacement for the original component. The 26 spline axle interface ensures a secure connection, while the 5 wheel studs and 4 flange bolt holes offer a robust mounting platform. The modified flange shape and precise flange offset maintain proper wheel alignment and balance. Additionally, the included anti-lock brake sensor supports the vehicle's ABS system, contributing to safe braking performance.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with Chrysler Pacifica models requiring a 26 spline, 5-stud hub with ABS sensor integration. It is suitable for addressing issues related to wheel bearing wear, hub damage, or ABS sensor faults.

• Eliminates wheel bearing noise and vibration
• Resolves wheel hub looseness or play
• Restores ABS sensor functionality
• Corrects wheel alignment problems caused by flange offset
• Prevents premature tire wear due to hub misalignment

Installation Notes and Tips

When installing the Moog 513201 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify the spline count and bolt pattern match the original part. Proper torque specifications should be followed for flange bolts and wheel studs. Confirm ABS sensor connections are secure and free of damage. It is recommended to inspect related suspension and brake components during installation.

Quality Assurance and Warranty

Moog manufactures this wheel bearing and hub assembly to meet or exceed OEM standards, ensuring reliable performance and durability. The part number 513201 comes with Moog's standard warranty coverage, providing confidence in the product's quality and longevity for Chrysler Pacifica owners.
