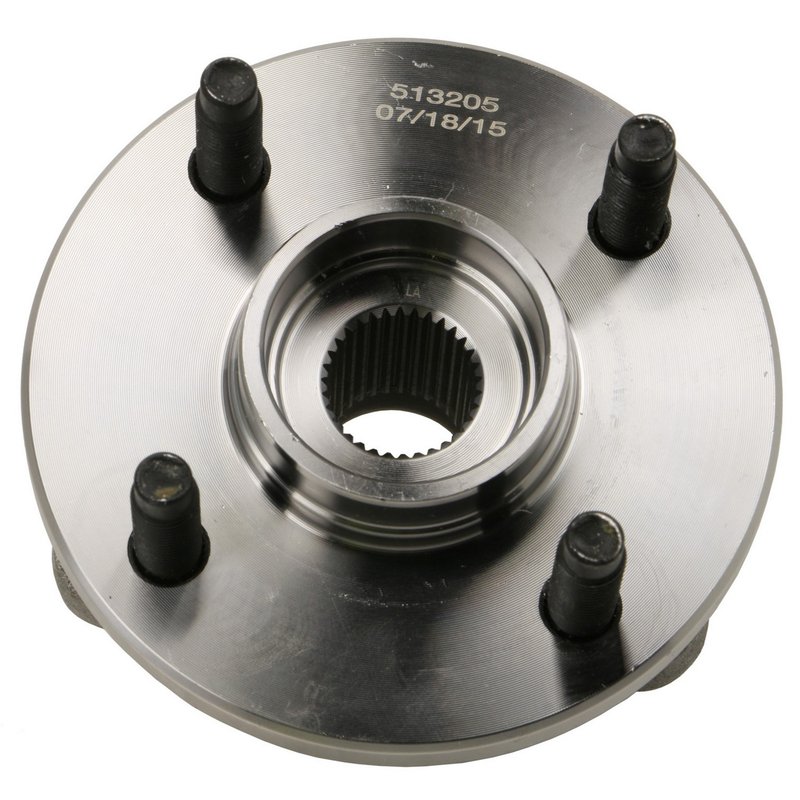

Moog 513205 Wheel Bearing and Hub Assembly - Front
| Brand | Moog 513205 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | No |
| Bolt Circle Diameter | 3.937 |
| Bolt Circle Diameter | 100.000 |
| Brake Pilot Diameter | 59.500 |
| Flange Bolt Hole Quantity | 3 |
| Flange Diameter | 132.500 |
| Flange Offset | 39.000 |
| Flange Shape | MODIFIED |
| Hub Pilot Diameter | 85.000 |
| Spline Quantity | 33 |
| Wheel Pilot Diameter | 56.500 |
| Wheel Stud Quantity | 4 |
| Fits | Chevrolet, Pontiac, and Saturn · 17 vehicles |
Fast, hassle-free installation. MOOG problem-solving innovations simplify the job.
Reliable performance. Backed by superior materials and rigorous testing.
Wheel bearing and hub assembly. A complete hub solution for driveline and axle service.
Cross-references Centric Parts 400.62003, Centric Parts 400.62003E and GMB 799-0156 for the same application. See all 19.
Wheel Bearing and Hub Assembly for Front Applications
The MOOG 513205 wheel bearing and hub assembly is built for front-wheel service on select Chevrolet, Pontiac, and Saturn vehicles. It combines a 4-stud wheel mounting pattern with a 33-spline hub design to support proper wheel attachment and driveline engagement.
Compatible With 2005-2010 Chevrolet Cobalt, front; 2007-2010 Pontiac G5, front; 2003-2007 Saturn Ion, front; and 2005-2006 Pontiac Pursuit, front.
Key Features
- MOOG wheel bearing and hub assembly, part number 513205
- Front hub assembly with 33 spline quantity
- 4 wheel studs and 3 flange bolt holes
- Modified flange shape with 39.000 flange offset
- Wheel pilot diameter: 56.500
- Brake pilot diameter: 59.500
- Hub pilot diameter: 85.000
- Bolt circle diameter: 100.000 / 3.937
- Anti-lock brake sensor not included
Detailed Description
MOOG 513205 is a front wheel bearing and hub assembly engineered for select compact GM platforms, including the Chevrolet Cobalt, Pontiac G5, Saturn Ion, and Pontiac Pursuit. The hub features a modified flange design, 4-stud wheel mounting, and dimensions that support correct wheel and brake interface alignment. MOOG uses tested materials and application-focused design details to help simplify replacement work and deliver consistent service performance.
This part cross-references SKF BR930315 for the same application. It also cross-references Timken HA590069 for the same application.
What It Helps Solve
- Wheel bearing noise from a worn front hub assembly
- Excessive wheel play or looseness at the hub
- Vibration or roughness from a failing bearing surface
- Improper wheel mounting caused by hub wear
- ABS-related service concerns when the original sensor is not reused here
Installation Notes and Tips
Verify front-position fitment before installation and confirm the vehicle uses the 4-stud wheel bearing and hub assembly application listed for this part. Check spline count, bolt circle diameter, flange offset, and pilot diameters against the original hub before assembly. Because the anti-lock brake sensor is not included, transfer or service the sensor separately if the vehicle requires one.
Quality Assurance
MOOG hub assemblies are backed by material selection and testing practices intended to support dependable operation in daily driving conditions. The brand’s problem-solving design approach focuses on reducing installation friction and helping the replacement process go smoothly.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Chevrolet | Cobalt | 2.2L | L4 | Front | 4-stud wheel bearing and hub assembly application |
| 2010 | Pontiac | G5 | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2009 | Chevrolet | Cobalt | 2.2L | L4 | Front | 4-stud wheel bearing and hub assembly application |
| 2009 | Pontiac | G5 | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2008 | Chevrolet | Cobalt | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2008 | Pontiac | G5 | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2007 | Chevrolet | Cobalt | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2007 | Pontiac | G5 | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2007 | Saturn | Ion | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2006 | Chevrolet | Cobalt | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2006 | Pontiac | Pursuit | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2006 | Saturn | Ion | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2005 | Chevrolet | Cobalt | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2005 | Pontiac | Pursuit | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2005 | Saturn | Ion | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2004 | Saturn | Ion | — | — | Front | 4-stud wheel bearing and hub assembly application |
| 2003 | Saturn | Ion | — | — | Front | 4-stud wheel bearing and hub assembly application |
