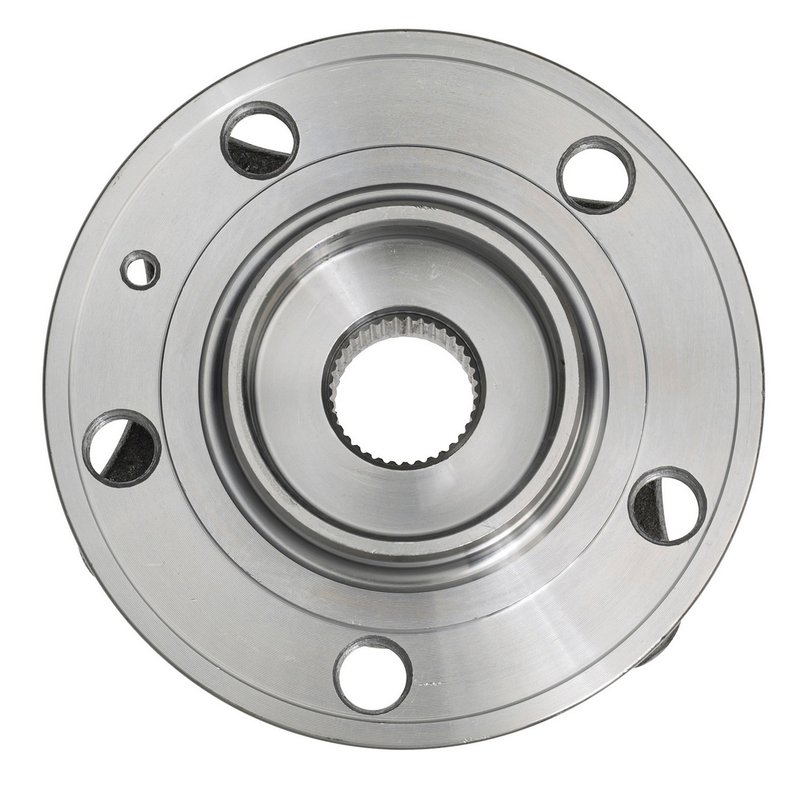

Moog 513208 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Volvo XC90

Moog 513208 is a front wheel bearing and hub assembly for select Volvo XC90 applications. It is built with design updates aimed at extending service life and making installation and replacement more straightforward, while supporting the hub, wheel mounting, and bearing functions at the front axle.

Key Features

• Front wheel bearing and hub assembly for Volvo XC90 fitment
• 36 spline quantity
• 5 wheel studs with a 4-bolt flange design
• Modified flange shape with 43.100 flange offset
• 135.700 flange diameter and 108.000 bolt circle diameter
• Wheel pilot diameter: 66.900
• Brake pilot diameter: 68.000
• Hub pilot diameter: 87.500
• Anti-lock brake sensor not included

Detailed Description

Moog 513208 is engineered for front axle service on the Volvo XC90, covering 2003-2006 Volvo XC90, front and 2007 Volvo XC90, front to chassis serial number 367133. This wheel bearing and hub assembly supports wheel mounting and rotation at the front of the vehicle while matching the specified hub, pilot, bolt circle, and flange dimensions for proper fitment. Moog continues to refine its chassis components with design improvements that help simplify replacement and support longer service life. This part cross-references SKF BR930504 and Timken HA590223 for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or growling
• Wheel looseness or play at the hub
• Uneven front-end vibration related to hub wear
• ABS-related service needs when the original sensor is not reused from this assembly
• Hub mounting wear that affects wheel alignment feel and road stability

Installation Notes and Tips

Verify the vehicle year, model, and chassis serial number before ordering, especially for 2007 Volvo XC90 front applications. Confirm spline count, bolt circle diameter, flange offset, and pilot diameters against the original part before installation. Inspect the knuckle, axle interface, and mounting surfaces for wear or corrosion, and follow factory torque specifications during assembly. Because the anti-lock brake sensor is not included, transfer or source the sensor as required by the vehicle configuration.

Quality Assurance

Moog is known in the chassis category for ongoing design enhancements that focus on durability and easier service. Moog 513208 is built to meet the dimensional requirements of the listed Volvo XC90 front applications and to support reliable replacement service.
