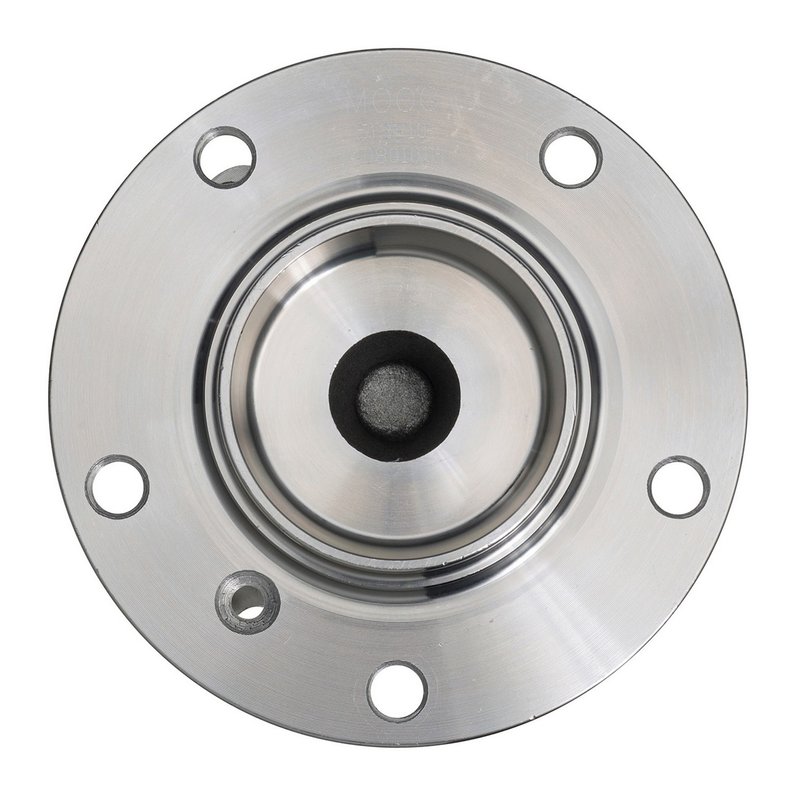

Moog 513210 Wheel Bearing and Hub Assembly - Front

Moog 513210 Wheel Bearing and Hub Assembly Overview

The Moog 513210 wheel bearing and hub assembly is engineered for precise fitment on select BMW models including the 525i, 528i, 530i, 535i, 545i, 550i, 645Ci, and 650i. Designed to meet OEM specifications, this assembly ensures reliable performance and proper integration with your vehicle's driveline system.

• Flange bolt hole quantity: 4 for secure mounting
• Wheel pilot diameter: 72.5 mm for accurate wheel alignment
• Brake pilot diameter: 79.0 mm to support brake component fitment
• Wheel stud quantity: 5 for stable wheel attachment
• Hub pilot diameter: 90.0 mm ensuring proper hub centering
• Modified trapezoid flange shape for compatibility
• Includes anti-lock brake sensor for ABS functionality
• Flange offset: 50.9 mm to maintain correct wheel positioning
• Flange diameter: 142.8 mm for proper hub interface
• Bolt circle diameter: 120.0 mm (4.689 inches) matching OEM bolt pattern

Detailed Product Description

The Moog 513210 wheel bearing and hub assembly is a critical component in the driveline and axles category, specifically designed for BMW vehicles such as the 525i, 528i, 530i, 535i, 545i, 550i, 645Ci, and 650i. This assembly features a 5-stud wheel configuration and a 4-hole flange bolt pattern, ensuring a secure and precise fit. The wheel pilot diameter of 72.5 mm and brake pilot diameter of 79.0 mm provide accurate alignment for wheels and brake components, while the 90.0 mm hub pilot diameter centers the hub correctly on the axle. The modified trapezoid flange shape and flange offset of 50.9 mm maintain proper wheel positioning and clearance. Additionally, the included anti-lock brake sensor supports the vehicle's ABS system, contributing to safe braking performance.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings causing noise or vibration
• Fixing wheel hub assemblies with excessive play or looseness
• Restoring ABS sensor functionality in affected BMW 5 and 6 Series models
• Addressing wheel alignment issues related to hub pilot or flange wear
• Resolving brake component misalignment due to hub assembly defects

Installation Notes and Tips

When installing the Moog 513210 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify the flange bolt hole quantity and wheel stud count match your vehicle’s specifications. Proper torque settings should be applied to all mounting bolts to avoid premature wear or failure. The included anti-lock brake sensor must be connected correctly to maintain ABS functionality. It is recommended to inspect related suspension and brake components during installation for any additional wear or damage.

Quality Assurance and Warranty

Moog manufactures the 513210 wheel bearing and hub assembly to meet or exceed OEM standards, providing reliable performance and durability. This part includes an integrated anti-lock brake sensor to maintain factory safety features. Moog typically offers a limited warranty covering defects in materials and workmanship; please refer to official Moog documentation for specific warranty terms.
