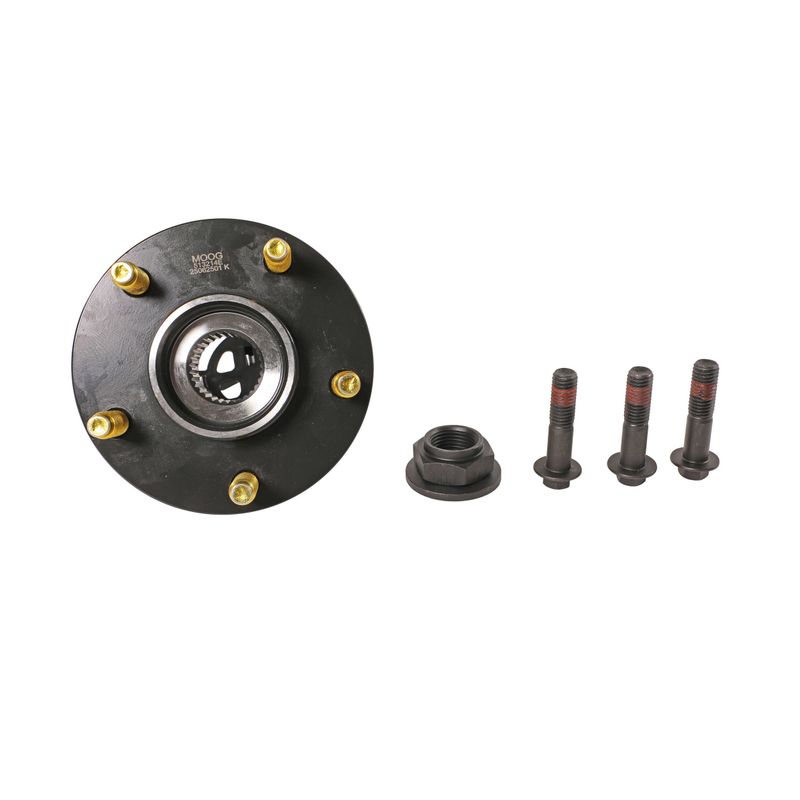

Moog 513214E Wheel Bearing and Hub Assembly - Front
| Brand | Moog 513214E |
|---|---|
| Position | Front |
| Spline Quantity | 30 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Pilot Diameter | 65.000 |
| Brake Pilot Diameter | 65.400 |
| Wheel Stud Quantity | 5 |
| Hub Pilot Diameter | 89.100 |
| Flange Shape | Modified |
| Anti Lock Brake Sensor Included | Yes |
| Flange Offset | 39.000 |
| Flange Diameter | 137.000 |
| Bolt Circle Diameter | 110.000 |
| Bolt Circle Diameter | 4.330 |
| Fits | Chevrolet, Pontiac, and Saturn · 24 vehicles |
Coated hub design. Helps resist corrosion-related wear during service.
ABS sensor included. Supports replacement on equipped hub applications.
Direct-fit hub assembly. Built with matched pilot and bolt-circle dimensions.
Cross-references ATP 102042, Centric Parts 402.62018E and GMB 799-0158 for the same application. See all 28.
Wheel Bearing and Hub Assembly Overview
The MOOG 513214E wheel bearing and hub assembly is built for front-end service on select Chevrolet, Pontiac, and Saturn applications. It combines a coated hub design with integrated ABS sensor support and the key hub dimensions needed for a direct replacement repair.
Fits 2004-2012 Chevrolet Malibu, front; fits 2008-2010 Chevrolet Cobalt, front; fits 2008-2010 Chevrolet HHR, front; fits 2005-2010 Pontiac G6, front; fits 2007-2009 Saturn Aura, front.
Key Features
- Coated hub assembly for added resistance to corrosion-related wear.
- Anti-lock brake sensor included for service on equipped vehicles.
- Five wheel studs and a modified flange shape for hub replacement applications.
- 30-spline hub design with 3 flange bolt holes.
- Hub, wheel pilot, and brake pilot dimensions matched to the application.
Detailed Description
MOOG 513214E is a wheel bearing and hub assembly for front-wheel service on the Chevrolet Malibu, Chevrolet Cobalt, Chevrolet HHR, Pontiac G6, and Saturn Aura. The assembly uses a coated hub construction and includes the ABS sensor, which helps streamline replacement work when servicing the front hub on these vehicles. The listed flange, bolt circle, pilot, and stud specifications support accurate fitment for the intended applications.
This part cross-references Timken HA590070 and SKF BR930317 for the same application.
Common Repair Uses
- Wheel bearing noise from a worn front hub assembly.
- ABS warning light caused by a failed hub-mounted sensor.
- Excessive wheel play or looseness at the hub.
- Vibration or rough rotation from hub bearing wear.
- Corrosion-related service issues at the hub mounting area.
Installation Notes and Tips
Verify the vehicle’s front hub specifications against the listed dimensions before installation. Confirm ABS sensor compatibility and inspect the mating surfaces, axle splines, and mounting points for wear or damage during service. Use the part number 513214E and the vehicle application details to confirm the correct replacement before beginning the repair.
Quality Assurance
MOOG coated hub assemblies are engineered with problem-solving enhancements that extend product life and simplify replacement work. Part number 513214E is built for the specified front applications and is supported by MOOG’s hub assembly design standards.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Chevrolet | Malibu | — | — | — | Front | — |
| 2011 | Chevrolet | Malibu | — | — | — | Front | — |
| 2010 | Chevrolet | Cobalt | — | 2.0L | L4 | Front | — |
| 2010 | Chevrolet | HHR | SS | — | — | Front | — |
| 2010 | Chevrolet | Malibu | — | — | — | Front | — |
| 2010 | Pontiac | G6 | — | — | — | Front | — |
| 2009 | Chevrolet | Cobalt | — | 2.0L | L4 | Front | — |
| 2009 | Chevrolet | HHR | SS Panel | — | — | Front | — |
| 2009 | Chevrolet | Malibu | — | — | — | Front | — |
| 2009 | Pontiac | G6 | — | — | — | Front | — |
| 2009 | Saturn | Aura | — | — | — | Front | — |
| 2008 | Chevrolet | Cobalt | — | 2.0L | L4 | Front | — |
| 2008 | Chevrolet | HHR | SS | — | — | Front | — |
| 2008 | Chevrolet | Malibu | LTZ | — | — | Front | — |
| 2008 | Pontiac | G6 | — | — | — | Front | — |
| 2008 | Saturn | Aura | — | — | — | Front | — |
| 2007 | Chevrolet | Malibu | — | — | — | Front | — |
| 2007 | Pontiac | G6 | — | — | — | Front | — |
| 2007 | Saturn | Aura | — | — | — | Front | — |
| 2006 | Chevrolet | Malibu | — | — | — | Front | — |
| 2006 | Pontiac | G6 | — | — | — | Front | — |
| 2005 | Chevrolet | Malibu | — | — | — | Front | — |
| 2005 | Pontiac | G6 | — | — | — | Front | — |
| 2004 | Chevrolet | Malibu | — | — | — | Front | — |
