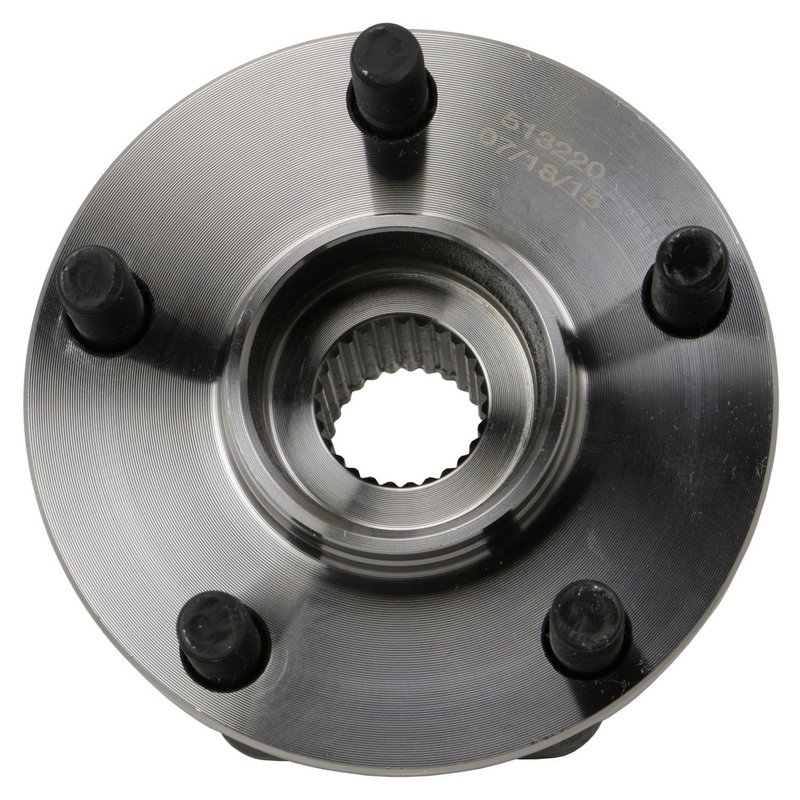

Moog 513220 Wheel Bearing and Hub Assembly - Front

Moog 513220 Wheel Bearing and Hub Assembly Overview

The Moog 513220 wheel bearing and hub assembly is engineered for Subaru Legacy and Outback models, providing reliable driveline performance. Designed with precise specifications, this assembly ensures proper fit and function for your vehicle's hub system.

• Compatible with Subaru Legacy and Outback models
• 27 spline quantity for secure axle engagement
• Includes anti-lock brake sensor for ABS functionality
• 5 wheel studs and 4 flange bolt holes for stable mounting
• Flange diameter of 124 mm and bolt circle diameter of 100 mm
• Wheel pilot diameter of 56 mm and brake pilot diameter of 58 mm
• Hub pilot diameter measures 76 mm with a flange offset of 49 mm

Technical Details and Specifications

The Moog 513220 wheel bearing and hub assembly features a 27-spline axle interface, ensuring a secure connection to the driveline. The assembly includes 5 wheel studs and 4 flange bolt holes, designed to match the bolt pattern of Subaru Legacy and Outback vehicles. The flange diameter is 124 mm with a bolt circle diameter of 100 mm, providing a precise fit for the hub mounting surface. The wheel pilot diameter is 56 mm, while the brake pilot diameter is slightly larger at 58 mm, accommodating brake components accurately. The hub pilot diameter is 76 mm, and the flange offset is 49 mm, which helps maintain proper wheel alignment and handling characteristics. Additionally, this assembly comes with an integrated anti-lock brake sensor to support the vehicle's ABS system.

Applications and Problem Solving

• Replaces worn or damaged wheel bearing and hub assemblies on Subaru Legacy and Outback
• Addresses wheel noise or vibration caused by bearing wear
• Restores proper ABS sensor function with included anti-lock brake sensor
• Corrects wheel alignment issues related to hub assembly wear
• Prevents premature tire wear due to hub or bearing failure

Installation Notes and Tips

When installing the Moog 513220 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify the spline count and bolt pattern match your Subaru Legacy or Outback model. Clean the mounting surface thoroughly before installation to prevent contamination. Torque all flange bolts and wheel studs to manufacturer specifications. Confirm ABS sensor connections are properly seated to maintain system functionality.

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for durability and performance. The 513220 part number undergoes rigorous testing to ensure reliability under normal operating conditions. This product includes a limited warranty covering defects in materials and workmanship, providing confidence in your replacement part.
