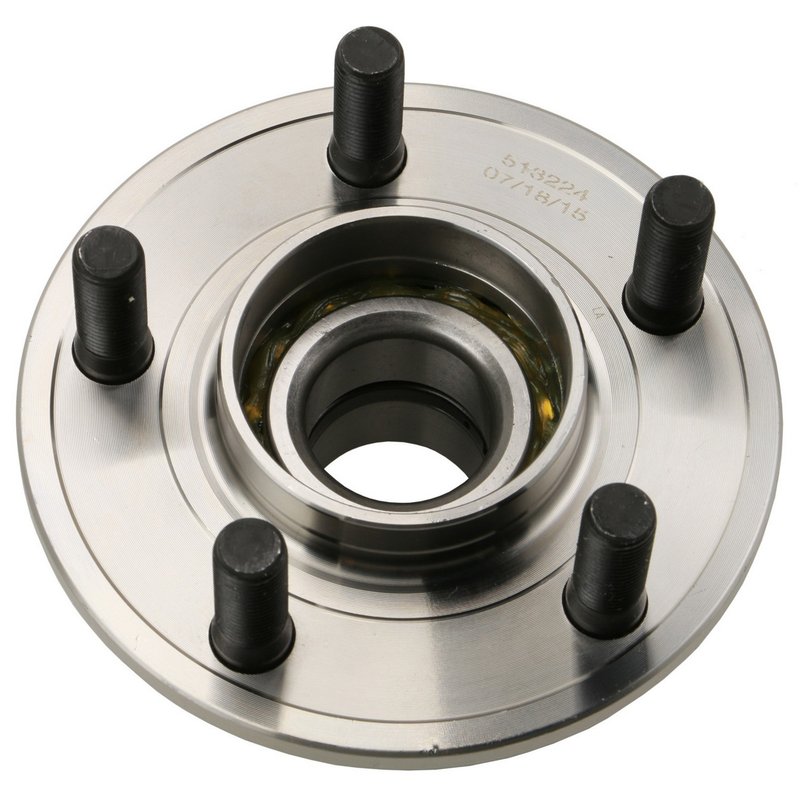

Moog 513224 Wheel Bearing and Hub Assembly - Front

Moog 513224 Wheel Bearing and Hub Assembly Overview

The Moog 513224 wheel bearing and hub assembly is engineered for reliable performance on Chrysler and Dodge vehicles, including the 300, Challenger, Charger, and Magnum models. Designed to meet OEM specifications, this assembly ensures proper fit and function for your driveline system.

• Wheel pilot diameter: 71.400 mm
• Brake pilot diameter: 72.500 mm
• 5 wheel studs for secure mounting
• Flange diameter: 149.800 mm
• Bolt circle diameter: 115.000 mm
• Includes anti-lock brake sensor for ABS compatibility

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 513224) features a 71.400 mm wheel pilot diameter and a 72.500 mm brake pilot diameter, ensuring precise alignment with the wheel and brake components. The assembly includes five wheel studs, providing a secure and stable connection to the wheel. The flange diameter measures 149.800 mm, and the bolt circle diameter is 115.000 mm, matching the exact specifications required for proper installation on compatible Chrysler and Dodge vehicles. Additionally, the integrated anti-lock brake sensor supports ABS functionality, maintaining vehicle safety systems without additional modifications.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with select Chrysler and Dodge models, specifically the 300, Challenger, Charger, and Magnum. It is designed to replace worn or damaged hub assemblies, restoring proper wheel rotation and braking performance on these vehicles.

• Eliminates wheel bearing noise and vibration
• Restores proper wheel alignment and rotation
• Ensures ABS sensor functionality for safety systems
• Prevents premature tire wear caused by hub issues
• Addresses wheel hub looseness or play

Installation Notes and Tips

When installing the Moog 513224 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Remove the existing hub assembly carefully to avoid damage to surrounding components. Verify that the wheel pilot and brake pilot diameters match the vehicle specifications. Connect the anti-lock brake sensor properly to maintain ABS system operation. Torque all fasteners to manufacturer specifications to ensure safe and reliable installation.

Quality Assurance and Warranty

Moog manufactures the 513224 wheel bearing and hub assembly to meet or exceed OEM standards, providing durability and consistent performance. This part includes an integrated ABS sensor to maintain vehicle safety features. Moog typically offers a limited warranty on their wheel bearing and hub assemblies; please refer to the product documentation or Moog's official resources for specific warranty details.
