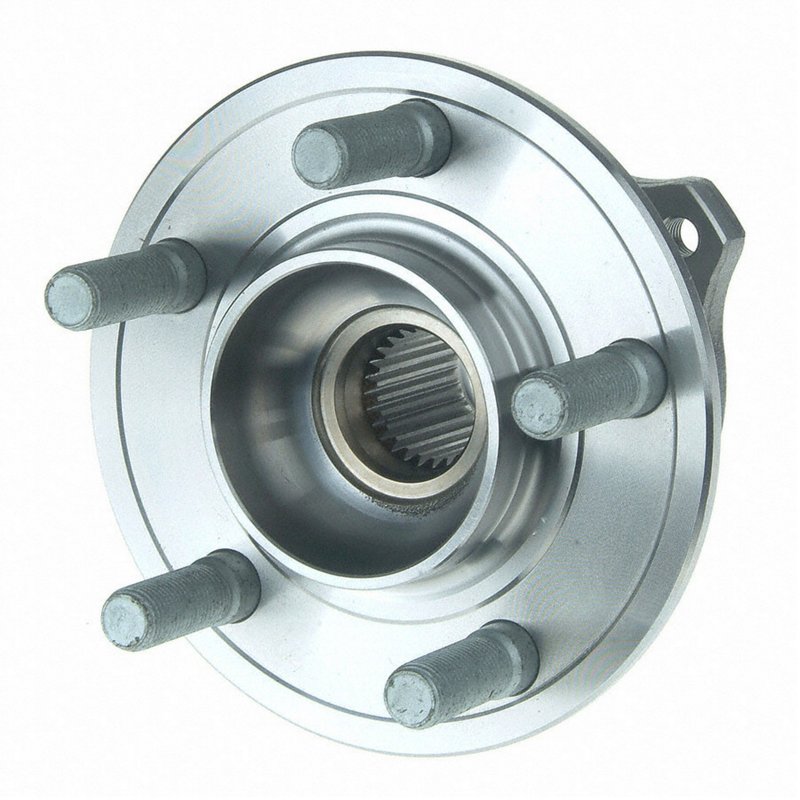

Moog 513225 Wheel Bearing and Hub Assembly - Front

Moog 513225 Wheel Bearing and Hub Assembly Overview

The Moog 513225 wheel bearing and hub assembly is engineered for reliable performance in Chrysler and Dodge vehicles, including the 300, Challenger, Charger, and Magnum models. Designed to meet OEM specifications, this assembly ensures proper fit and function for driveline and axle applications.

• 27 spline quantity for secure axle engagement
• 5 wheel studs for stable wheel mounting
• 4 flange bolt holes with a rectangular flange shape
• Wheel pilot diameter of 71.4 mm and brake pilot diameter of 72.5 mm
• Hub pilot diameter of 90.4 mm for precise alignment
• Flange diameter of 150 mm with a 115 mm bolt circle diameter
• Flange offset of 60.3 mm for correct positioning
• Does not include an anti-lock brake sensor

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 513225) is designed with a 27-spline axle interface, ensuring compatibility with specific Chrysler and Dodge driveline components. The assembly features a 5-stud wheel configuration and a rectangular flange shape with 4 bolt holes, providing a secure and stable connection to the vehicle’s hub. The wheel pilot diameter measures 71.4 mm, while the brake pilot diameter is slightly larger at 72.5 mm, allowing for proper brake rotor alignment. The hub pilot diameter of 90.4 mm ensures precise centering of the hub assembly on the axle shaft. The flange diameter is 150 mm with a bolt circle diameter of 115 mm (4.527 inches), which matches the factory specifications for the compatible vehicles. The flange offset of 60.3 mm positions the hub assembly correctly relative to the suspension components.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following makes and models:

• Chrysler 300
• Dodge Challenger
• Dodge Charger
• Dodge Magnum

It is designed for use in driveline and axle systems where precise fitment and durability are required.

Common Issues Addressed by Moog 513225

• Wheel bearing noise or roughness during rotation
• Excessive play or looseness in the wheel hub
• Uneven tire wear caused by hub misalignment
• Vibration or wobbling at higher speeds
• Failure of the hub assembly leading to compromised vehicle handling

Installation Notes and Tips

When installing the Moog 513225 wheel bearing and hub assembly, ensure the following:

• Verify compatibility with your specific Chrysler or Dodge model and year
• Use proper torque specifications for flange bolts and wheel studs
• Inspect related components such as axle shafts and brake rotors for wear
• Clean mounting surfaces to ensure proper seating of the hub assembly
• Check for absence of anti-lock brake sensor as this assembly does not include one

Quality Assurance and Warranty

Moog manufactures this wheel bearing and hub assembly to meet or exceed OEM standards, providing reliable performance and durability. While specific warranty details may vary, Moog typically offers a limited warranty covering defects in materials and workmanship. Refer to Moog’s official documentation for exact warranty terms related to part number 513225.
