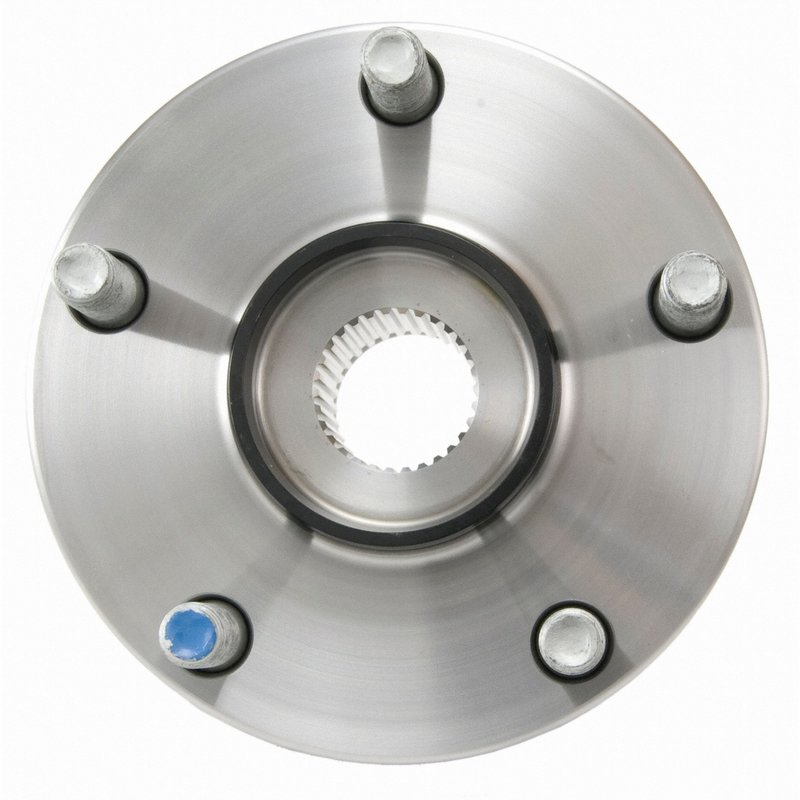

Moog 513258 Wheel Bearing and Hub Assembly - Front

Moog 513258 Wheel Bearing and Hub Assembly Overview

The Moog 513258 wheel bearing and hub assembly is engineered for reliable performance in select Toyota and Scion vehicles. Designed to meet precise specifications, this assembly supports smooth wheel rotation and integrates an anti-lock brake sensor for enhanced safety.

• Compatible with Toyota Mirai, RAV4, and Scion tC models
• Includes 26 spline quantity for secure axle connection
• Features 5 wheel studs and 4 flange bolt holes for stable mounting
• Equipped with an anti-lock brake sensor for ABS functionality
• Flange diameter of 139.0 mm and modified flange shape for proper fitment
• Wheel pilot diameter of 60.0 mm and brake pilot diameter of 62.0 mm
• Hub pilot diameter measures 90.0 mm with a flange offset of 47.5 mm
• Bolt circle diameter of 114.3 mm ensures compatibility with vehicle hubs

Technical Details and Specifications

The Moog 513258 wheel bearing and hub assembly is designed with a 26-spline axle interface, providing a secure and precise fit for the drivetrain. The assembly includes five wheel studs and four flange bolt holes, ensuring a stable and reliable connection to the vehicle’s hub. The flange features a modified shape with a diameter of 139 mm and an offset of 47.5 mm, tailored to fit the specific hub design of compatible Toyota and Scion models. The wheel pilot diameter of 60 mm and brake pilot diameter of 62 mm help maintain proper alignment of the wheel and brake components. Additionally, the hub pilot diameter of 90 mm supports accurate centering of the assembly on the axle. This part also integrates an anti-lock brake sensor, which is essential for maintaining ABS system functionality in the Toyota Mirai, RAV4, and Scion tC.

Compatible Vehicles and Applications

• Toyota Mirai wheel bearing and hub replacement
• Toyota RAV4 front or rear hub assembly upgrade
• Scion tC wheel hub and bearing maintenance
• Replacement for worn or damaged wheel bearing and hub assemblies in listed models
• Restores proper wheel alignment and ABS sensor operation

Installation Notes and Tips

When installing the Moog 513258 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify the spline count and bolt pattern match the vehicle specifications before installation. The anti-lock brake sensor must be connected properly to maintain ABS functionality. Torque all flange bolts and wheel studs to manufacturer specifications to avoid premature wear or failure. It is recommended to inspect related suspension and brake components during installation for overall system integrity.

Quality Assurance and Warranty

Moog manufactures the 513258 wheel bearing and hub assembly to meet or exceed OEM standards. The part undergoes rigorous testing to ensure durability and performance under normal driving conditions. This assembly includes an anti-lock brake sensor to maintain vehicle safety systems. Moog typically offers a limited warranty on their wheel bearing and hub assemblies; please refer to official Moog documentation for specific warranty details.
