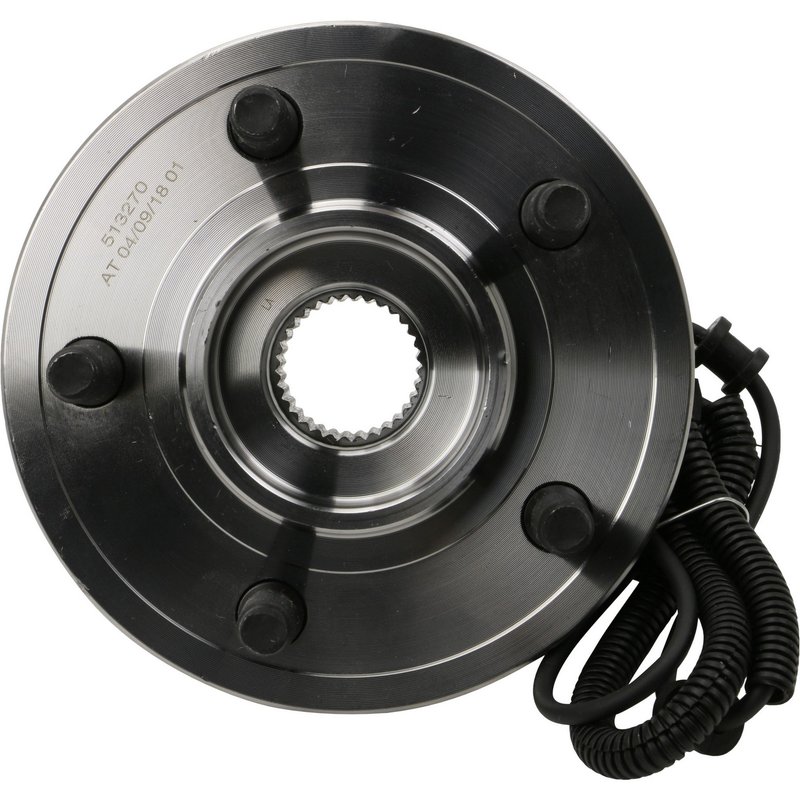

Moog 513270 Wheel Bearing and Hub Assembly - Front
| Brand | Moog 513270 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 4.500 |
| Bolt Circle Diameter | 114.300 |
| Brake Pilot Diameter | 71.900 |
| Flange Bolt Hole Quantity | 3 |
| Flange Diameter | 154.300 |
| Flange Offset | 48.600 |
| Flange Shape | MODIFIED |
| Hub Pilot Diameter | 92.000 |
| Spline Quantity | 32 |
| Wheel Pilot Diameter | 71.400 |
| Wheel Stud Quantity | 5 |
| Fits | Jeep and Dodge · 10 vehicles |
Fast, hassle-free installation. MOOG problem-solving innovations simplify the install process.
Reliable performance. Backed by superior materials and rigorous testing.
Wheel bearing and hub assembly. A complete hub assembly for driveline and axle service.
Cross-references Centric Parts 402.58002E, Mevotech Supreme H513270 and SKF BR930697 for the same application. See all 14.
MOOG 513270 Front Hub Assembly
The MOOG 513270 wheel bearing and hub assembly is built for front-end service on select Jeep Liberty and Dodge Nitro applications. It combines a precision hub design with an integrated ABS sensor to support stable wheel rotation and consistent signal output.
Key Features
- Front wheel bearing and hub assembly for driveline and axle service
- Integrated anti-lock brake sensor included
- 32-spline hub design
- 5-wheel-stud, 3-bolt flange configuration
- Modified flange shape with 114.300 mm bolt circle diameter
- Hub pilot diameter: 92.000 mm
- Wheel pilot diameter: 71.400 mm
- Brake pilot diameter: 71.900 mm
- Flange diameter: 154.300 mm and flange offset: 48.600 mm
Detailed Description
MOOG 513270 is a front wheel bearing and hub assembly engineered for direct replacement service on 2008-2012 Jeep Liberty and 2007-2011 Dodge Nitro front applications. MOOG uses durable materials and testing procedures to support dependable operation, while the hub design is focused on straightforward installation and proper fitment. This part cross-references Timken HA590245 and SKF BR930697 for the same application.
For buyers searching for a front wheel hub assembly for Jeep Liberty or Dodge Nitro, this MOOG unit provides the key dimensions needed for accurate replacement work, including the hub pilot, wheel pilot, brake pilot, and bolt circle specifications. The integrated ABS sensor helps maintain the signal path required by the vehicle’s anti-lock brake system.
What It Helps Address
- Wheel bearing noise from a worn front hub assembly
- ABS warning light concerns related to hub sensor failure
- Excessive wheel play or looseness at the front axle
- Uneven hub rotation caused by bearing wear
- Fitment issues when replacing a damaged Jeep Liberty or Dodge Nitro front hub
Installation Notes and Tips
Confirm front-position fitment before ordering. Fits 2008-2012 Jeep Liberty, front. Fits 2007-2011 Dodge Nitro, front. Verify spline count, bolt circle diameter, and sensor connection against the original part before installation. Clean the mounting surface and inspect related brake and axle components during hub replacement to help ensure proper seating and signal performance.
Quality Assurance
MOOG hub assemblies are backed by material selection and testing practices aimed at consistent service performance. The 513270 is built to meet the dimensional and functional requirements of the listed front applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Jeep | Liberty | Front | — |
| 2011 | Dodge | Nitro | Front | — |
| 2011 | Jeep | Liberty | Front | — |
| 2010 | Dodge | Nitro | Front | — |
| 2010 | Jeep | Liberty | Front | — |
| 2009 | Dodge | Nitro | Front | — |
| 2009 | Jeep | Liberty | Front | — |
| 2008 | Dodge | Nitro | Front | — |
| 2008 | Jeep | Liberty | Front | — |
| 2007 | Dodge | Nitro | Front | — |
