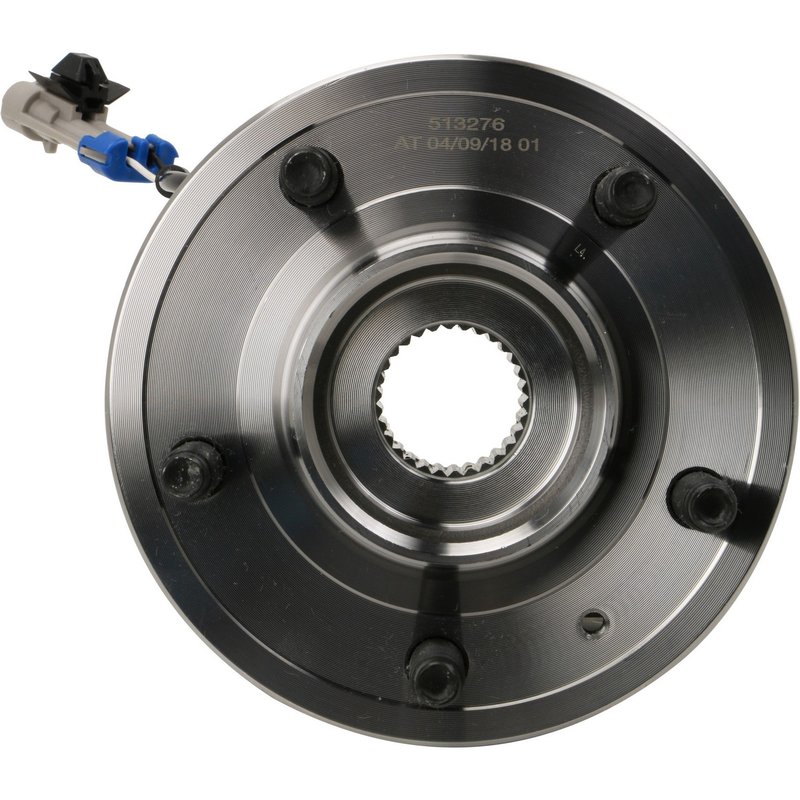

Moog 513276 Wheel Bearing and Hub Assembly - Front

Moog 513276 Wheel Bearing and Hub Assembly Overview

The Moog 513276 wheel bearing and hub assembly is engineered for reliable performance in select Chevrolet, Pontiac, Saturn, and Suzuki vehicles. Designed to meet OEM specifications, this assembly ensures proper fit and function for models like the Chevrolet Equinox, Pontiac Torrent, Saturn Vue, Suzuki XL-7, and Captiva Sport.

• 30 spline quantity for secure axle engagement
• 5 wheel studs for stable wheel mounting
• 3 flange bolt holes with a modified flange shape
• Includes anti-lock brake sensor for ABS compatibility
• Precise pilot diameters: wheel pilot 70.100 mm, brake pilot 70.600 mm, hub pilot 91.300 mm
• Flange diameter of 151.000 mm with a 42.100 mm flange offset
• Bolt circle diameter of 115.000 mm (4.500 inches)

Technical Details and Specifications

The Moog 513276 hub assembly features a 30-spline axle interface, ensuring a secure connection to the drivetrain. Its 5 wheel studs and 3 flange bolt holes with a modified flange shape provide a stable mounting platform for the wheel. The assembly includes an integrated anti-lock brake sensor, maintaining ABS functionality without additional components. Key dimensions such as the wheel pilot diameter (70.100 mm), brake pilot diameter (70.600 mm), and hub pilot diameter (91.300 mm) are designed to match factory specifications for a precise fit. The flange diameter measures 151.000 mm with a flange offset of 42.100 mm, supporting proper wheel alignment and clearance. The bolt circle diameter is 115.000 mm (4.500 inches), compatible with the specified vehicle models.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following makes and models:

• Chevrolet Equinox
• Pontiac Torrent
• Saturn Vue
• Suzuki XL-7
• Chevrolet Captiva Sport

Use the Moog 513276 assembly to address issues related to wheel bearing wear and hub damage in these vehicles.

Common Issues Addressed by Moog 513276

• Wheel bearing noise or roughness during rotation
• Excessive wheel play or looseness
• ABS sensor malfunction or warning lights
• Vibration or wobbling at the wheel
• Uneven tire wear due to hub misalignment

Installation Notes and Tips

Proper installation of the Moog 513276 wheel bearing and hub assembly requires attention to torque specifications and alignment. Ensure the flange bolt holes and wheel studs are clean and free of debris before mounting. The included anti-lock brake sensor should be connected securely to maintain ABS functionality. It is recommended to inspect related suspension and brake components during installation to ensure overall system integrity.

Quality Assurance and Warranty

Moog manufactures the 513276 wheel bearing and hub assembly to meet or exceed OEM standards. The product undergoes rigorous testing to ensure durability and performance. Moog typically offers a limited warranty on their wheel bearing and hub assemblies; please refer to Moog's official warranty documentation for specific terms and coverage details.
