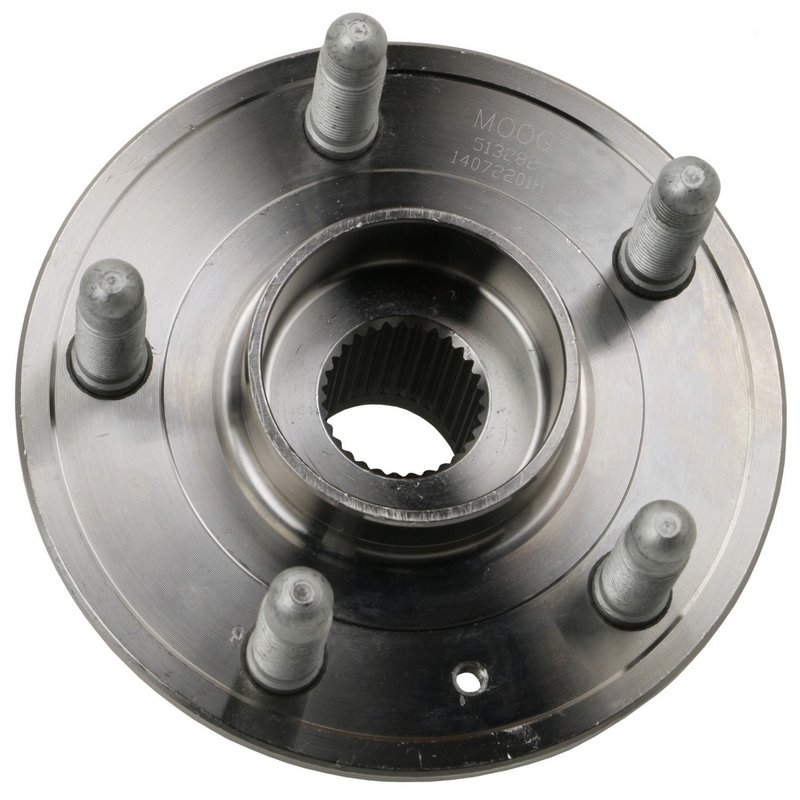

Moog 513282 Wheel Bearing and Hub Assembly - Front or Rear

Moog 513282 Wheel Bearing and Hub Assembly Overview

The Moog 513282 wheel bearing and hub assembly is engineered for reliable performance in select Cadillac and Chevrolet vehicles. Designed to meet OEM specifications, this assembly ensures proper fit and function for models such as the Camaro, CTS, Impala, and XTS.

• 30 spline quantity for secure axle engagement
• 5 wheel studs for stable wheel mounting
• 3 flange bolt holes with a modified flange shape
• Wheel pilot diameter of 66.9 mm and brake pilot diameter of 67.4 mm
• Hub pilot diameter measuring 91.2 mm for precise alignment
• Flange diameter of 157.1 mm with a 42 mm flange offset
• Bolt circle diameter of 120 mm (4.729 inches)
• Includes anti-lock brake sensor for ABS compatibility

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 513282) is designed with a 30-spline axle interface, ensuring a secure connection to the drivetrain. The assembly features five wheel studs and three flange bolt holes arranged on a 120 mm bolt circle diameter, providing a stable and precise mounting surface. The modified flange shape and 42 mm flange offset accommodate specific vehicle suspension and brake configurations. The wheel pilot diameter of 66.9 mm and brake pilot diameter of 67.4 mm support proper wheel and brake rotor centering, while the 91.2 mm hub pilot diameter ensures accurate hub alignment. Additionally, the included anti-lock brake sensor integrates seamlessly with the vehicle's ABS system, maintaining safety and performance.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following makes and models:

• Cadillac CTS and XTS
• Chevrolet Camaro and Impala

It is designed to replace worn or damaged wheel bearing and hub assemblies in these vehicles, restoring proper wheel rotation and ABS functionality.

Common Issues Addressed by Moog 513282

• Wheel bearing noise or roughness during driving
• Excessive wheel play or looseness
• ABS warning light activation due to sensor failure
• Uneven tire wear caused by hub misalignment
• Vibration or wobbling at higher speeds

Installation Notes and Tips

Installation of the Moog 513282 wheel bearing and hub assembly requires proper tools and adherence to vehicle-specific torque specifications. Ensure the mating surfaces are clean and free of debris before installation. The included anti-lock brake sensor should be connected carefully to avoid damage. It is recommended to inspect related suspension and brake components during installation for overall system integrity.

Quality Assurance and Warranty

Moog manufactures this wheel bearing and hub assembly to meet or exceed OEM standards, providing reliable performance and durability. The part number 513282 comes with Moog's limited warranty coverage, which protects against defects in materials and workmanship under normal use conditions.
