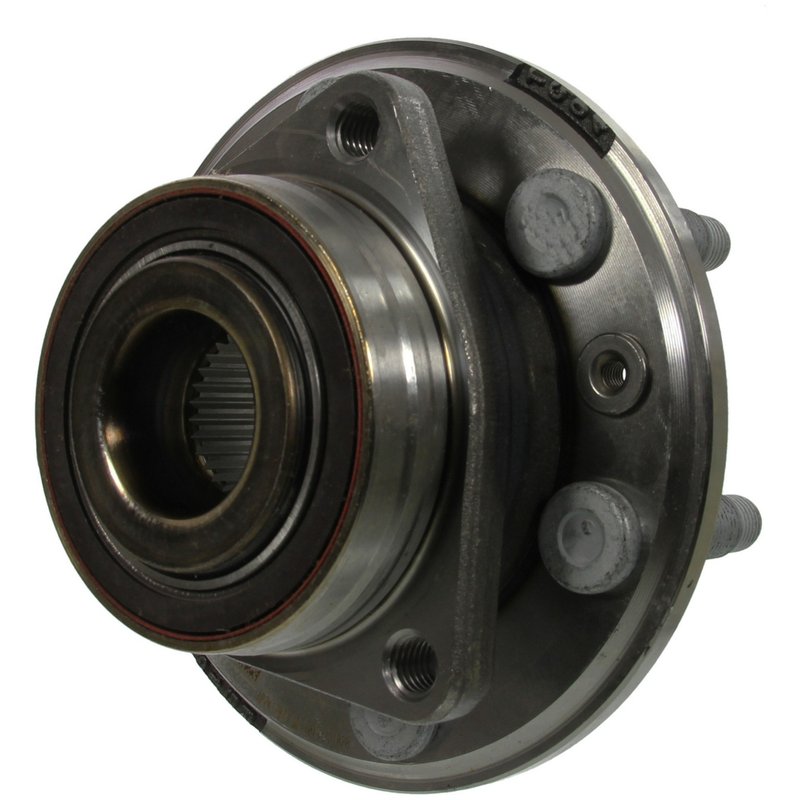

Moog 513289 Wheel Bearing and Hub Assembly - Front or Rear

Moog 513289 Wheel Bearing and Hub Assembly Overview

The Moog 513289 wheel bearing and hub assembly is engineered for reliable performance in Cadillac SRX and Saab 9-4X vehicles. Designed to meet OEM specifications, this assembly integrates key features to ensure proper fitment and durability for your driveline system.

• 30 spline quantity for secure axle engagement
• 6 wheel studs for stable wheel mounting
• 3 flange bolt holes with a 120 mm bolt circle diameter
• Wheel pilot diameter of 66.830 mm and brake pilot diameter of 67.330 mm
• Hub pilot diameter measuring 91.300 mm for precise alignment
• Flange diameter of 156.950 mm and flange offset of 42.060 mm
• Includes anti-lock brake sensor for ABS functionality

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 513289) is designed specifically for Cadillac SRX and Saab 9-4X models, ensuring compatibility with their driveline and axle systems. The 30 spline quantity provides a secure connection to the axle shaft, while the 6 wheel studs accommodate standard wheel mounting requirements. The flange bolt hole quantity of 3 and a bolt circle diameter of 120 mm align with factory specifications for proper installation.

The wheel pilot diameter of 66.830 mm and brake pilot diameter of 67.330 mm ensure the wheel and brake components are centered accurately, reducing vibration and improving overall vehicle stability. The hub pilot diameter of 91.300 mm supports precise hub alignment, while the flange diameter of 156.950 mm and flange offset of 42.060 mm maintain correct positioning relative to the suspension and brake system. Additionally, the included anti-lock brake sensor integrates seamlessly with the vehicle’s ABS system for enhanced safety.

Compatible Vehicles and Applications

• Cadillac SRX wheel bearing and hub replacement
• Saab 9-4X driveline hub assembly upgrade
• Replacement for worn or damaged wheel bearing and hub components
• Restores proper wheel alignment and ABS sensor functionality
• Addresses issues such as wheel noise, vibration, and ABS warning lights

Installation Notes and Tips

When installing the Moog 513289 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify that the flange bolt holes and wheel studs align correctly with the vehicle’s hub mounting points. Proper torque specifications should be followed for all fasteners to maintain safety and performance. The included anti-lock brake sensor requires careful connection to the vehicle’s ABS wiring harness to ensure accurate sensor readings.

Quality Assurance and Warranty

Moog manufactures the 513289 wheel bearing and hub assembly to meet or exceed OEM standards, providing reliable fit and function for Cadillac SRX and Saab 9-4X vehicles. This part is backed by Moog’s limited warranty, which covers defects in materials and workmanship under normal use. For specific warranty details, refer to Moog’s official documentation.
