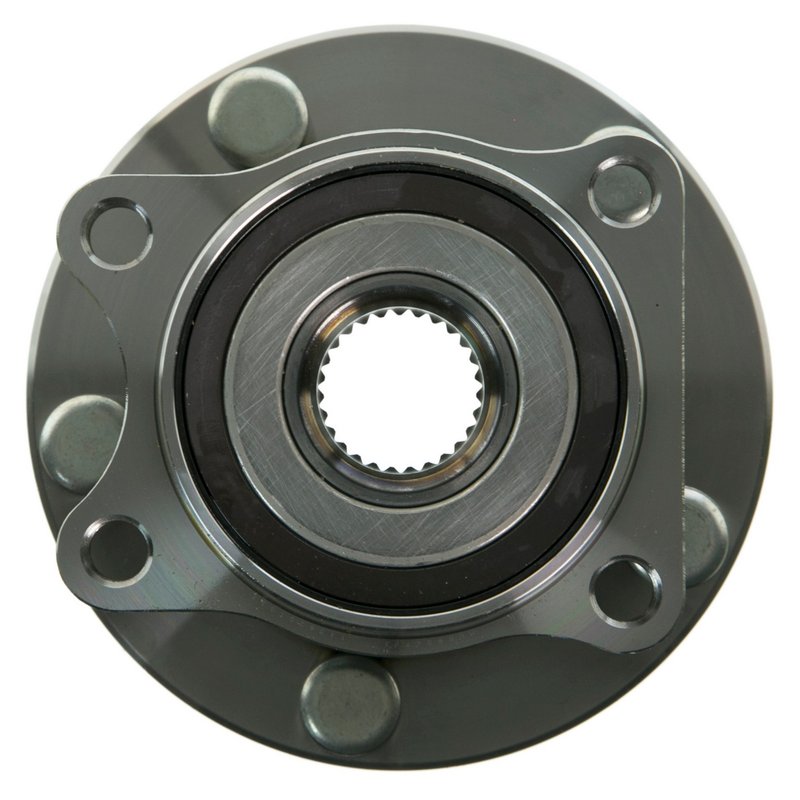

Moog 513302 Wheel Bearing and Hub Assembly - Front

Moog 513302 Wheel Bearing and Hub Assembly Overview

The Moog 513302 wheel bearing and hub assembly is engineered for reliable performance on select Subaru models. Designed to meet OEM specifications, this assembly ensures proper fit and function for vehicles like the Subaru Forester, Outback, and WRX.

• 27 spline quantity for secure axle engagement
• Includes anti-lock brake sensor for ABS functionality
• 5 wheel studs with a 114.5 mm bolt circle diameter
• Flange diameter of 137.9 mm and flange offset of 46.3 mm
• Wheel pilot diameter of 56.0 mm and brake pilot diameter of 57.9 mm
• Hub pilot diameter measures 83.9 mm for precise alignment
• 4 flange bolt holes for stable mounting

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 513302) is designed specifically for Subaru vehicles including the Ascent, B9 Tribeca, Forester, Impreza, Legacy, Outback, Tribeca, WRX, and WRX STI. The 27 spline quantity ensures a strong connection to the axle shaft, while the 5 wheel studs and 4 flange bolt holes provide secure attachment to the vehicle’s hub. The included anti-lock brake sensor supports the ABS system, maintaining safety and control during braking. Precise measurements such as the 56.0 mm wheel pilot diameter and 83.9 mm hub pilot diameter help maintain proper wheel alignment and reduce vibration.

Applications and Problem Solving

• Replaces worn or damaged wheel bearing assemblies on compatible Subaru models
• Restores proper wheel alignment and reduces noise or vibration
• Ensures ABS sensor functionality for safe braking performance
• Addresses wheel hub looseness or excessive play
• Prevents premature tire wear caused by faulty hub assemblies

Installation Notes and Tips

Installation of the Moog 513302 wheel bearing and hub assembly requires proper tools and mechanical knowledge. Ensure the vehicle is securely lifted and the wheel is removed before beginning. Clean the mounting surface thoroughly to avoid contamination. Torque all flange bolts and wheel studs to manufacturer specifications. Verify ABS sensor connections are secure and functioning after installation. It is recommended to inspect related suspension components during replacement.

Quality Assurance and Warranty

Moog manufactures this wheel bearing and hub assembly to meet or exceed OEM standards, providing reliable durability and performance. The part number 513302 is backed by Moog’s quality control processes. Warranty coverage details should be confirmed with the point of purchase or Moog directly to ensure proper protection.
