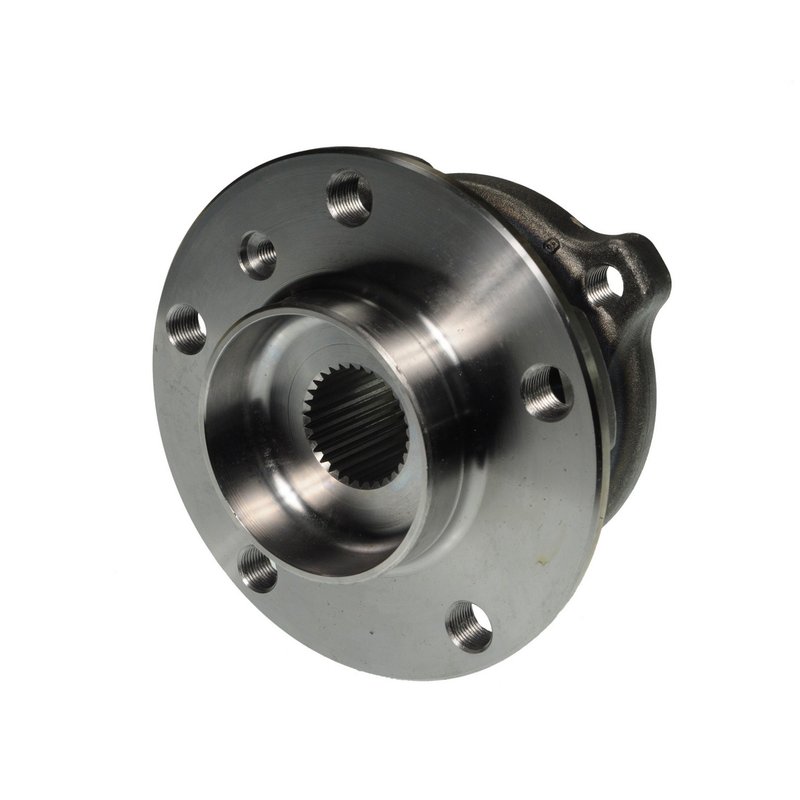

Moog 513305 Wheel Bearing and Hub Assembly - Front

Overview of Moog 513305 Wheel Bearing and Hub Assembly

The Moog 513305 wheel bearing and hub assembly is engineered for precise fitment on BMW X5 and X6 models. Designed to meet OEM specifications, this component ensures reliable performance and durability for your vehicle's driveline system.

• 30 spline quantity for secure axle engagement
• Includes anti-lock brake sensor for ABS functionality
• 5 wheel studs with a 74 mm wheel pilot diameter
• Trapazoid flange shape with 4 flange bolt holes
• Flange diameter of 144 mm and bolt circle diameter of 120 mm
• Brake pilot diameter of 75 mm and hub pilot diameter of 98 mm
• Flange offset of 60 mm for proper alignment

Technical Details and Specifications

The Moog 513305 wheel bearing and hub assembly features a 30 spline quantity, ensuring a secure connection to the axle shaft. The flange is designed in a trapazoid shape with four bolt holes, providing a stable mounting surface. This assembly includes five wheel studs and a wheel pilot diameter of 74 mm, which aligns precisely with the wheel hub. The brake pilot diameter measures 75 mm, while the hub pilot diameter is 98 mm, both critical for proper brake and hub alignment. Additionally, the flange offset is 60 mm, and the flange diameter is 144 mm, matching the bolt circle diameter of 120 mm (4.685 inches) to maintain correct wheel positioning. An integrated anti-lock brake sensor supports ABS system functionality, enhancing vehicle safety.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with BMW X5 and X6 models, providing a direct replacement for worn or damaged components. It is designed to restore proper wheel rotation and support, addressing issues related to driveline and axle performance.

• Eliminates wheel bearing noise and vibration
• Resolves ABS sensor faults and warning lights
• Corrects wheel hub looseness or play
• Improves wheel alignment and stability
• Prevents premature tire wear caused by hub issues

Installation Notes and Tips

When installing the Moog 513305 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Remove the existing hub assembly carefully to avoid damage to surrounding components. Verify the spline count and flange bolt hole quantity match the replacement part. Proper torque specifications should be followed for flange bolts and wheel studs. Confirm the anti-lock brake sensor is connected and functioning correctly after installation to maintain ABS system integrity.

Quality Assurance and Warranty

Moog manufactures the 513305 wheel bearing and hub assembly to meet or exceed OEM standards, ensuring reliable performance and durability. The inclusion of an anti-lock brake sensor reflects attention to safety and system compatibility. This part is backed by Moog's quality assurance processes, providing confidence in its fitment and function for BMW X5 and X6 vehicles.
