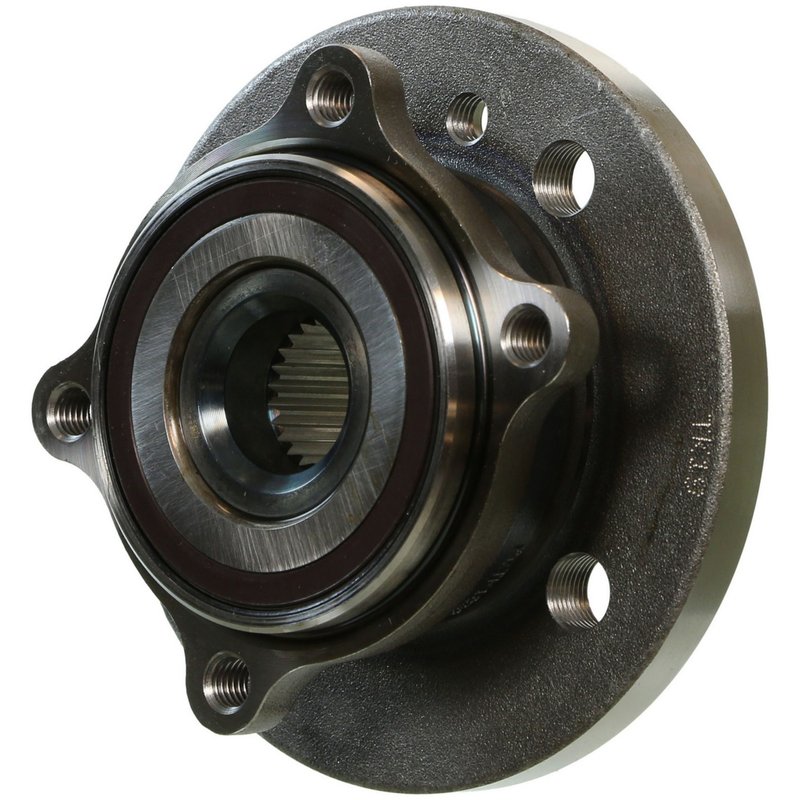

Moog 513309 Wheel Bearing and Hub Assembly - Front

Overview of Moog 513309 Wheel Bearing and Hub Assembly

The Moog 513309 wheel bearing and hub assembly is engineered for precise fitment on Mini Cooper models. Designed to maintain optimal wheel alignment and support, this component integrates essential features including an anti-lock brake sensor for enhanced safety.

• Compatible with Mini Cooper vehicles
• Includes anti-lock brake sensor for ABS functionality
• 26 spline quantity for secure drivetrain connection
• 4 flange bolt holes and 4 wheel studs for reliable mounting
• Wheel pilot diameter of 56.000 mm and brake pilot diameter of 64.000 mm
• Hub pilot diameter measures 81.000 mm ensuring proper hub fit
• Flange offset of 44.000 mm and flange diameter of 137.500 mm
• Bolt circle diameter of 100.000 mm (3.937 inches) for precise bolt pattern alignment

Detailed Product Description

The Moog 513309 wheel bearing and hub assembly is a critical driveline component designed specifically for Mini Cooper vehicles. This assembly features a 26-spline interface that ensures a secure connection between the axle and hub. The 4-flange bolt holes and 4 wheel studs provide a stable mounting platform, while the wheel pilot diameter of 56 mm and brake pilot diameter of 64 mm facilitate proper alignment of the wheel and brake components. The hub pilot diameter of 81 mm further supports accurate hub positioning, reducing vibration and wear.

Equipped with an integrated anti-lock brake sensor, this assembly supports the vehicle’s ABS system, contributing to improved braking performance and safety. The flange offset of 44 mm and flange diameter of 137.5 mm are engineered to match the Mini Cooper’s specifications, ensuring compatibility and reliable operation. The bolt circle diameter of 100 mm (3.937 inches) corresponds to the wheel bolt pattern, allowing for straightforward installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Mini Cooper models
• Resolves wheel vibration and noise caused by bearing wear
• Addresses ABS sensor faults related to hub assembly issues
• Corrects wheel alignment problems due to hub pilot diameter wear
• Eliminates looseness or play in the wheel hub area

Installation Notes and Tips

• Ensure vehicle is securely lifted and supported before installation
• Verify the part number 513309 matches the vehicle’s OEM specifications
• Inspect axle splines and mounting surfaces for damage prior to assembly
• Torque flange bolts and wheel studs to manufacturer specifications
• Confirm ABS sensor connection is properly seated and functioning

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for durability and performance. The 513309 part undergoes rigorous quality control testing to ensure reliability under normal operating conditions. This product includes a limited warranty covering defects in materials and workmanship, providing confidence in its long-term service life when installed according to guidelines.
