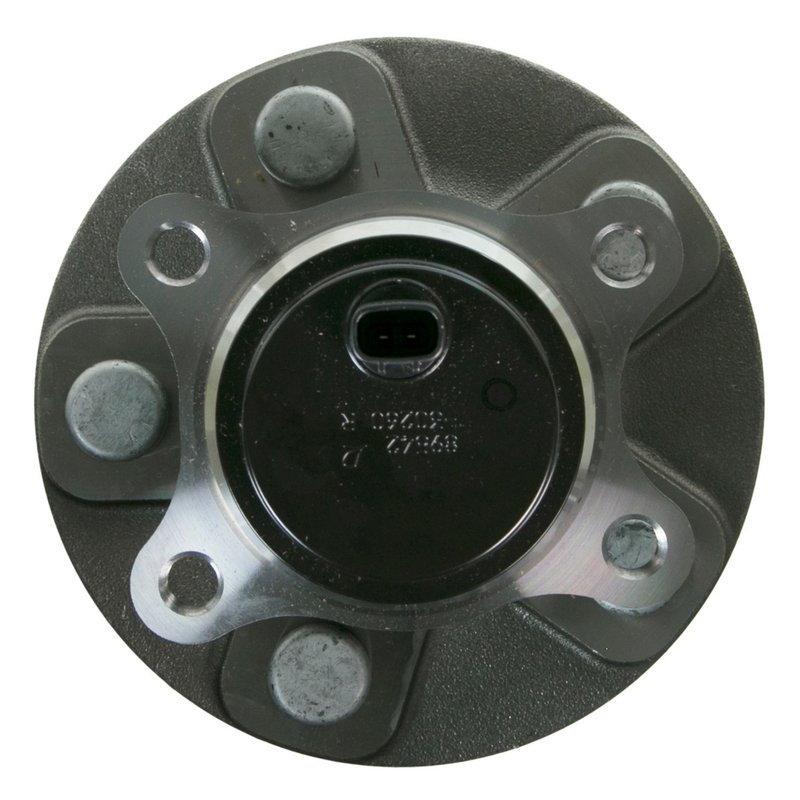

Moog 513314 Wheel Bearing and Hub Assembly - Front Right
| Brand | Moog 513314 |
|---|---|
| Position | Front Right |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 120.000 |
| Brake Pilot Diameter | 61.900 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 157.900 |
| Flange Offset | 42.000 |
| Hub Pilot Diameter | 70.000 |
| Wheel Pilot Diameter | 59.900 |
| Wheel Stud Quantity | 5 |
| Fits | Lexus · 11 vehicles |
Simplified installation. Design enhancements help make replacement easier.
Wheel bearing and hub assembly. A complete hub solution for driveline and axle service.
Problem Solver heritage. MOOG is known for continual design improvements.
Cross-references MOOG Hub Assemblies 513314, Raybestos Brakes 713314 and SKF BR930770 for the same application. See all 9.
Moog 513314 Front Right Wheel Hub
Moog 513314 is a front right wheel bearing and hub assembly for the Lexus LS460. It is built with design updates aimed at extending service life and making replacement easier, while supporting the ABS-equipped front corner of the vehicle.
- Fits 2007-2017 Lexus LS460, front right
- Wheel bearing and hub assembly for driveline and axle service
- Anti-lock brake sensor included
- Flange bolt hole quantity: 4
- Wheel stud quantity: 5
- Bolt circle diameter: 120.000 mm
- Flange diameter: 157.900 mm
- Flange offset: 42.000 mm
- Wheel pilot diameter: 59.900 mm
- Brake pilot diameter: 61.900 mm
- Hub pilot diameter: 70.000 mm
Detailed Product Overview
This Moog wheel bearing and hub assembly is engineered for the front right position on the Lexus LS460 and is identified by part number 513314. It is a direct-fit replacement for 2007-2017 Lexus LS460 front right applications and includes the ABS sensor needed for vehicles equipped with anti-lock braking. The hub dimensions, pilot diameters, bolt circle, and flange measurements are specified to support accurate fitment and proper wheel mounting.
This part cross-references Timken HA590265 and SKF BR930770 for the same application. It also interchanges with OE reference 43550-50040.
Common Problems This Part Can Address
- Wheel bearing noise from the front right hub area
- Excessive wheel play or looseness at the hub
- ABS warning light caused by a failed hub sensor assembly
- Uneven wheel mounting or hub fitment issues
- Vibration or roughness traced to a worn bearing assembly
Installation Notes and Tips
Verify the vehicle is a 2007-2017 Lexus LS460 and confirm the front right position before installation. Compare the hub pilot, wheel pilot, brake pilot, bolt circle, flange diameter, and offset against the original part to ensure proper alignment. Because this assembly includes an ABS sensor, inspect the connector and wiring path during replacement and clear any stored fault codes after installation if required.
Quality Assurance
Moog is known for ongoing chassis and steering product improvements that focus on longer service life and easier replacement. Part number 513314 reflects that approach with a hub assembly built for the Lexus LS460 front right application.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Lexus | LS460 | RWD | Front Right | — |
| 2016 | Lexus | LS460 | RWD | Front Right | — |
| 2015 | Lexus | LS460 | RWD | Front Right | — |
| 2014 | Lexus | LS460 | RWD | Front Right | — |
| 2013 | Lexus | LS460 | RWD | Front Right | — |
| 2012 | Lexus | LS460 | RWD | Front Right | — |
| 2011 | Lexus | LS460 | RWD | Front Right | — |
| 2010 | Lexus | LS460 | RWD | Front Right | — |
| 2009 | Lexus | LS460 | RWD | Front Right | — |
| 2008 | Lexus | LS460 | — | Front Right | — |
| 2007 | Lexus | LS460 | — | Front Right | — |
