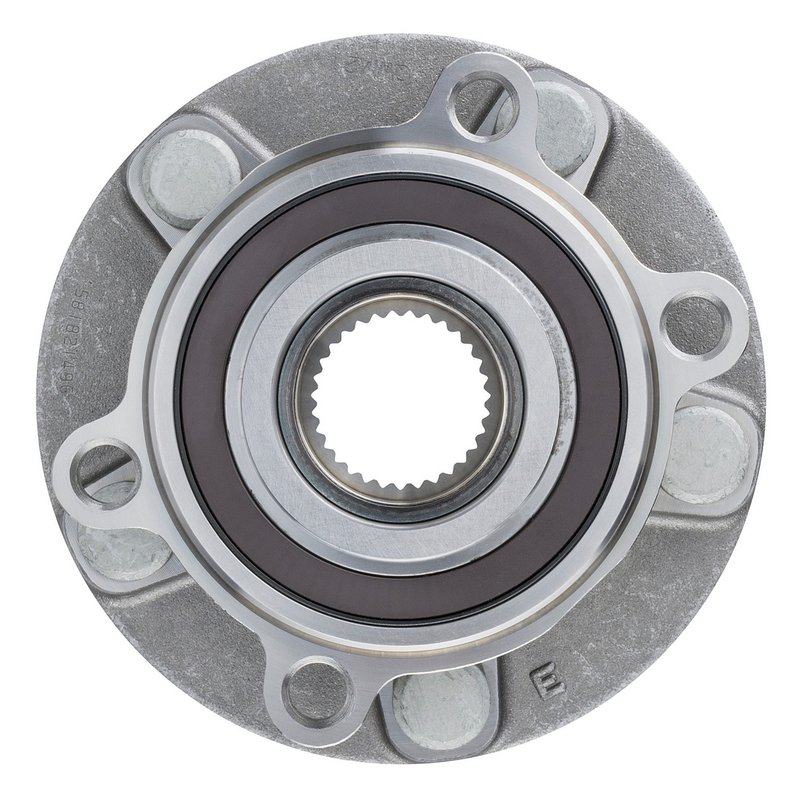

Moog 513347 Wheel Bearing and Hub Assembly - Front

Overview of Moog 513347 Wheel Bearing and Hub Assembly

The Moog 513347 wheel bearing and hub assembly is engineered for reliable performance in Mazda 6 and CX-5 models. Designed to meet precise specifications, this component ensures proper fitment and functionality for your vehicle's driveline system.

• 31 spline quantity for secure axle engagement
• Includes anti-lock brake sensor for ABS compatibility
• Five wheel studs and four flange bolt holes for stable mounting
• Wheel pilot diameter of 66.9 mm and brake pilot diameter of 67.9 mm
• Hub pilot diameter of 90.7 mm with a flange diameter of 138.6 mm
• Flange offset of 42.7 mm and bolt circle diameter of 114.3 mm

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 513347) is specifically designed for Mazda 6 and CX-5 vehicles, ensuring compatibility with their driveline and axle systems. The assembly features a 31-spline axle interface, which provides a secure connection to the axle shaft. It includes an integrated anti-lock brake sensor, essential for maintaining ABS functionality and vehicle safety. The flange is designed with four bolt holes and five wheel studs, offering a robust mounting solution. Precise pilot diameters for the wheel (66.9 mm), brake (67.9 mm), and hub (90.7 mm) ensure proper alignment and fitment, reducing vibration and wear. The flange offset of 42.7 mm and a bolt circle diameter of 114.3 mm are engineered to match factory specifications for these Mazda models.

Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Mazda 6 and CX-5
• Addresses wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor function with included anti-lock brake sensor
• Corrects wheel alignment issues related to hub damage
• Prevents premature tire wear due to faulty hub assembly

Installation Notes and Tips

When installing the Moog 513347 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify that the spline count matches the axle shaft to avoid fitment issues. Handle the anti-lock brake sensor wiring carefully to prevent damage. Torque all flange bolts and wheel studs to manufacturer specifications to maintain safety and performance. It is recommended to inspect related components such as brake rotors and calipers during installation.

Quality Assurance and Warranty

Moog parts are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 513347 wheel bearing and hub assembly undergoes rigorous testing to ensure proper fit and function. This part includes a limited warranty covering defects in materials and workmanship, supporting long-term vehicle safety and drivability.
