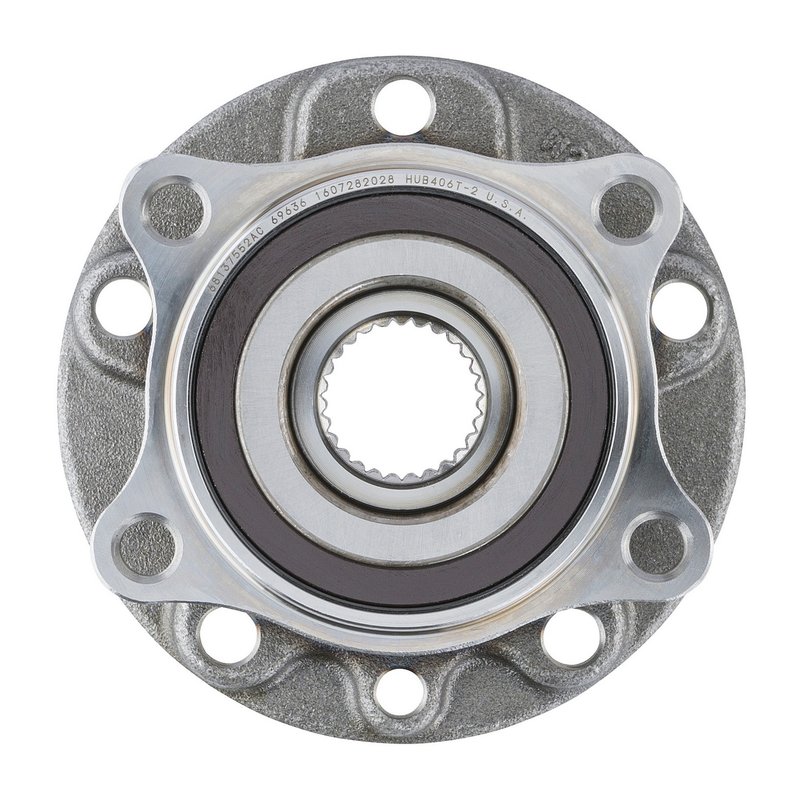

Moog 513348 Wheel Bearing and Hub Assembly - Front

Overview of Moog 513348 Wheel Bearing and Hub Assembly

The Moog 513348 wheel bearing and hub assembly is engineered for reliable performance in Chrysler and Dodge vehicles, specifically designed for the 200 Dart model. This component integrates essential features such as an anti-lock brake sensor and precise flange dimensions to ensure proper fit and function.

• 27 spline quantity for secure axle engagement
• 4 flange bolt holes with trapezoid flange shape
• 5 wheel studs for stable wheel mounting
• Wheel pilot diameter of 65.000 mm and brake pilot diameter of 69.800 mm
• Hub pilot diameter of 83.800 mm for accurate alignment
• Flange offset of 41.600 mm and flange diameter of 129.900 mm
• Bolt circle diameter of 110.100 mm (4.328 inches)
• Includes anti-lock brake sensor for ABS functionality

Detailed Product Description

The Moog 513348 wheel bearing and hub assembly is designed to meet the specific requirements of Chrysler and Dodge 200 Dart vehicles. The 27 spline quantity ensures a secure connection to the axle shaft, while the 4 trapezoid-shaped flange bolt holes provide a robust mounting interface. The assembly features 5 wheel studs, supporting proper wheel installation and torque distribution. Precise pilot diameters—65.000 mm for the wheel, 69.800 mm for the brake, and 83.800 mm for the hub—guarantee accurate centering and alignment, reducing vibration and wear. The flange offset of 41.600 mm and flange diameter of 129.900 mm are engineered to maintain correct wheel positioning relative to the suspension and brake components. Additionally, the included anti-lock brake sensor supports the vehicle’s ABS system, contributing to safe braking performance.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings in Chrysler and Dodge 200 Dart models
• Resolves wheel vibration or noise caused by bearing wear
• Addresses ABS sensor faults related to hub assembly issues
• Corrects wheel alignment problems due to hub pilot diameter wear
• Prevents premature tire wear from improper flange offset or bolt circle diameter

Installation Notes and Tips

• Ensure compatibility with Chrysler and Dodge 200 Dart vehicles before installation
• Verify spline count and flange bolt hole quantity match the vehicle specifications
• Use proper torque specifications on wheel studs and flange bolts to avoid damage
• Handle the anti-lock brake sensor carefully to prevent electrical faults
• Inspect surrounding suspension and brake components during installation for wear

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet OEM standards for fit, form, and function. The 513348 part number undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, Moog typically offers coverage against defects in materials and workmanship, providing confidence in the product’s longevity and safety.
