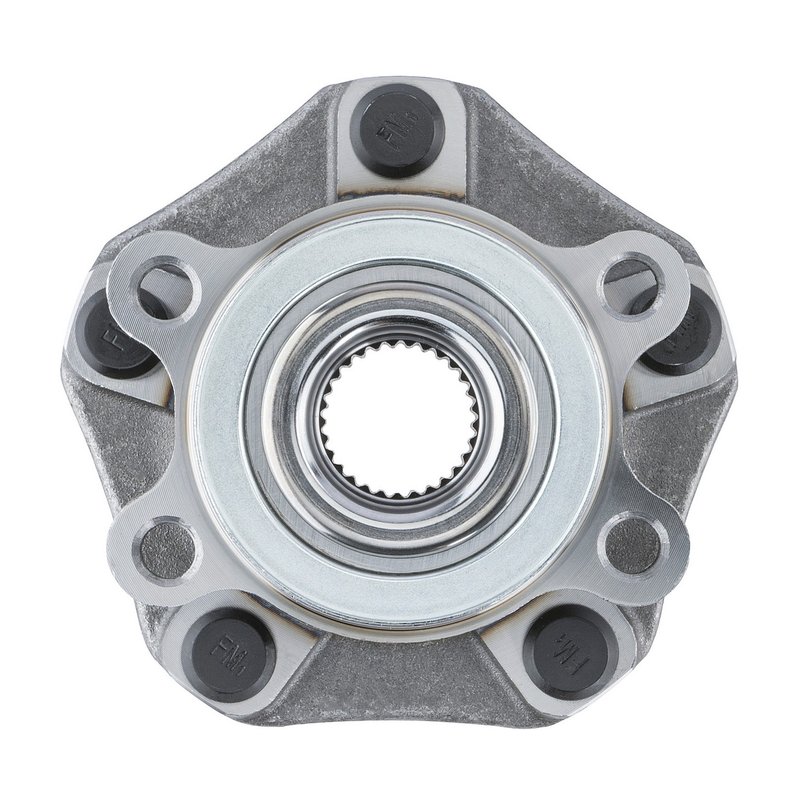

Moog 513364 Wheel Bearing and Hub Assembly - Front

Moog 513364 Wheel Bearing and Hub Assembly Overview

The Moog 513364 wheel bearing and hub assembly is engineered for reliable performance in select Chevrolet and Nissan vehicles. Designed to meet precise specifications, this assembly supports smooth wheel rotation and integrates an anti-lock brake sensor for enhanced safety.

• Compatible with Chevrolet City Express and Nissan LEAF, NV200, Sentra models
• Includes 29 splines for secure axle engagement
• Equipped with 5 wheel studs and 4 flange bolt holes
• Features a rectangular flange shape with a 136 mm flange diameter
• Anti-lock brake sensor included for ABS functionality
• Hub pilot diameter of 80 mm and wheel pilot diameter of 65.9 mm
• Brake pilot diameter measures 68 mm for proper brake component alignment
• Flange offset of 40.6 mm and bolt circle diameter of 114.3 mm

Technical Details and Specifications

The Moog 513364 wheel bearing and hub assembly is designed with a 29-spline axle interface to ensure a secure fit and reliable torque transfer. The assembly features a rectangular flange shape with 4 bolt holes and 5 wheel studs, providing a stable mounting surface for the wheel. The flange diameter measures 136 mm, while the bolt circle diameter is 114.3 mm, matching factory specifications for the Chevrolet City Express and Nissan LEAF, NV200, and Sentra models. The hub pilot diameter of 80 mm and wheel pilot diameter of 65.9 mm ensure precise centering of the hub and wheel, reducing vibration and improving ride quality. Additionally, the brake pilot diameter of 68 mm supports proper brake rotor alignment. This assembly includes an integrated anti-lock brake sensor, maintaining ABS system functionality and vehicle safety.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following vehicles:

• Chevrolet City Express
• Nissan LEAF
• Nissan NV200
• Nissan Sentra

It is designed to replace worn or damaged wheel bearing and hub assemblies, restoring proper wheel rotation and ABS sensor operation.

Common Issues Addressed by This Assembly

• Wheel bearing noise or roughness during rotation
• Vibration or wobbling of the wheel at speed
• ABS warning light due to faulty sensor or hub
• Uneven tire wear caused by hub misalignment
• Loose or damaged wheel studs or flange mounting points

Installation Notes and Tips

• Ensure vehicle compatibility with Chevrolet City Express or Nissan LEAF, NV200, Sentra before installation
• Use proper torque specifications for flange bolts and wheel studs to avoid damage
• Verify ABS sensor connection is secure and functioning after installation
• Inspect related suspension and brake components during replacement
• Professional installation is recommended to maintain safety and performance standards

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards. The 513364 part number undergoes rigorous testing to ensure durability and reliable performance. This product includes a limited warranty against defects in materials and workmanship, providing confidence in its long-term use on Chevrolet and Nissan vehicles.
