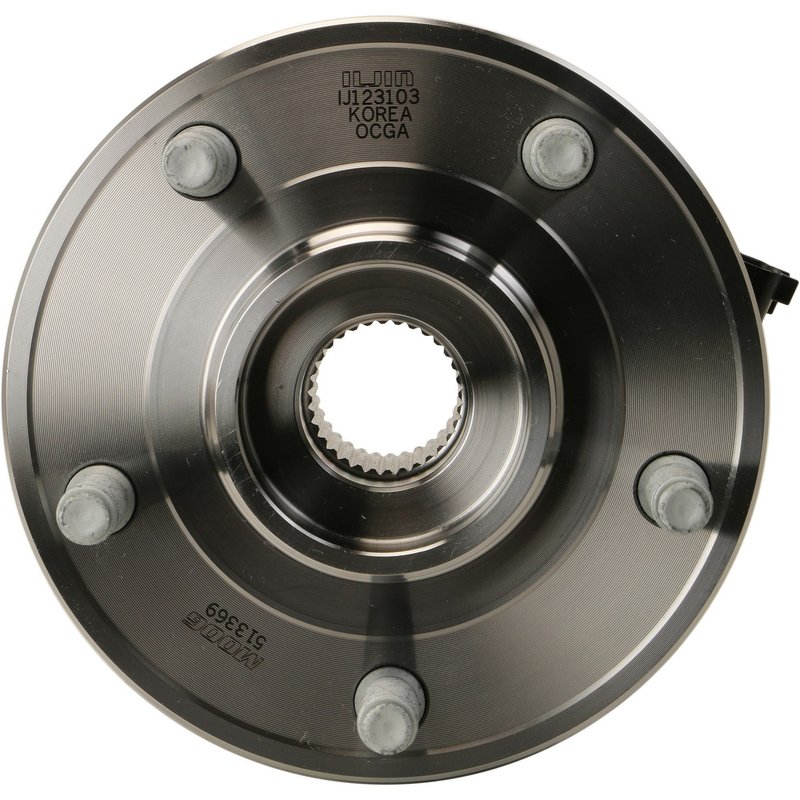

Moog 513369 Wheel Bearing and Hub Assembly - Front

Moog 513369 Wheel Bearing and Hub Assembly Overview

The Moog 513369 wheel bearing and hub assembly is engineered for reliable performance on Jeep Wrangler and Wrangler JK models. Designed to meet precise specifications, this assembly ensures proper fitment and durability for your vehicle's driveline system.

• Compatible with Jeep Wrangler and Wrangler JK
• Includes anti-lock brake sensor for ABS functionality
• 32 spline quantity for secure axle engagement
• Five wheel studs with 3 flange bolt holes
• Flange diameter of 161.5 mm and bolt circle diameter of 127 mm
• Wheel pilot diameter of 71.43 mm and brake pilot diameter of 71.93 mm
• Hub pilot diameter measures 100.15 mm with a flange offset of 48.6 mm

Technical Details and Specifications

This Moog wheel bearing and hub assembly (part number 513369) is designed specifically for Jeep Wrangler and Wrangler JK vehicles, ensuring a precise fit and optimal performance. The assembly features a 32 spline count, which matches the axle shaft for secure torque transfer. It includes five wheel studs and three flange bolt holes, providing a stable mounting surface for the wheel. The flange diameter is 161.5 mm with a bolt circle diameter of 127 mm, aligning with factory specifications. The wheel pilot diameter of 71.43 mm and brake pilot diameter of 71.93 mm help center the wheel and brake components accurately. Additionally, the hub pilot diameter of 100.15 mm and flange offset of 48.6 mm maintain proper alignment and clearance within the wheel assembly. An integrated anti-lock brake sensor is included to support ABS system functionality, ensuring safety and compliance with vehicle systems.

Applications and Problem Solving

• Replaces worn or damaged wheel bearing and hub assemblies on Jeep Wrangler and Wrangler JK
• Resolves wheel vibration or noise caused by bearing wear
• Restores proper ABS sensor operation with included anti-lock brake sensor
• Corrects wheel alignment issues related to hub pilot or flange damage
• Addresses loose or damaged wheel studs and flange bolt holes

Installation Notes and Tips

Installation of the Moog 513369 wheel bearing and hub assembly requires proper tools and mechanical knowledge. Ensure the vehicle is securely lifted and supported before beginning. Clean the mounting surface thoroughly to remove rust and debris. Verify spline count and pilot diameters match the axle and wheel hub. Torque flange bolts and wheel studs to manufacturer specifications. Confirm ABS sensor wiring is properly connected and free of damage. It is recommended to inspect related suspension and brake components during installation for overall system integrity.

Quality Assurance and Warranty

Moog manufactures the 513369 wheel bearing and hub assembly to meet or exceed OEM standards for fit, form, and function. The part includes an integrated anti-lock brake sensor to maintain vehicle safety systems. Moog products typically come with a limited warranty covering defects in materials and workmanship. For specific warranty details, refer to Moog’s official documentation or contact authorized distributors.
