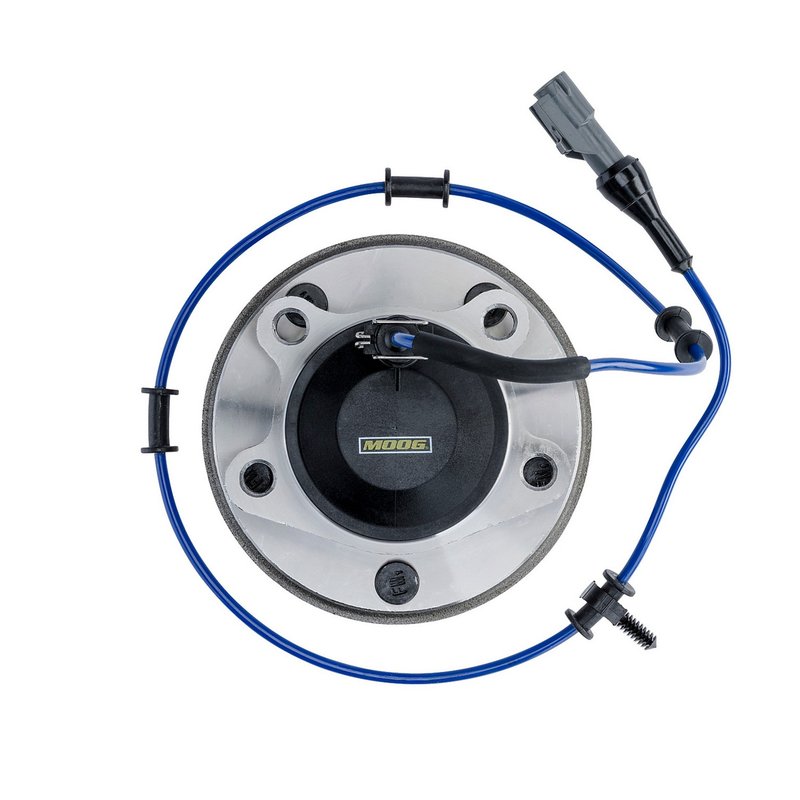

Moog 513371 Wheel Bearing and Hub Assembly - Front

Overview of Moog 513371 Wheel Bearing and Hub Assembly

The Moog 513371 wheel bearing and hub assembly is engineered for precise fitment on select Jaguar models, including the S-Type, XF, XFR, XJ, XJR, XJR575, XK, XKR, and XKR-S. Designed to maintain optimal wheel alignment and support, this assembly integrates an anti-lock brake sensor for enhanced safety and performance.

• Flange bolt hole quantity: 4 for secure mounting
• Wheel pilot diameter: 63.2 mm ensuring accurate wheel centering
• Brake pilot diameter: 71.0 mm for proper brake component alignment
• Wheel stud quantity: 5 for reliable wheel attachment
• Hub pilot diameter: 76.0 mm for precise hub fitment
• Anti-lock brake sensor included for ABS functionality
• Flange offset: 44.5 mm to maintain correct wheel positioning
• Flange diameter: 138.9 mm matching OEM specifications
• Bolt circle diameter: 108.0 mm for compatibility with Jaguar wheel patterns

Technical Details and Compatibility

The Moog 513371 wheel bearing and hub assembly is specifically designed to meet the exacting standards required by Jaguar vehicles such as the S-Type, XF, XFR, XJ, XJR, XJR575, XK, XKR, and XKR-S. The assembly features a 5-stud wheel configuration and a 4-hole flange bolt pattern, ensuring a secure and precise fit. The included anti-lock brake sensor integrates seamlessly with the vehicle’s ABS system, maintaining safety and control. Key dimensions like the 63.2 mm wheel pilot diameter and 76.0 mm hub pilot diameter ensure proper centering and alignment, critical for smooth wheel rotation and brake performance.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings causing noise or vibration
• Restores proper wheel alignment and reduces uneven tire wear
• Resolves ABS sensor faults related to hub assembly issues
• Eliminates wheel play and improves steering stability
• Addresses brake rotor misalignment due to hub pilot wear

Installation Notes and Tips

When installing the Moog 513371 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify that the flange bolt holes and wheel studs align correctly with the Jaguar model’s specifications. It is recommended to inspect the axle shaft and surrounding components for wear or damage before installation. Proper torque specifications should be followed for all mounting bolts to maintain safety and performance. The included anti-lock brake sensor should be connected carefully to avoid damage and ensure ABS functionality.

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards, providing reliable performance and durability. The 513371 part number undergoes rigorous quality control to ensure precise fitment and long service life. This product includes a limited warranty covering defects in materials and workmanship, supporting confidence in your purchase for Jaguar S-Type, XF, XFR, XJ, XJR, XJR575, XK, XKR, and XKR-S vehicles.
