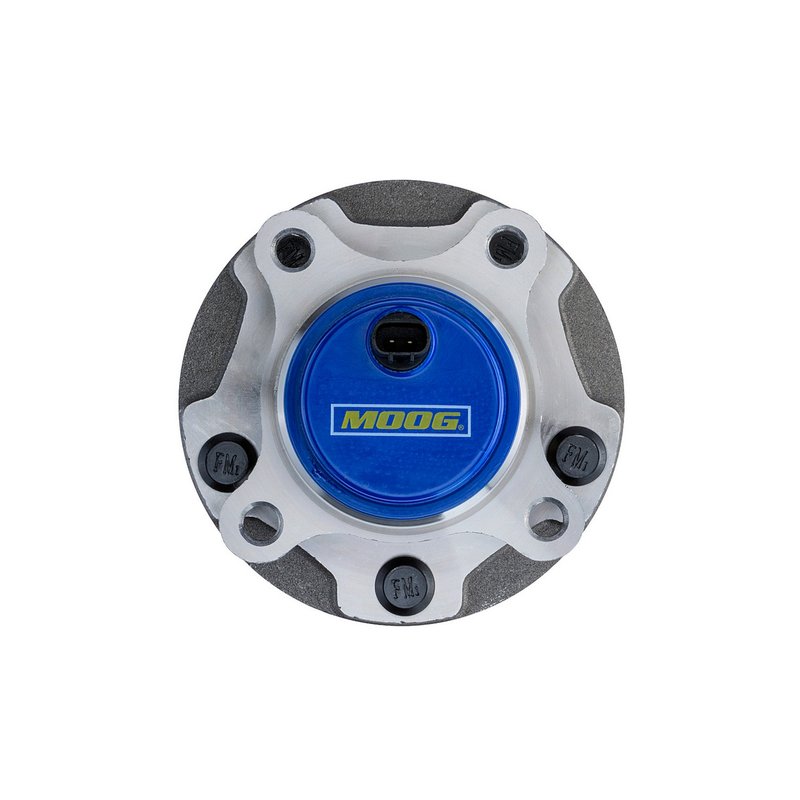

Moog 513372 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Lexus IS

Moog 513372 is a front wheel bearing and hub assembly built for select Lexus IS applications. It combines the hub, bearing, and ABS sensor in one service part to support a clean replacement on vehicles that need precise wheel mounting and reliable sensor integration.

Compatible with 2014-2020 Lexus IS250, IS350, IS200t, and IS300 front applications, this assembly is built around the dimensions and mounting points required for the listed vehicles. The Moog 513372 is a direct-fit service part for front-end hub replacement on Lexus IS models.

Key Features

• Front wheel bearing and hub assembly for select Lexus IS models
• ABS sensor included for integrated wheel speed signal service
• 5 wheel studs with a 114.3 mm bolt circle diameter
• 4 flange bolt holes for secure mounting
• Wheel pilot diameter: 60.000 mm
• Brake pilot diameter: 62.000 mm
• Hub pilot diameter: 73.900 mm
• Flange diameter: 140.000 mm
• Flange offset: 55.100 mm

Detailed Description

Moog 513372 is engineered as a front wheel bearing and hub assembly for Lexus IS fitments, including 2014-2020 Lexus IS350 front, 2016-2017 Lexus IS200t front, 2014-2015 Lexus IS250 front, and 2018-2020 Lexus IS300 front. The assembly is specified with five wheel studs, a 114.3 mm bolt circle, and an ABS sensor included, making it a practical replacement when servicing the front hub on these vehicles. Moog’s chassis-focused design approach emphasizes product-life improvements and easier installation and replacement, which is reflected in this service part.

This part cross-references OE numbers 43550-30070 and 43550-30071 for the same application.

What It Helps Resolve

• Front wheel bearing noise or rough rotation
• Wheel play or looseness at the hub
• ABS warning light concerns related to the front wheel speed sensor circuit
• Uneven wheel mounting caused by worn hub components
• Vibration or instability traced to a worn front hub assembly

Installation Notes and Tips

Verify the vehicle’s year, model, and front position before installation. Confirm the hub pilot, brake pilot, bolt circle, and stud count match the original part, and inspect the mating surfaces, axle hardware, and knuckle condition during service. Because the ABS sensor is included, make sure the connector routing and sensor seating are checked carefully during installation.

Quality Assurance

Moog is known in the chassis category for ongoing design updates that improve service life and simplify replacement. Part number 513372 is built for the listed Lexus IS front applications and follows the dimensional and fitment requirements shown above.
