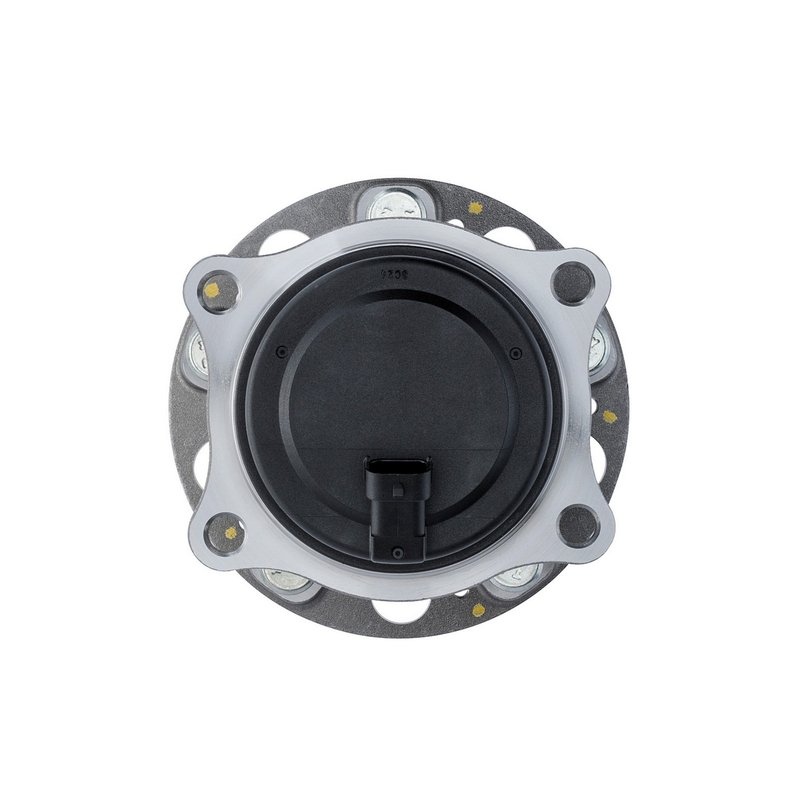

Moog 513376 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub for Genesis and Hyundai

MOOG 513376 is a front wheel bearing and hub assembly built for specific Genesis and Hyundai applications. It combines hub, bearing, and ABS sensor integration in one service part for a direct replacement on the front axle.

Key Features

• Front wheel bearing and hub assembly
• ABS sensor included
• 5 wheel studs with 4 flange bolt holes
• 114.3 mm bolt circle diameter and 139.1 mm flange diameter
• 96.9 mm hub pilot diameter, 66.9 mm wheel pilot diameter, and 68.9 mm brake pilot diameter
• Rectangle flange shape with 53.3 mm flange offset

Detailed Description

MOOG 513376 is engineered for front-wheel service on the 2017 Genesis G80 and 2015-2016 Hyundai Genesis. The assembly is specified with an integrated anti-lock brake sensor, helping maintain proper wheel speed signal function when replacing a worn front hub. MOOG’s design approach focuses on product-life improvements and easier installation and replacement, which is why this part is a practical OE-style choice for Genesis G80 front hub replacement and Hyundai Genesis front wheel bearing service. This part cross-references SKF BR930921 for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise or growling
• Wheel play or looseness at the hub
• ABS warning light caused by a failed hub sensor assembly
• Uneven hub wear affecting wheel mounting stability
• Vibration or roughness from a worn front bearing assembly

Installation Notes and Tips

Verify front position and vehicle application before installation. Inspect the knuckle, axle interface, brake components, and wheel mounting surfaces for wear or damage before fitting the new hub assembly. Confirm the ABS connector and sensor routing match the original setup on the vehicle. For best results, torque fasteners to the manufacturer’s specifications and check wheel bearing preload and brake rotor alignment after installation.

Quality Assurance

MOOG is known for ongoing design updates that improve durability and simplify service work. Part number 513376 is built to meet the needs of front hub replacement on the 2017 Genesis G80 and 2015-2016 Hyundai Genesis.
