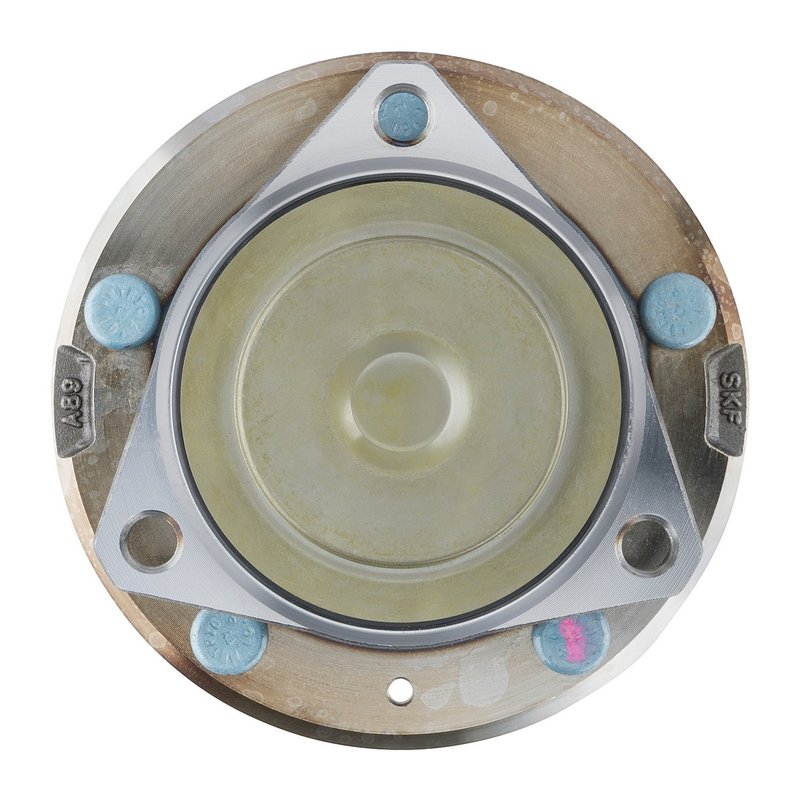

Moog 513378 Wheel Bearing and Hub Assembly - Front

Overview

MOOG 513378 is a wheel bearing and hub assembly for the front of select Chevrolet Corvette applications. It combines the hub, bearing, and ABS sensor integration in one service part for a direct replacement on the specified fitment.

Key Features

• Wheel bearing and hub assembly for front service
• Includes anti-lock brake sensor integration
• Five wheel studs with a triangle flange design
• 3-bolt flange mounting pattern
• Built with MOOG design enhancements focused on service life and easier replacement

Detailed Description

This MOOG wheel bearing and hub assembly, part number 513378, is engineered for 2014-2019 Chevrolet Corvette front applications. The assembly uses a 5-stud hub layout, a triangle flange, and a 3-bolt flange pattern with defined pilot and bolt-circle dimensions for proper fitment in the specified application. The integrated ABS sensor helps streamline replacement of the original hub assembly while maintaining the required wheel-end interface. MOOG 513378 is part of the brand’s Problem Solver line, which emphasizes design updates that improve durability and simplify service. This part cross-references SKF BR931002 for the same application.

Common Issues Addressed

• Wheel-end noise from a worn bearing
• Hub play or looseness at the wheel assembly
• ABS warning light caused by a failed sensor-integrated hub
• Uneven wheel-end operation from a damaged hub flange

Installation Notes

Verify the vehicle’s front hub configuration, bolt pattern, and pilot dimensions before installation. Confirm ABS sensor connection and wheel-end alignment during service. Use the listed fitment only for 2014-2019 Chevrolet Corvette front applications.

Quality Assurance

MOOG is known for ongoing chassis component design improvements that focus on longer service life and easier replacement. Part number 513378 is built to the specified OE-style application requirements for the listed fitment.
