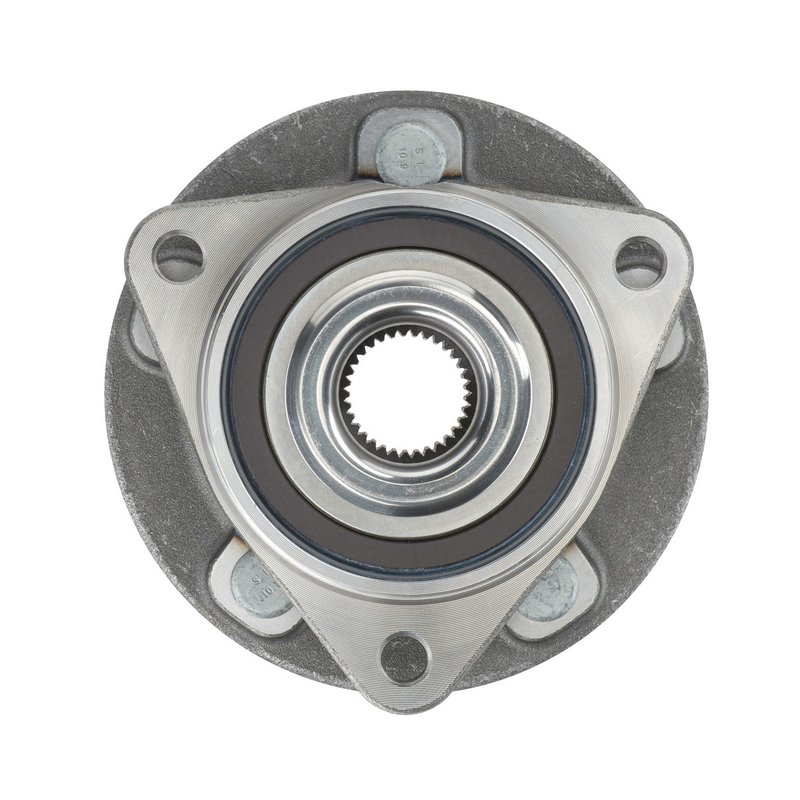

Moog 513403 Wheel Bearing and Hub Assembly - Front
| Brand | Moog 513403 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter | 105.200 |
| Brake Pilot Diameter | 59.900 |
| Flange Bolt Hole Quantity | 3 |
| Flange Diameter | 136.000 |
| Flange Offset | 42.000 |
| Hub Pilot Diameter | 88.000 |
| Spline Quantity | 33 |
| Wheel Pilot Diameter | 56.400 |
| Wheel Stud Quantity | 5 |
| Fits | Chevrolet · 13 vehicles |
Simplified installation. Design enhancements help make replacement easier.
Problem Solver heritage. MOOG is known for chassis-focused engineering improvements.
Wheel bearing and hub assembly. Combines hub and bearing functions in one unit.
Cross-references 13580304 for the same application. See all 1.
Front Wheel Bearing Hub Assembly for Bolt EV and Volt
MOOG 513403 is a front wheel bearing and hub assembly built for direct replacement on select Chevrolet electric and hybrid models. It combines the hub, bearing, and ABS sensor integration needed for a clean service repair on the front axle.
- Fits 2017-2023 Chevrolet Bolt EV, front
- Fits 2022-2023 Chevrolet Bolt EUV, front
- Fits 2016-2019 Chevrolet Volt, front
- 33 spline quantity for the specified driveline application
- 5 wheel studs with a 105.2 mm bolt circle diameter
- ABS sensor included for vehicles requiring wheel speed signal integration
- Hub pilot diameter: 88.0 mm
- Wheel pilot diameter: 56.4 mm
- Brake pilot diameter: 59.9 mm
- Flange diameter: 136.0 mm with 42.0 mm flange offset
Product Details
This MOOG wheel bearing and hub assembly is engineered with design updates that focus on longer service life and easier installation and replacement. For Chevrolet Bolt EV, Bolt EUV, and Volt front-end repairs, part number 513403 provides the bearing and hub interface in one serviceable assembly, helping restore proper wheel support and ABS signal function. This part cross-references OE number 13580304 for the same application.
Common Repair Uses
- Front wheel bearing noise or roughness
- Wheel play or looseness at the hub
- ABS warning light caused by hub sensor issues
- Vibration or uneven wheel rotation at the front axle
- Hub wear on Chevrolet Bolt EV, Bolt EUV, or Volt front suspension service
Installation Notes
Verify spline count, bolt circle diameter, pilot diameters, and flange dimensions before installation. Confirm front position fitment for the specific Chevrolet Bolt EV, Bolt EUV, or Volt model year listed above. Inspect the mating surfaces, axle interface, and ABS connector routing during service to ensure proper seating and sensor operation. Part number 513403 should be matched to the vehicle’s original hub specifications before final assembly.
Quality Assurance
MOOG is known for ongoing design improvements that extend product life and simplify replacement work. Part number 513403 reflects that service-focused approach for front hub repair on the listed Chevrolet applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Chevrolet | Bolt EUV | Front | — |
| 2023 | Chevrolet | Bolt EV | Front | — |
| 2022 | Chevrolet | Bolt EUV | Front | — |
| 2022 | Chevrolet | Bolt EV | Front | — |
| 2021 | Chevrolet | Bolt EV | Front | — |
| 2020 | Chevrolet | Bolt EV | Front | — |
| 2019 | Chevrolet | Bolt EV | Front | — |
| 2019 | Chevrolet | Volt | Front | — |
| 2018 | Chevrolet | Bolt EV | Front | — |
| 2018 | Chevrolet | Volt | Front | — |
| 2017 | Chevrolet | Bolt EV | Front | — |
| 2017 | Chevrolet | Volt | Front | — |
| 2016 | Chevrolet | Volt | Front | — |
