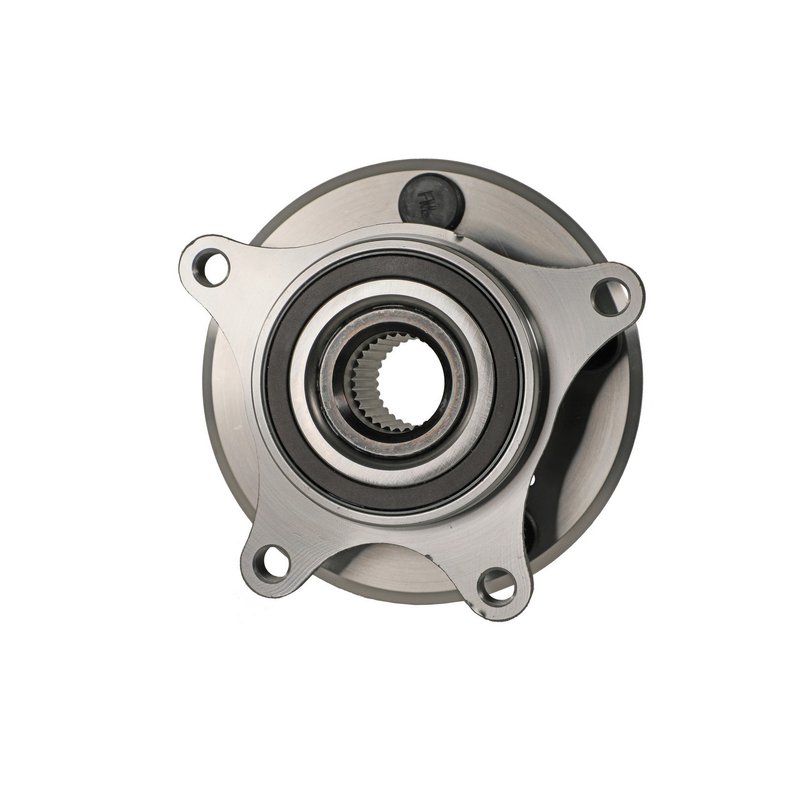

Moog 513421 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub for Honda Civic

Moog 513421 is a front wheel bearing and hub assembly for 2017-2021 Honda Civic models. It combines hub, bearing, and ABS sensor integration in one service part for a direct replacement on the front axle.

Key Features

• Fits 2017-2021 Honda Civic, front
• Wheel bearing and hub assembly with 30 splines
• Anti-lock brake sensor included
• 5 wheel studs with 4 flange bolt holes
• Hub pilot diameter: 91.020 mm
• Wheel pilot diameter: 64.020 mm
• Brake pilot diameter: 70.040 mm
• Bolt circle diameter: 120.100 mm
• Flange diameter: 152.190 mm
• Flange offset: 47.500 mm

Detailed Description

Moog 513421 is built for front-wheel service on the Honda Civic and is engineered with design updates that focus on longer service life and easier replacement. The assembly includes the ABS sensor and uses the specified hub and flange dimensions for a precise fit on 2017-2021 Honda Civic front applications. This part cross-references Honda OE number 44200TGHA11 for the same application. Moog 513421 is a practical choice when replacing a worn front hub on a Honda Civic with symptoms tied to bearing wear, wheel-end looseness, or ABS-related wheel speed signal issues.

What It Is Used For

• Front wheel bearing noise or growling from the wheel end
• Excessive play or looseness at the front hub
• ABS warning light caused by a failing wheel speed sensor circuit
• Uneven wheel rotation or roughness during inspection
• Restoring proper wheel mounting and hub alignment on a Honda Civic

Installation Notes and Tips

Verify the vehicle is a 2017-2021 Honda Civic with front hub service before ordering. Confirm spline count, bolt circle diameter, and pilot diameters against the original part to ensure correct fitment. Clean the mounting surface thoroughly and inspect related suspension and brake components for wear before installing the new hub assembly.

Quality Assurance

MOOG is known for continual design improvements that simplify installation and extend product life. Part number 513421 is built to meet the dimensional and functional requirements of the listed Honda Civic front application.
