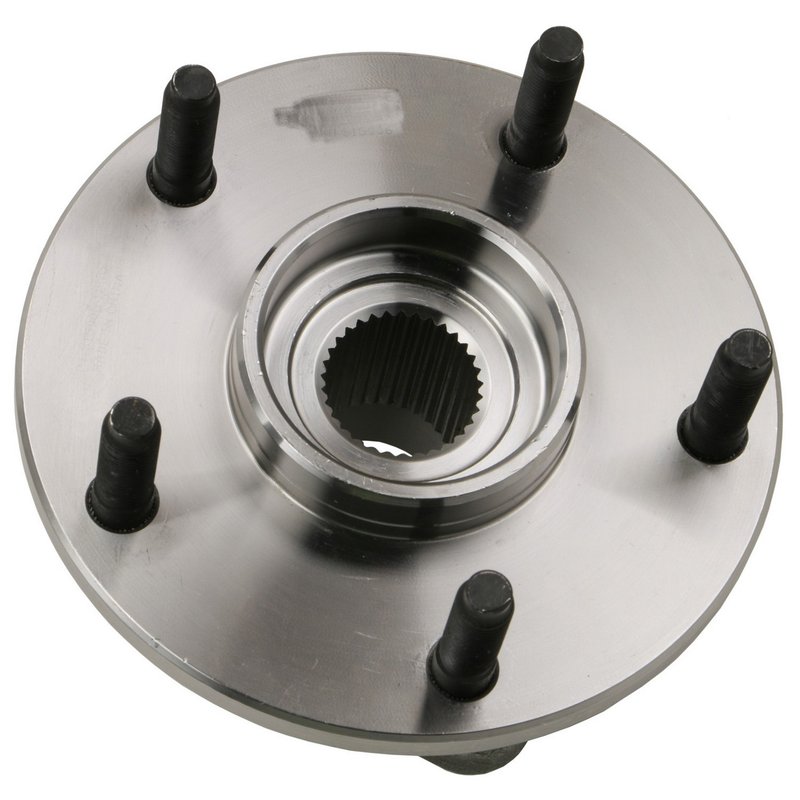

Moog 515006 Wheel Bearing and Hub Assembly - Front
| Brand | Moog 515006 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | No |
| Bolt Circle Diameter | 5.500 |
| Bolt Circle Diameter | 139.700 |
| Brake Pilot Diameter | 3.085 |
| Flange Bolt Hole Quantity | 3 |
| Flange Diameter | 6.780 |
| Flange Offset | 2.000 |
| Flange Shape | MODIFIED TRIANGLE |
| Hub Pilot Diameter | 3.850 |
| Spline Quantity | 33 |
| Wheel Pilot Diameter | 3.055 |
| Wheel Stud Quantity | 5 |
| Fits | Dodge · 6 vehicles |
Fast, hassle-free installation. MOOG problem-solving design helps make the job go smoothly.
Rigorous testing. Built for reliable performance you can count on.
Wheel bearing and hub assembly. A complete hub solution for driveline and axle service.
Cross-references Centric Parts 400.67005, Centric Parts 400.67005E and GMB 725-0011 for the same application. See all 13.
MOOG 515006 Front Wheel Hub Assembly
MOOG 515006 is a front wheel bearing and hub assembly for the 1994-1999 Dodge Ram 1500. Built with durable materials and tested for consistent performance, it is made for drivers replacing a worn front hub on a Ram 1500 with a direct-fit service part.
With a 33-spline design, 5 wheel studs, a 3-bolt flange, and a modified triangle flange shape, this hub assembly supports a straightforward front-end repair. The 5.500-inch bolt circle diameter and 6.780-inch flange diameter help match the original mounting layout on the applicable Dodge Ram 1500 front application.
Key Features
- Front wheel bearing and hub assembly for 1994-1999 Dodge Ram 1500
- MOOG part number 515006
- 33-spline hub design
- 5 wheel studs with 3 flange bolt holes
- Modified triangle flange shape for the listed application
- Wheel pilot diameter: 3.055 inches
- Brake pilot diameter: 3.085 inches
- Hub pilot diameter: 3.850 inches
- Flange offset: 2.000 inches
- Bolt circle diameter: 5.500 inches / 139.700 mm
- Anti-lock brake sensor not included
Detailed Description
MOOG 515006 is a front wheel bearing and hub assembly engineered for the 1994-1999 Dodge Ram 1500, front. It is built around the hub dimensions and mounting pattern needed for this application, including the 33-spline configuration, 5-lug wheel mounting, and the specified pilot and flange measurements. This makes it a practical replacement when servicing a worn or noisy front hub on a Dodge Ram 1500.
This part cross-references SKF BR930256 for the same application. MOOG hub assemblies are known for using tested materials and service-focused design details that help simplify replacement work. The part number 515006 is also referenced across multiple aftermarket catalogs, including Raybestos Brakes 715006 and Centric Parts 400.67005.
What It Helps Fix
- Front wheel bearing noise or roughness
- Excessive play in the front hub area
- Vibration or looseness from a worn hub assembly
- Improper wheel mounting caused by hub wear
- Service issues on a 1994-1999 Dodge Ram 1500 front hub
Installation Notes
Verify spline count, flange dimensions, bolt circle diameter, and wheel pilot measurements before installation. This front hub assembly does not include an anti-lock brake sensor, so confirm the vehicle’s ABS setup before ordering. For best results, inspect related front-end components, clean the mounting surfaces, and follow factory torque specifications during installation.
Quality Assurance
MOOG backs this hub assembly with superior materials and rigorous testing to support reliable operation in the listed application. The 515006 is built to meet the demands of front-wheel service on the 1994-1999 Dodge Ram 1500.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Dodge | Ram 1500 | 4WD | Front | — |
| 1998 | Dodge | Ram 1500 | 4WD | Front | — |
| 1997 | Dodge | Ram 1500 | 4WD | Front | — |
| 1996 | Dodge | Ram 1500 | 4WD | Front | — |
| 1995 | Dodge | Ram 1500 | 4WD | Front | — |
| 1994 | Dodge | Ram 1500 | 4WD | Front | — |
