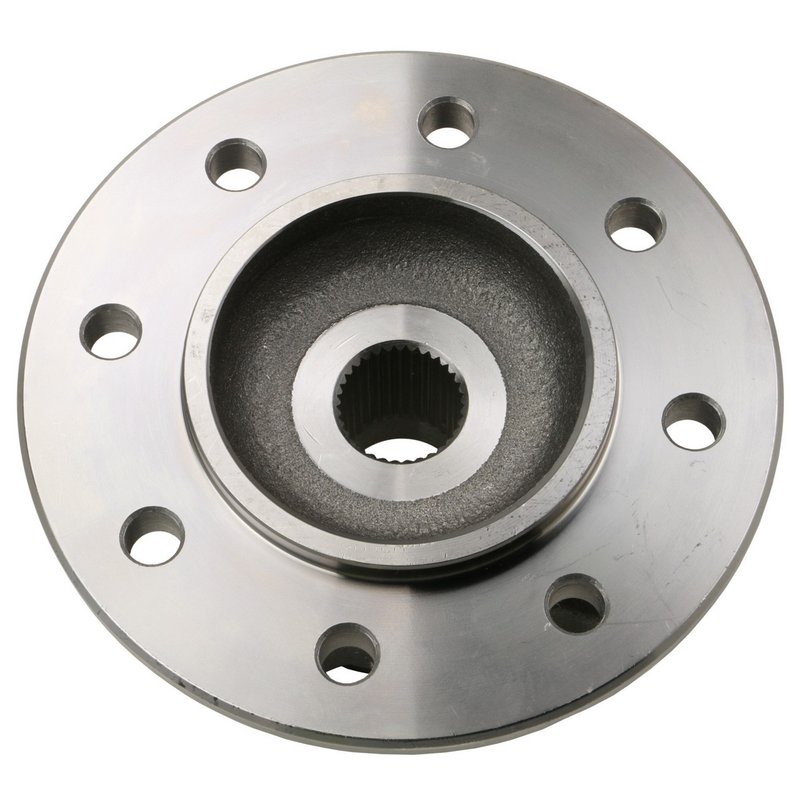

Moog 515012 Wheel Bearing and Hub Assembly - Front
| Brand | Moog 515012 |
|---|---|
| Position | Front |
| Anti Lock Brake Sensor Included | No |
| Bolt Circle Diameter | 6.500 |
| Bolt Circle Diameter | 165.100 |
| Brake Pilot Diameter | 4.770 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter | 8.420 |
| Flange Offset | 2.965 |
| Flange Shape | MODIFIED CIRCLE |
| Hub Pilot Diameter | 4.484 |
| Spline Quantity | 33 |
| Wheel Pilot Diameter | 4.770 |
| Wheel Stud Quantity | 8 |
| Wheel Stud Size | 15.3 |
| Fits | Dodge · 6 vehicles |
Fast, hassle-free installation. MOOG problem-solving innovations simplify the job.
Superior materials. Built with rigorous testing for reliable performance.
Wheel bearing and hub assembly. A complete hub assembly for driveline and axle service.
Cross-references Centric Parts 400.67009, Centric Parts 400.67009E and GMB 720-0015 for the same application. See all 11.
MOOG 515012 Front Wheel Bearing Hub
The MOOG 515012 wheel bearing and hub assembly is built for front-end service on select Dodge Ram 2500 applications. It combines durable materials with tested fit and function to support smooth wheel rotation and dependable hub performance.
Compatible with 1994-1999 Dodge Ram 2500 front applications, this hub assembly is a direct-fit service part for trucks using a 4-hole rectangular flange. The MOOG 515012 is a practical choice when replacing a worn hub on a Dodge Ram 2500 front axle.
Key Features
- Wheel bearing and hub assembly for front axle service
- 33-spline hub design
- 4 flange bolt holes with modified circle flange shape
- 8 wheel studs with 15.3 wheel stud size
- Wheel pilot diameter: 4.770
- Brake pilot diameter: 4.770
- Hub pilot diameter: 4.484
- Bolt circle diameter: 165.100 mm / 6.500 in
- Anti-lock brake sensor not included
Product Details
MOOG 515012 is engineered as a front wheel bearing and hub assembly for 1994-1999 Dodge Ram 2500 trucks. The assembly uses a 33-spline configuration, an 8-stud layout, and a 4-hole rectangular flange note for the listed fitment. MOOG focuses on consistent dimensions and service-friendly design to help reduce installation issues and support proper wheel mounting on the front of the vehicle.
This part cross-references Timken HA590020 and SKF BR930405 for the same application.
Common Problems This Part Can Address
- Front wheel bearing noise or rough rotation
- Excessive hub play or looseness at the wheel end
- Uneven wheel mounting caused by a worn hub assembly
- Vibration or instability related to hub wear
- Service replacement for a damaged front hub on a Dodge Ram 2500
Installation Notes and Tips
Verify the flange bolt pattern, spline count, and pilot diameters before installation. This assembly does not include an anti-lock brake sensor, so reuse or transfer related components only if they are serviceable and specified for your vehicle. Confirm front-axle application and match the listed 4-hole rectangular flange note for 1994-1999 Dodge Ram 2500 fitment.
Quality Assurance
MOOG hub assemblies are backed by tested materials and validation procedures intended to support reliable service life and consistent fit. The brand’s problem-solving design approach is aimed at making front hub replacement more straightforward on applications such as the Dodge Ram 2500.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Dodge | Ram 2500 | 4WD | Front | Fitment: 4-hole rectangular flange |
| 1998 | Dodge | Ram 2500 | 4WD | Front | Fitment: 4-hole rectangular flange |
| 1997 | Dodge | Ram 2500 | 4WD | Front | Fitment: 4-hole rectangular flange |
| 1996 | Dodge | Ram 2500 | 4WD | Front | Fitment: 4-hole rectangular flange |
| 1995 | Dodge | Ram 2500 | 4WD | Front | Fitment: 4-hole rectangular flange |
| 1994 | Dodge | Ram 2500 | 4WD | Front | Fitment: 4-hole rectangular flange |
