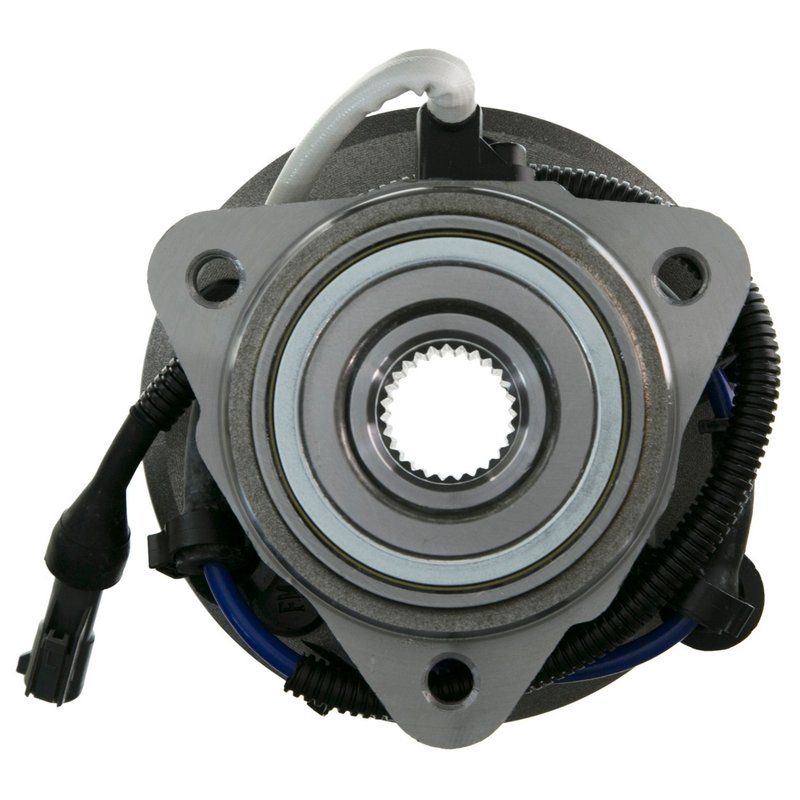

Moog 515013 Wheel Bearing and Hub Assembly - Front

Moog 515013 Wheel Bearing and Hub Assembly Overview

The Moog 515013 wheel bearing and hub assembly is engineered for reliable performance in Ford and Mazda trucks, including the B3000, B4000, and Ranger models. Designed to meet OEM specifications, this assembly ensures proper fit and function for your vehicle's driveline system.

• 27 spline quantity for secure axle engagement
• 5 wheel studs for stable wheel mounting
• Triangular flange shape with 3 bolt holes
• Wheel pilot diameter of 2.780 inches for precise wheel alignment
• Brake pilot diameter of 2.780 inches for accurate brake component fit
• Hub pilot diameter of 3.940 inches to maintain hub centering
• Flange offset of 2.230 inches and flange diameter of 5.890 inches
• Bolt circle diameter options of 114.3 mm (4.5 inches)
• Includes anti-lock brake sensor for ABS functionality

Technical Details and Specifications

The Moog 515013 wheel bearing and hub assembly is designed with a 27-spline axle interface, ensuring a secure connection to the driveline. The assembly features a triangular flange shape with three bolt holes, supporting a bolt circle diameter of 114.3 mm (4.5 inches). It includes five wheel studs, providing a stable mounting surface for the wheel. The wheel and brake pilot diameters are both 2.780 inches, which helps maintain proper alignment of the wheel and brake components. The hub pilot diameter measures 3.940 inches, contributing to accurate hub centering and reducing vibration. Additionally, the flange offset is 2.230 inches, and the flange diameter is 5.890 inches, matching OEM specifications for the Ford and Mazda trucks it fits. This assembly also includes an anti-lock brake sensor, which is essential for vehicles equipped with ABS systems.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following vehicles:

• Ford B3000
• Ford B4000
• Ford Ranger
• Mazda B3000
• Mazda B4000
• Mazda Ranger

Part number 515013 is specifically designed to meet the fitment requirements of these models, ensuring proper installation and performance.

Common Issues Addressed by This Assembly

• Wheel bearing noise or roughness during driving
• Excessive wheel play or looseness
• ABS sensor malfunction or warning lights
• Vibration or wobbling at the wheel hub
• Uneven brake wear due to misalignment

Installation Notes and Tips

When installing the Moog 515013 wheel bearing and hub assembly, ensure the following:

• Verify compatibility with your specific Ford or Mazda model and year
• Use proper torque specifications for flange bolts and wheel studs
• Inspect the axle splines and clean mating surfaces before installation
• Confirm ABS sensor connection is secure and functioning
• Check wheel pilot and brake pilot diameters for proper fit

Quality Assurance and Warranty

Moog wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards. The 515013 assembly undergoes rigorous testing to ensure durability and performance under normal operating conditions. This product includes a limited warranty against defects in materials and workmanship, providing confidence in its reliability for Ford and Mazda B3000, B4000, and Ranger vehicles.
