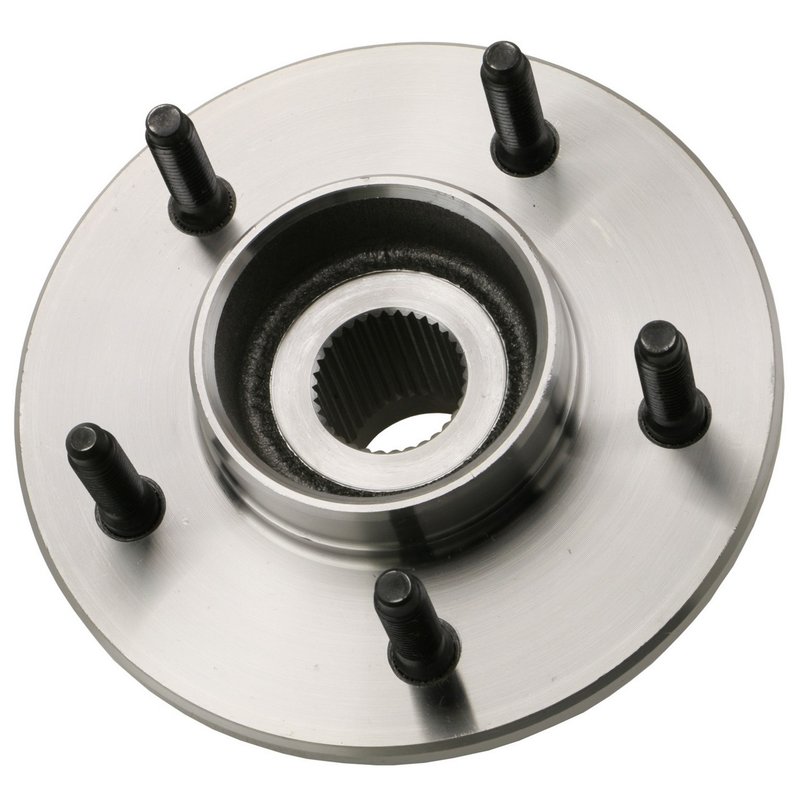

Moog 515017 Wheel Bearing and Hub Assembly - Front

Moog 515017 Wheel Bearing and Hub Assembly Overview

The Moog 515017 wheel bearing and hub assembly is designed specifically for Ford F-150 models, providing reliable driveline performance. This assembly features precise dimensions and robust construction to ensure proper fit and function in your vehicle's front or rear axle.

• 33 spline quantity for secure axle engagement
• Triangular flange shape with 3 flange bolt holes
• 5 wheel studs for stable wheel mounting
• Wheel pilot diameter of 3.415 inches and brake pilot diameter of 3.542 inches
• Hub pilot diameter measures 3.910 inches for accurate hub alignment
• Flange offset of 1.940 inches and flange diameter of 7.226 inches
• Bolt circle diameter of 135.000 mm (5.316 inches)
• Does not include anti-lock brake sensor

Detailed Description of Moog 515017 Hub Assembly

This Moog wheel bearing and hub assembly (part number 515017) is engineered to meet the exact specifications required for Ford F-150 trucks. The 33 spline axle interface ensures a secure connection to the driveline, while the 5 wheel studs provide a stable mounting surface for the wheel. The triangular flange shape with 3 bolt holes offers a precise fit, maintaining proper wheel alignment and balance. The pilot diameters for the wheel, brake, and hub are carefully sized to ensure seamless integration with the vehicle’s braking and wheel systems. The flange offset and diameter are designed to maintain correct wheel positioning relative to the suspension and steering components.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with Ford F-150 models requiring a 33 spline, 5-stud hub with the specified flange and pilot dimensions. It is suitable for use in driveline and axle repairs where the original hub assembly needs replacement due to wear or damage.

• Eliminates wheel bearing noise and vibration
• Resolves wheel hub looseness or play
• Corrects uneven tire wear caused by hub misalignment
• Restores proper wheel mounting and brake rotor alignment
• Addresses ABS sensor issues by replacing worn hub components (note: this part does not include an ABS sensor)

Installation Notes and Tips

When installing the Moog 515017 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Remove the old hub assembly carefully, noting the orientation of the flange and pilot diameters. Clean the mounting surface thoroughly before installing the new hub to prevent contamination and ensure proper seating. Torque all flange bolts to manufacturer specifications and verify wheel stud tightness. Since this assembly does not include an anti-lock brake sensor, retain or transfer the existing sensor if applicable.

Quality Assurance and Warranty

Moog manufactures the 515017 wheel bearing and hub assembly to meet or exceed OEM standards for durability and performance. Each unit undergoes rigorous quality control to ensure precise fitment and long service life. While specific warranty details may vary, Moog typically offers a limited warranty covering defects in materials and workmanship. Consult product documentation or Moog directly for exact warranty terms.
